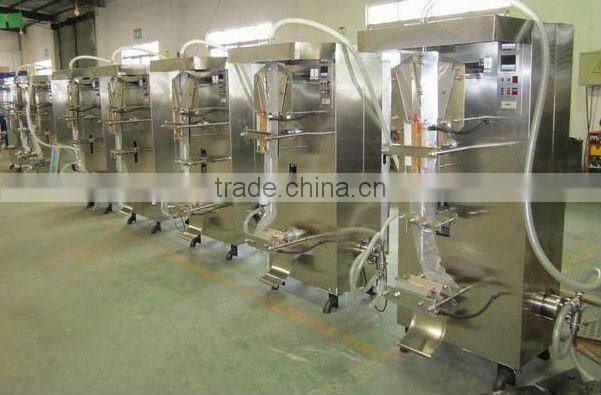

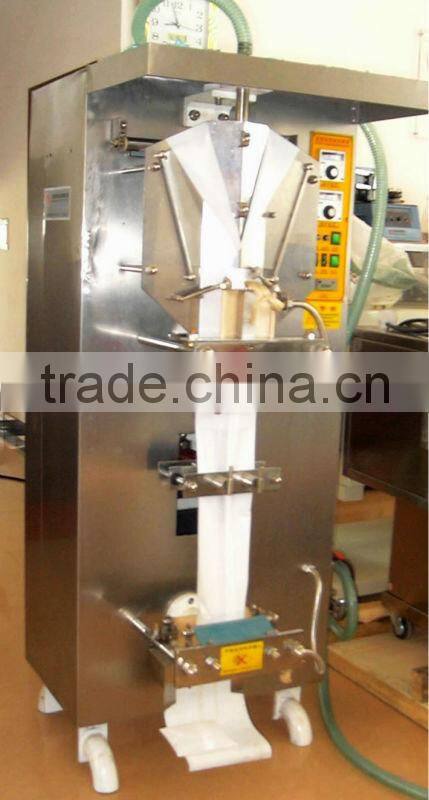

Mars Pouch Filling Packing Machine
1) Main Functions:
This machine is high precision packing machine and the most advanced liquid compound packing machine, which is standing, three sides sealing and intermittent.
With optical sensor, suitable for sachet with LOGO, available for accurate cutting and packing for plastic with logo.
It can automatically complete Bag-making, filling, sealing, printing, cutting and counting .Controlled by microprocessor.
It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, mineral water and liquid chemical products.
2) Technical Specification for Pouch Filling Packing Machine :
2.1. Yield capacity:1500~2000B/H
2.2. Packing volume:100~500ml/B
2.3. Filling precision:±1%
2.4. Film width:240mm or 320mm(optional or choose others)
Film thickness: 0.05-0.12mm
2.5 Power:AC 220V/50HZ ,2kw
2.6. The weight of the machine:370kg
2.7. Dimension(L×W×H):820×780×1900MM
3) Function for Pouch Filling Packing Machine
1,sack molding
2,UV sterilize
3,Vertical cutting hot seal
4,Date composed
5,beeline tows sack
6,ration filling
7,Horizonal cutting hot seal
8,Cutting sack
9,count automatically
10, With optical sensor for accurate film cutting & packing
4) Electrical appliances components list
Num. |
Sign |
Qty. |
Item |
Spec. and model |
Memo |
1 |
FD |
2 |
screw fuse |
RFI-10A |
|
2 |
XWK |
2 |
Process switch |
JFXK1-441 |
|
3 |
K |
4 |
switch |
MK211B/n81 |
|
4 |
ZZ |
1 |
UV lamp tube |
ZWS series 15W/220V |
|
5 |
JC |
1 |
AC Contactor |
CJX2-0910 |
10A/220V |
6 |
JJ |
1 |
electromagnetic counter |
LFC-5 AC220V |
AC220V |
7 |
TE |
2 |
temperature controller |
PKC CH702 |
|
8 |
RE |
2 |
thermocouple |
EA2 |
(a set) |
9 |
SRM3 |
1 |
Tubiform Electro-heating element |
Φ20 stainless steel shell |
300W(vertical seal) |
10 |
SRM5 |
1 |
Tubiform Electro-heating element |
Φ20 stainless steel shell |
500W(horizonal seal) |
11 |
D |
|
motor |
220V/0.75KW |
|
12 |
Q |
1 |
Electricity-leakage protector |
DZ47LE-32 |
|
13 |
Stainless Steel Frame |
SS201/SS304 |
|||
We have more than 10 years design and production experience. We can produce a variety of filling machine. Looking forward to cooperate with you.
