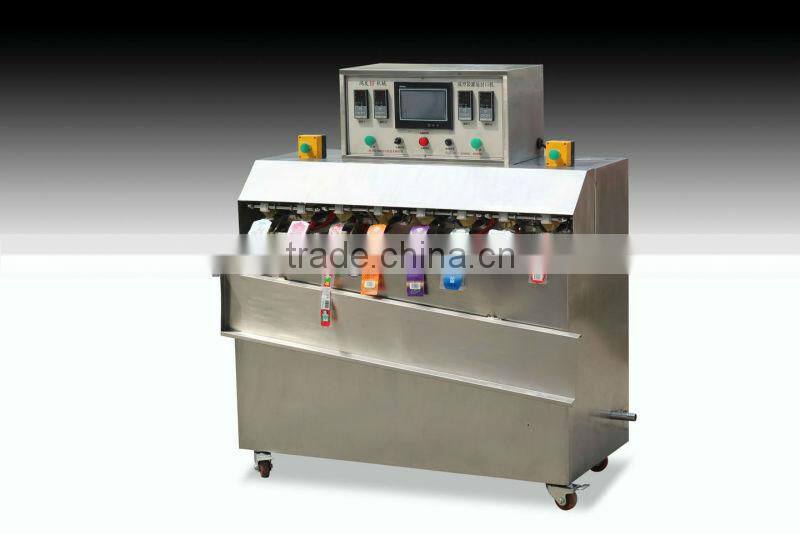

Plastic Sachet Filling And Sealing Machine

Name: Plastic Sachet Filling And Sealing Machine
Brand: Mars
SKU: 141356654
Availability: InStock

US$ 10,000 - 15,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Application:

Beverage

Packaging Type:

Bags, Bottles, Pouch, Stand-up Pouch

Zhangjiagang Mars Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Beverage

Packaging Type Bags, Bottles, Pouch, Stand-up Pouch

Packaging Material Glass, Paper, Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 380v 220v

Power 3.2Kw/h

Place of Origin Jiangsu, China

Brand Name Mars

Model Number XZG-4000

Dimension(L*W*H) 3,000*1,500*1,900mm

Weight 4250kg

Certification ISO CE

After-sales Service Provided Engineers available to service machinery overseas

Plastic sachet filling and sealing machine

Features.

1. auto loading spout bag

2. Four-step piston filling device permits adjustment of filling quantity.

3. Stop working without pouch to protect the machine safely.

4. Auto putting cap

5. Auto screw cap

6. Auto outfeed

7. The machine has the advanced programming-controller from Japan and Frequency conversion system.

Main Parameters for Plastic Sachet Filling And Sealing Machine

Model	XZG-4000
Packaging Speed:	3,000-4,000 pcs / hour
Filling Volume:	50-300 ml
Power:	3-phase 4-line socket(380V50HZ)
Electric Machinery Power:	1.5kw
Heat Up Power:	1.6kw
Air Pressure:	0.5Mpa
Max.Air Consumption:	0.5m³/min
Timing Mode	Stepless speed regulating
Machine Dimension(LWH)	3,0001,5001,900mm
Package Dimension(LWH)	3,1501,7502,050mm
G.W.	450kg
N.W.	4250kg
Nte: All specifications, design and characteristics shown in the catalogue are subject to change without prior notice.
