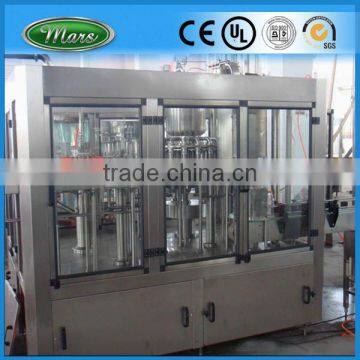

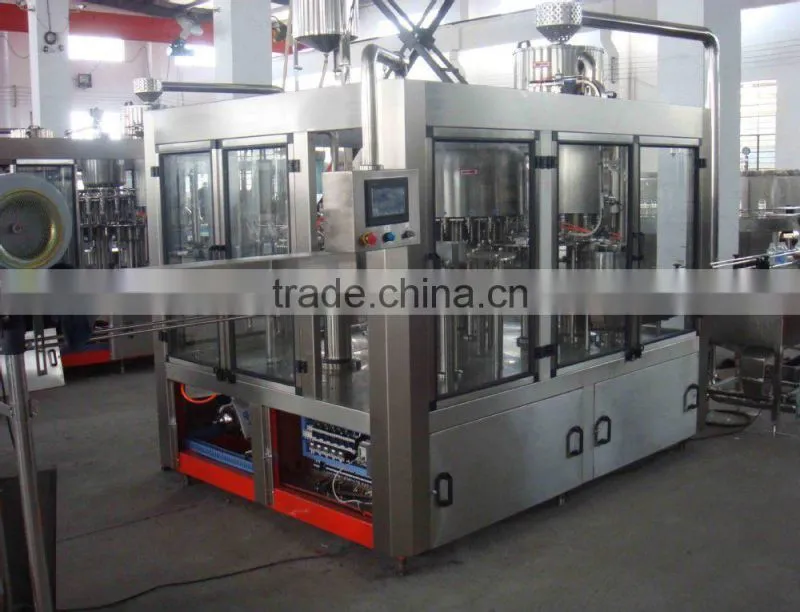

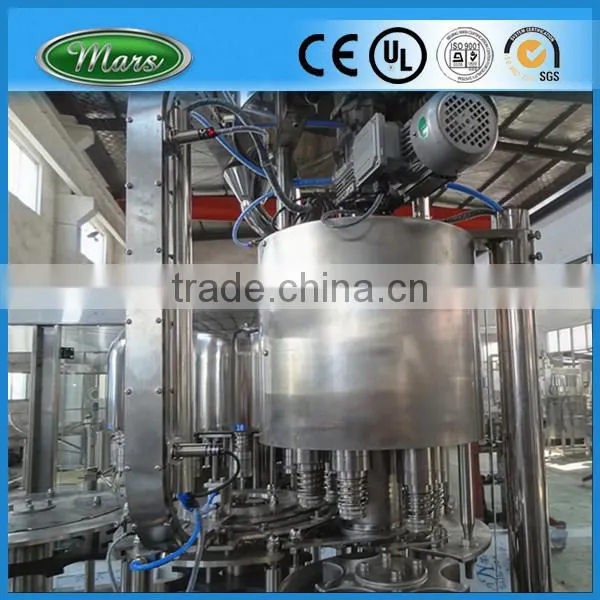

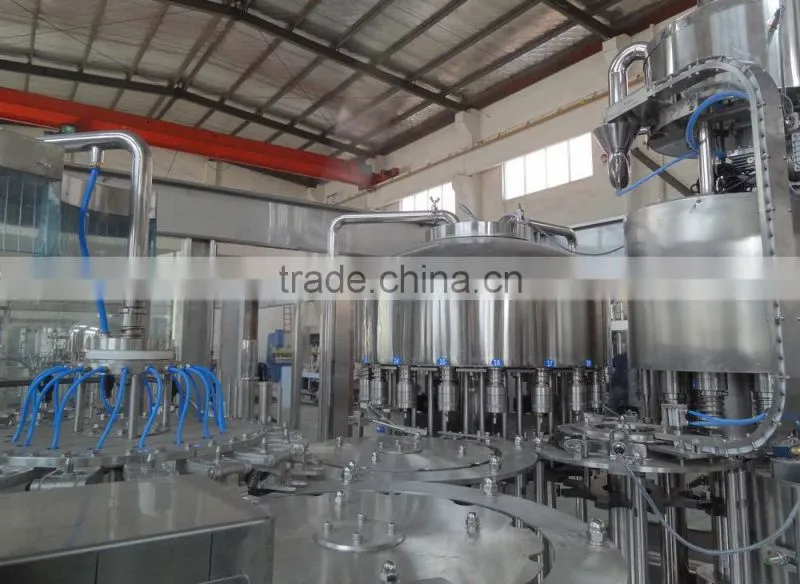

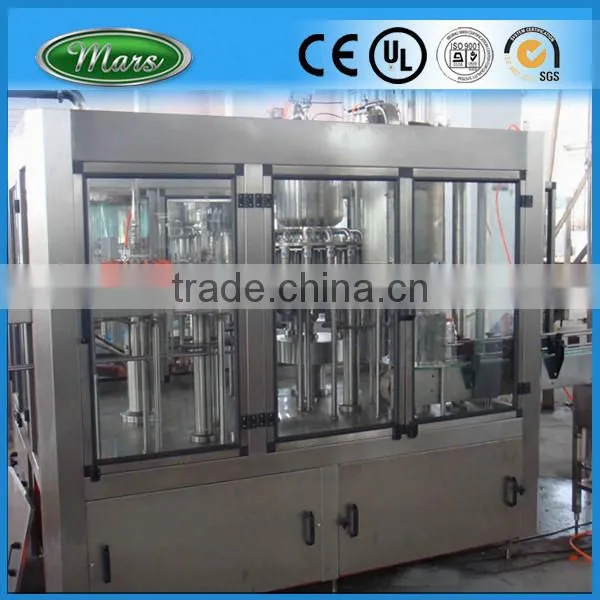

Mineral Water Filling Machine CE
US$ 20,000 - 21,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PET Bottle Drinking Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Piece -
Pure Water Filling MachineUS$ 69,800 - 70,000MOQ: 1 Piece
-
PET Bottle Mineral Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Piece
-
8000BPH Mineral Water Filling MachineUS$ 25,000 - 26,000MOQ: 1 Piece
-
0.5L Plastic Bottle Water Filling MachineUS$ 20,000 - 21,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220/380V
Power
4KW
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF18-18-6
Dimension(L*W*H)
2460x1720x2650mm
Weight
3500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
CE Mineral Water Bottling MachineProducts
Introduction:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
CE Mineral Water Bottling Machine Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Water filling Machine model detail
| Technical Data | ||||
| Model | CGF14/12/4 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 |
| The number of Washing, Filling, Capping | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
|
Producing capacity; The number of bottle(600ml)/hour |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
|
Overall dimension (mm) (LxWxH) |
2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF40/40/10 | CGF48/48/12 | CGF60/60/15 |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
|
Producing capacity: The number of bottle(600ml)/hour |
16000-20000 | 20000-24000 | 25000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
|
Overall dimension (mm) (LxWxH) |
4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
