Help CenterFilling Machines For Sale
US$ 24,000 - 27,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Glass, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220v-415v
Power
3.13Kw
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF18-18-6
Dimension(L*W*H)
2470*1970 *2350mm
Weight
3500 KG
Certification
ISO,CE,BV
After-sales Service Provided
Engineers available to service machinery overseas
Filling Machines For Sale
It is used for packing pure water, mineral water in PET bottles. we can supply the whole line. we also can supply the filling machine for cola or juice.
Water filling machine Products Introduction:

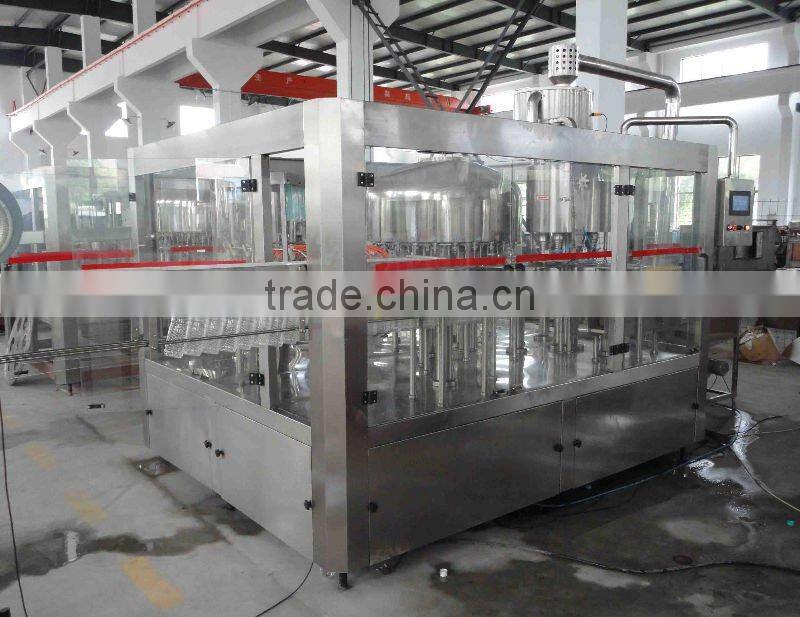

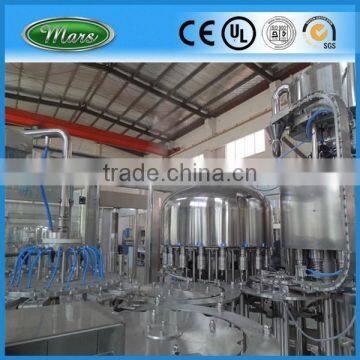

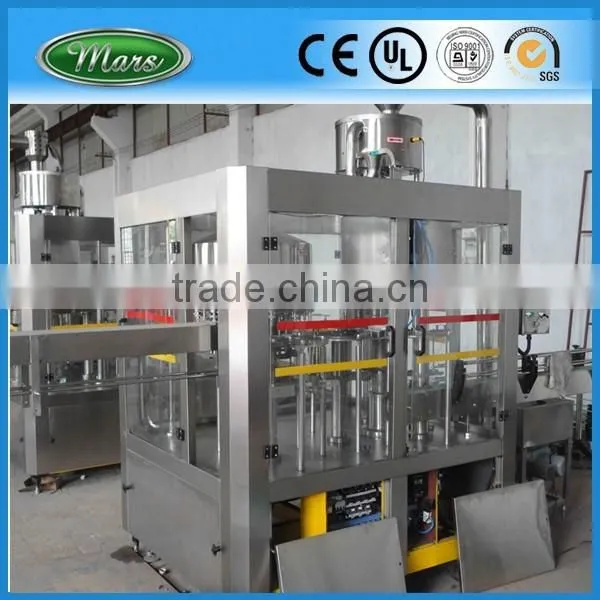

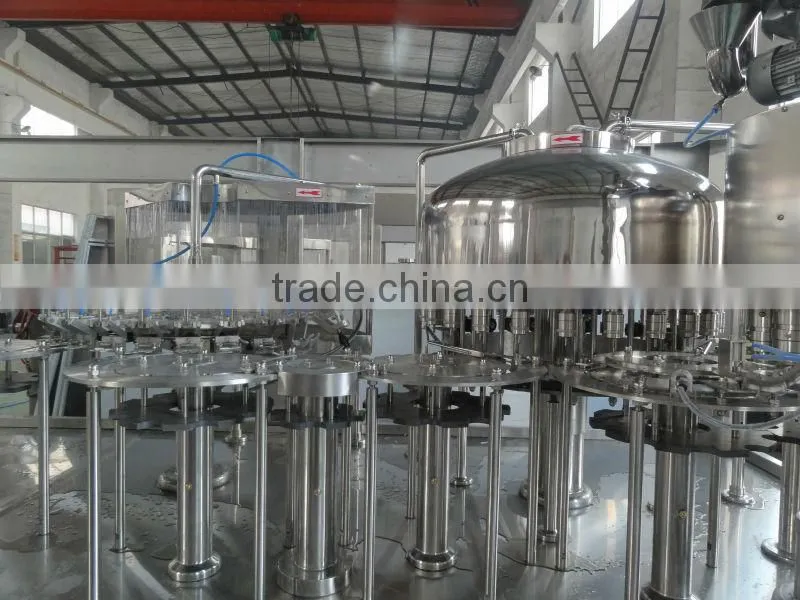

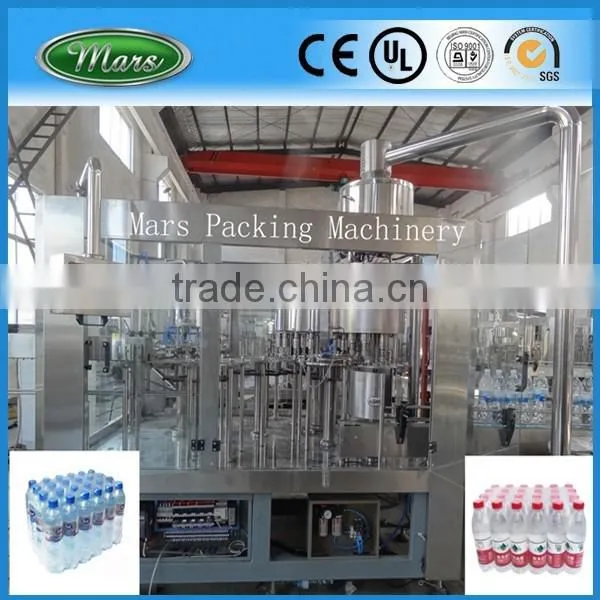

This RCGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled juice, tea and other non-gas beverage machinery. The RCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Water filling machine Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

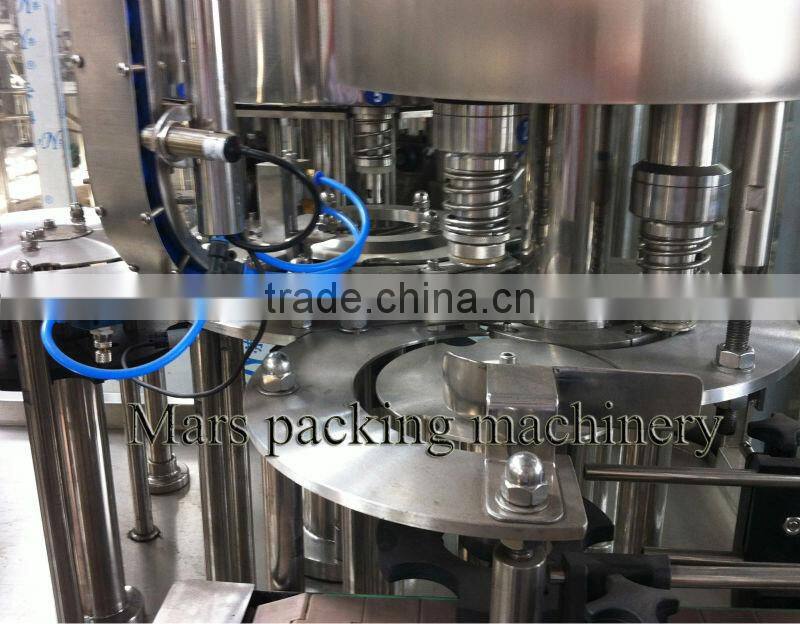

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

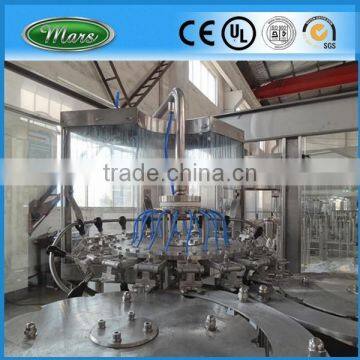

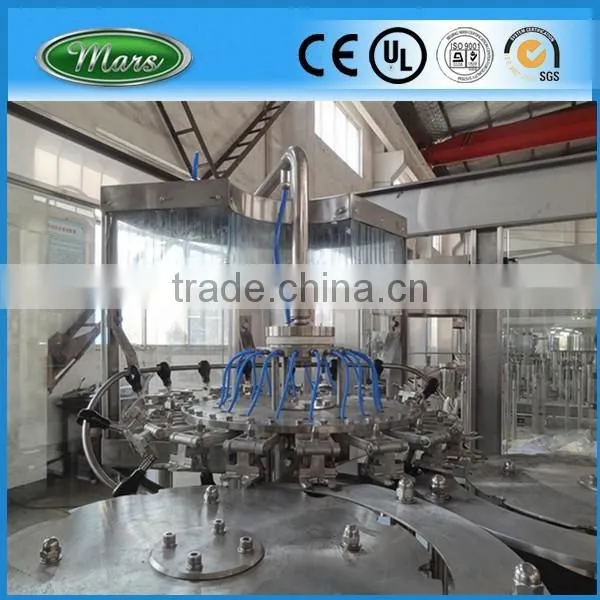

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

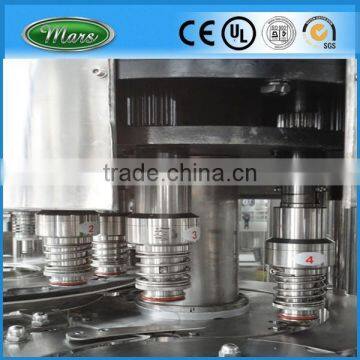

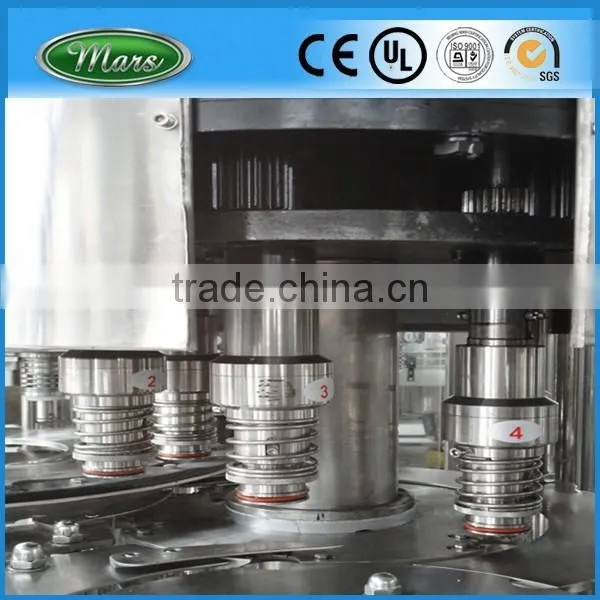

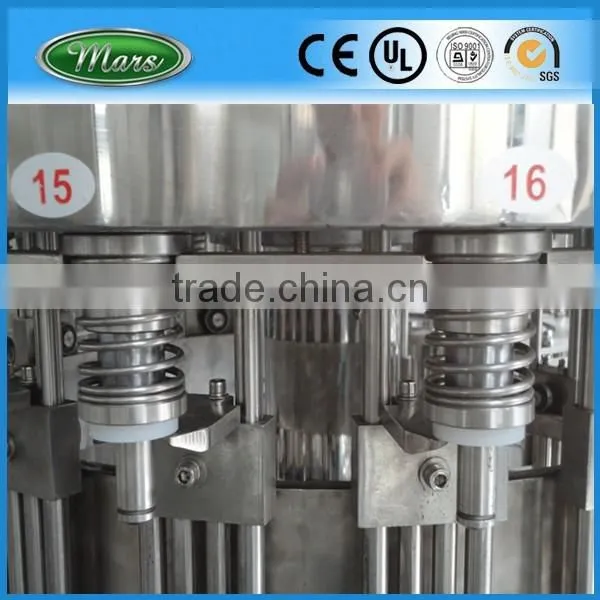

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Water filling machine Technical parameters:
Model: |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/12 |
CGF40/40/12 |
CGF48/48/12 |
Production Capacity:500ml(B/h) |
4000 |
6000 |
10000 |
14000 |
17000 |
20000 |
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
Suitable Cap Standard:(mm) |
φ50-φ110 |
|||||
Filling Pressure:(Mpa) |
0.2-0.3 |
|||||
Filling Model: |
by Gavity |
|||||
Power:(KW) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Filling Temperature: |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Overall SizeL×W×H(mm) |
2400×1670 |
2470×1970 |
2865×2170 |
3700×2570 |
3800×2950 |
4500×3400 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |
