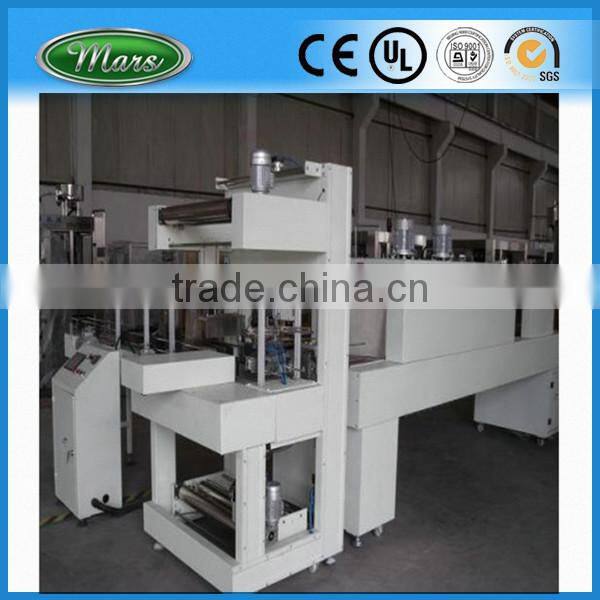

PE Film Automatic Heat Shrink Wrapping Machine / Bottle Packing Machine
Description and features:
1. frequency converter speed adjust,two segment convey device.
2. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
3. Proximity switch control film length.
4. Touch screen, PLC system greatly increases facility movement reliability.
5. double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
6. Super big wind-volume cooling system, ensure quickly get into shape.
7. Anti-high temperature Teflon convey belt, convey steadily, high-strength anti-abrasion.
8. Frequency limitless speed adjust convey belt frame.
9. convey belt height can make according client requirement, adjust range:±50mm
10. Bottle convey machine can meet with client bottle forward direction requirement, can lengthen or shorten.
11. Wing stainless steel heating system, endurance.
12. Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
PE Film Automatic Heat Shrink Wrapping Machine / Bottle Packing Machine
Main technical Parameter
Model: SP-10
Speed: 8-12 packages
Maximum power: 20KW
Working air pressure:0.6 MPa
Air compressor requirement: exhaust pressure: 0.8MPa, flux: 0.25m3/min
All kinds of thermal shrinkage film for example: PE,PP,PVC,POF
Width of wrapping film:≤600mm
Thickness of wrapping film: 0.03-0.15mm
Feeding conveyor height: 920mm(adjustable)
Length of feeding conveyor:2600mm
Outlook dimension of equipment: 5050*3300*2100 mm
Total Weight of equipment: 1200kg
Maximum packing dimension:600*400*350 mm( big diameter bottle could be 450*300*400mm)
The length of thermal sealing & cutting knife: 700mm
Thermal shrinkage temperature: 160-250 °C
Normal bottle quantities in one package(round shape or rectangle)
4 rows 4*6 4*5 4*4 applicable bottle dimension: Φ40-Φ73mm
3 rows 3*4 3*3 3*5 applicable bottle dimension: Φ73-Φ98mm
2 rows 2*3 2*4 applicable bottle dimension: Φ98-Φ140mm
1 row 1*2 applicable bottle dimension: Φ140-Φ300mm
PE Film Automatic Heat Shrink Wrapping Machine / Bottle Packing Machine
Main Elements
no | Name | specification | number | brand | ||
1 | board production component | |||||
2 | Plant metal component | |||||
3 | pneumatic component | 1 | Taiwan Airtec | |||
4 | Electric controlling component and accessory | |||||
Photoelectric switch | 4 |
South Korea Autonics
| ||||
Proximity switch | 2 | South Korea Autonics | ||||
PLC | 1 | Thinget | ||||
Touch screen | 1 | Thinget | ||||
Frequency converter | 3 | Taiwan Telta | ||||
AC contactor | 3 | France Schneider | ||||
Mid-relay | 8 | France Schneider | ||||
PE Film Automatic Heat Shrink Wrapping Machine / Bottle Packing Machine
