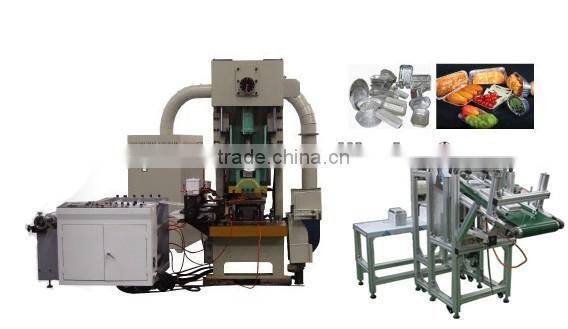

Aluminum Foil Food Container Making Machine Line
Features & Usages:
- Feeding, punching, scrap, container collecting automatically.
- Very reliable as the controlling system adopts Siemens CPU 224 programmable logic controller (PLC).
- It is integration of Gas & Electrical, centralized control, so feeding length, speed and other parameters are easy to set.
- Manual setting of the feeding length from 20 to 999mm by yourself.
- The features are feeding accuracy, coating even, saving material, high accuracy, neat appearance, small size, easy to install, operate, maintain, little noise, as a result, it is the ideal equipment for aluminum containers & hardware products and so on.
Main Technical Parameter:
Feeding Machine:
l Max width of the material: 500mm
l Max diameter of the material: 600mm
l Feeding speed: 0-35m/min
l Feeding length: 20-9999mm
l Feeding accuracy: ±0.3mm
l Production Capacity: From 35 to 80 units per minute
l Initial Machine Start Up: 30-50 Units per minute (2 Months)
l Voltage: 380v/ 220v
l Weight: 850Kg
l Power: 1.0Kw
l Overall dimension: 2000x1300x900mm
Punching Machine:
l Max.Pressure: 450KN
l Slide stroke: 100-260mm
l Number of strokes: 50-70 /min
l Loading mould height: 270-400mm
l Adjustable mould height: 60mm
l Dimensions of slide block bottom (LxW): 410x340mm
l Size of the handle hole (Diameter x Depth): 60x60mm
l Worktable dimensions (LxW): 810*440/990*750mm
l Motor Power: 5.5Kw
l Weight: 3800-4500Kg
l Overall dimension: 1550x1150x2500mm
Production line equipment list:
1 Unit Press / Punching Machine
1 Unit Aluminum Foil Feeding Machine
1 Unit Container Automatic Stack Machine & Collecting Machine
1 Unit Automatic Scrap Collecting System
1 Unit Air Compressor System
1 Unit Aluminum Foil Test Roll
1 Unite Manual Operation Lifer-Loading/Unloading Material and Mould
1 Unit Digital PLC Computerized Panel Control
Quotation List for Full-automatic Combination Line:
No. | Product Name |
01 | Punching Machine |
02 | Feeding Machine |
03 | Automatic Container Stack Machine |
04 | Automatic Waste & Scrap Collecting Machine |
05 | Air Compressor System |
06 | Aluminum Foil Test Roll |
07 | Manual Operation Lifer-Loading |
08 | Mould(size:1pcs,500ml) |
| |
Remark:
- The price above based on FOB Shanghai Port.
- It is valid for one month.
- Moulds price are not included in the price,its price depends on mould
1) Feeding Machine
2)Press/Punching Machine
3)Container Automatic Stack Machine & Collecting Machine
4)Container Receiving Table
5)Scrap Collecting System
6)Air Compressor
7)Manual Lifting
8)Container Punching Mould
Product show
