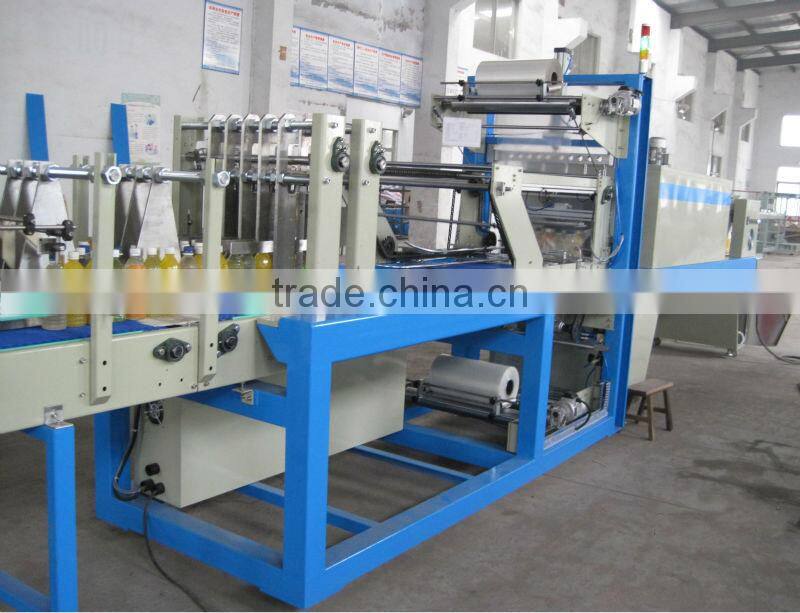

Automatic Heat Shrink Packing Machine

Automatic PE Film Shrink Packing Machine

One.Technical parameters

·Equipment type: SP-15

·Outline dimension of the equipment:L5050*W3300*H2100mm

·The largest dimension of the wrappage:L600*W400*H350mm

·Material of shrink film:PE

·Thickness of shrink film:0.03-0.15mm

·The highest temperature of the heat shrink furnace: 160-260^.

Can adjust freewill.

·The maximum production per minute:0-25 pakage

·Equipment capacity: 20Kw

·Actual power consumption:15Kw/hour

·Pressure request:220V

·Equipment weight:1.2T

·Machine reuired air pressure of the compressor:0.6-0.8Mpa

Two.Basic configuration of the equipment:

·Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)

·One set Taiwan Airtac pneumatic element

·Three sets Taiwan Taida thansducer

·Twelve pieces stainless and iron pterygoid heating pipe

·Teflon transportation net which are produced by Sino-America cooperation.

·Electrical machine by Shanghai and Beauty coperation ,warm transmission by Zhejiang Taili.

·Korea Ottonix photoelectric switch,proximity switch.

·We can make Heat sealing sword cast aluminium heat appliance specially,well proportioned temperature and long lived.

·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,the mainstay adopt stainless steel.

·The length of bottle transport machine:2600mm

·Packed with wooden case and winded film seperately.

Three.Product description:

·Frequancy control,Secondary bottle transport device.

·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.

·Inductive switch control film length.

·Touch screen,PLC control system advanced reliability of the equipemtn function.

·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.

·Strong cooling system can reassure finalize the design quickly.

·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.

·Frequancy conversion timing net transportation structure.

·The height of the conveyer belt can be made according to the user,adustable range±50mm

·Bottole transport machine can satisfy the direction of the user,it can prolong and shorten

·Pterygoid stainless iron heating system,durability.

·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.

Four.Technical requirement and request:

1. Packing terms:

(1)350/500/550/600ML large package: 4*6, 4*5

                     Small package: 3*4, 3*5

Four packing terms.

(2)1L/1.5L/2L/2.5L   large package:3*3,3*4

                   Small Package:2*2,2*3

Four packing terms.

1. For the pop can packing ,we advise packing with pallet,it will be steady.
2. Packing speed:8-12 bundles/minute
3. Satisfy the speed of the liquid filling machine.

(1)350/500/550/600ML large package :4*6, 4*5, (12000-15000 bottles/hour)

Small package:2*3,2*2(3000-4000bottles/hour).

1. Material of packing:the wideth of PE heat shrink film (200-600mm),thickness(0.08-0.12mm)
