Automatic Full Sealing Film Shrink Packing Machine

Automatic Full Sealing Film Shrink Packing Machine

1.Customer requirement:

• Packing container: diesel oil bottle, carlube bottle
• Packing container specification:  mm×  mm×   mm
•                               g/each bottle
• Packing style: whole sealing
• Packing speed: 10-15packagers/min
• Packing material: POF material

2. Sealing&Cutting machine

1). Applicable scope: Pharmacy,foodstuff,stationery,cosmetic,electronics and toy etc.

2). Main Technolog Parameter:

3). Feature:

• Full sealing packing style,packing appearance is beautiful.
• Automatic film feeding,packager forming,sealing,cutting,waste film collecting,film levelling,shrinking finished one time.
• Constant temperature type special aluminum alloy sealing knife,plated with teflon coating,donot stick film,sealing thread is thin,no coking,no fume-off,no pollution.
• The cutting knife will rebound automatically if touch with packing container,no harm to to the packing container with high safty.
• Packing container can be adjusted any size,no need change mould.
• The whole machine performance is steady,can work long time without interruption. Fault rate is low.

4). Main Parts Origin:

Time relay: OMRON,                JAPAN

Position switches: OMRON,            JAPAN

Correlation Photoelectricity: OMRON,   JAPAN

Electric switch,transformer: DELIXI,     CHINA

A.C contactor: SCHNEIDER,           FRANCE

Cylinder,magnetic valve: AIR TAC,     TAIWAN

Conveyor belt motor: ZIGUANG MOTOR

Pulling motor: LINIX,                 IMPORT

Sealing&cutting knife: special aluminum alloy knife

Heating pipe: Satinless steel pipe

Machine material: High quality carbon steel,some parts are made stainless steel.

3. Shrink tunnel

1). Feature:

• Apply heated-air cirulation technology, high power blowing air motor match with presupposed blowing air passageway,result to average heated cirulation air in the tunel,shrink effect is ideal and decreased heat energy wastage.
• Apply stainless steel heating pipe,increased the working life,can use 5-10 years without problem regularly.
• Conveyor belt apply roller design,equipped with high-temperature resistance fibre pipes and assure bottom part shrinking effect.
• With thermal insulating layer in it,and high temperature thermal insulation material in the door of the tunnel.
• Whole frame apply carbon steel structure, plastic-sprayed surface treatment.

2). Technology Parameter:

Speed: 0-10m/min

Temperature: 0-300°C(adjustable)

Power: 8.8Kw

Voltage: 380V,50HZ

Weight: 300Kg

Tunnel length: 1410mm

Tunnel width: 830mm

Tunnel height: 1110mm

Distance from innet to tunnel: 200mm

Distance from outlet to tunnel: 200mm

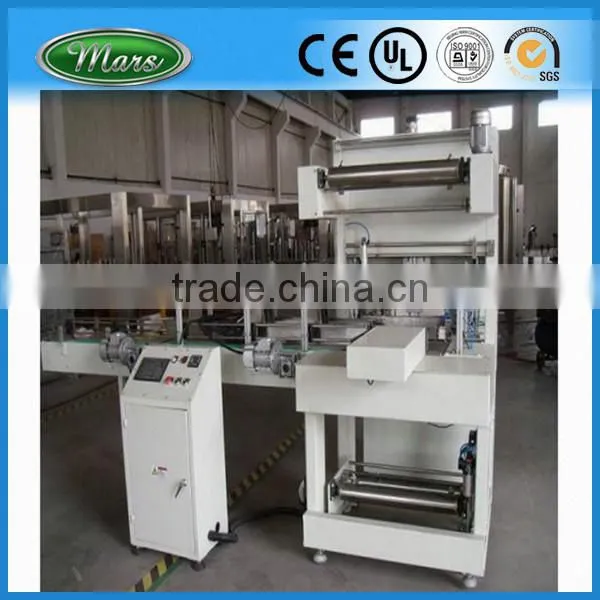

Product show
