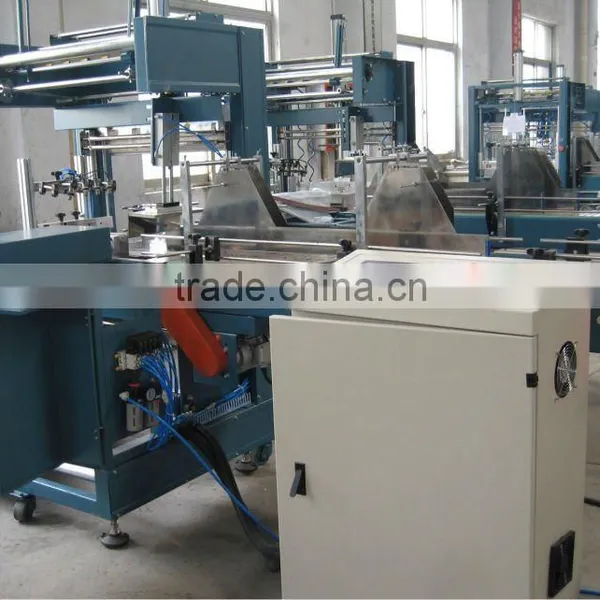

Automatic Film Shrink Wrapper Machine

FOB Price

US$ 9,600 - 10,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V	Power	18Kw
Place of Origin	Jiangsu, China	Brand Name	Mars
Model Number	SP-10	Dimension(LWH)	550032002100mm
Weight	1600Kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Automatic Film Shrink Wrapper Machine :

Characteristic:

1. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc.

2. Adopt with PLC automatic program circulation control with stable and reliable performance.

3. 3 layers of heat insulation treatment with good insulting property, quick temperature rise and energy saving.

4.The enhanced cooling shaping passage can quickly turn the packing membrane into high strength status that is conveniently stored and transported.

5.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine

Specification:

Dimension for the whole unit:	L5500mm×W3200mm×H2100mm
Thermal shrinkage passage dimension:	L1800mm×W650mm×H450mm
Max. package dimension:	L600mm×W400mm×H350mm
Transfer belt dimension:	800-1200mm
Packaging speed:	10-12Packages/Minute
Operating power supply/power:	380V, 19Kw
Sealing and cut time/temperature:	0.5-1.5S,140^oC-160^oC
Operating air pressure:	0.6-0.8Mpa
Air consumption:	0.5m³/Minute
