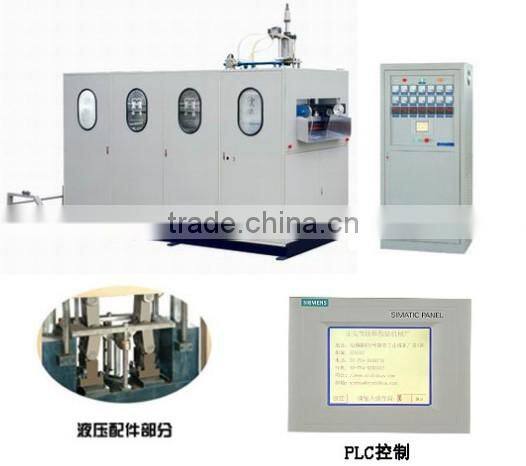

Shape Plastic Cup Machine
Main Features:
1)It is mainly used to produce different plastic cups, such as ice cream cups, cold/hot drinking cups, yoghurt
cups, jelly cups, coffee cup, etc. It could also make some regular shape products, such as bowls, dishes, trays, covers/lids, etc with different moulds.
2) The sheet is driven by pin chain and the pin chain is driven by motor with gearbox. The feeding length couldn't be accurately adjusted. It's
3) The stretching of plug inside of up mould is controlled by air cylinder.

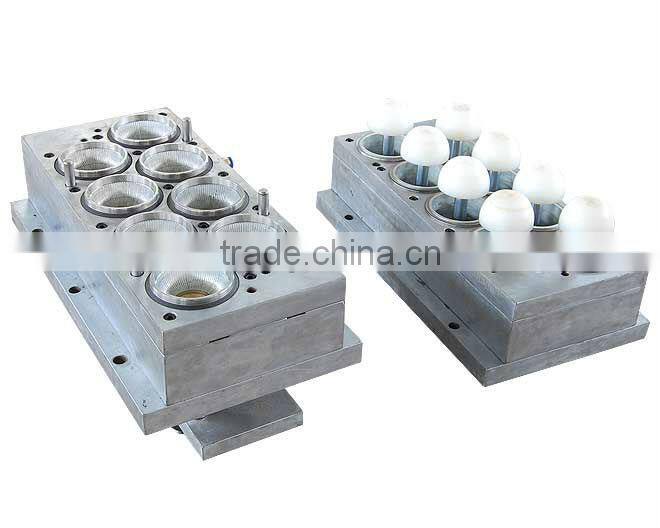

4) Mould adopts two pillars to fix the mould.
5 It adopts hydraulic system to drive the movement of the mould.
6) Temperature controller modules to control up and down temperature area.
7) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
8) Stable operation and reliable performance, low noise, high quality.
9) Machine frame adopts sto make it. Its lifespan will be longer.
11) The movement of heating oven is controlled by touch screen.
12) Waste sheet winder to collect the waste sheet.
Main Technical Parameter for Shape Plastic Cup Machine:
1. Material Used: PPHIPSPETPVC Sheet Roll
2. Sheet Width: 300-660mm
3. Sheet Thickness: 0.2-2mm
4. Forming Speed: 15-32moulds/min
5. Forming Depth: ≤125(mm)
6. Max. Sheet Roll Dia.: 800mm
7. Max. Forming Area: 650*220(mm)
8. Oil Pump Motor Power: 7.5KW
9. Approx. Electricity Consumption: 45KW
10. Air Pressure: 0.6-0.8MPa
11. Water consumption: 0.5-1.8m3/h
12. Air consumption: 1.3-1.6m3/min
13. Overall Dimension: 3.15*1.5*2.3(m)
14. Weight: 4200Kg
15. Power Supply: 380V/50HZ, Tri-phase, Four-wire
