US$ 6,000 - 7,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Cup Filling MachineUS$ 28,000 - 30,000MOQ: 1 Piece -
Complete Seal Cup Filling and Sealing MachineUS$ 15,000 - 18,000MOQ: 1 Piece
-
Cup Molding MachineUS$ 31,000 - 34,000MOQ: 1 Piece
-
Cup Piston Filling Machine CEUS$ 15,000 - 19,000MOQ: 1 Piece
-
Fully Automatic Cup Filling and Sealing MachineUS$ 15,000 - 17,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
3.5KW
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
BF-H2
Dimension(L*W*H)
2600*700*1750mm
Weight
500Kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

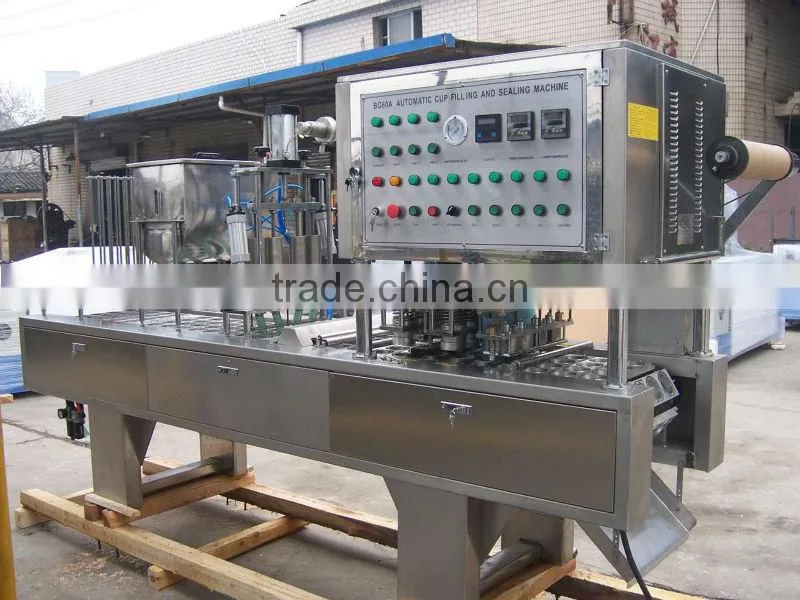

Cup Filling Line Machine
Features:
--Pneumatic driving
--air cylinder filling
--new design for juice, milk, cream, jelly, pudding, mineral water, seasoning and daily chemical etc.
--with date coder
--Easier to control: the two sealing heads and cutting head work separately, so this machine is easier to control than BG32 machine.
Technology parameters for Cup Filling Line Machine :
Model | BF-H2 | BF-H4 | BF-H6 | BF-H8 | BF-H16 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH |
| Power | 3.5KW | 4.5KW | 4.5KW | 4.5KW | 6.5KW |
| Cavity on conveyor | 2 lines of cavities | 4lines of cavities | 6 lines of cavities | 8 lines of cavities | 16 line of cavities |
| Capacity | 1800-2200cups/h | 3500-4500cups/h | 5000-6500cups/h | 7000-9000cups/h | 14000-16000cups/h |
| Filling volume | 100-500ml | 100-250ml | 100-250ml | 100-250ml | 100-250ml |
| Air source | 0.4m3/min | 0.4m3/min | 0.5m3/min | 0.6m3/min | 0.8m3/min |
| Dimension | 2600x700x1750mm | 3150x900x1750mm | 3150x1150x1750mm | 3950x1300x1750mm | 5200x1300x170m5m |
| Weight | 500kg | 700kg | 800kg | 1000kg | 1300kg |
Quality Control for Cup Filling Line Machine
We always pay more attention to the quality of the machine and production line,
Standard quality control system and team are responsible to ensure product quality in every process with different instruments.
