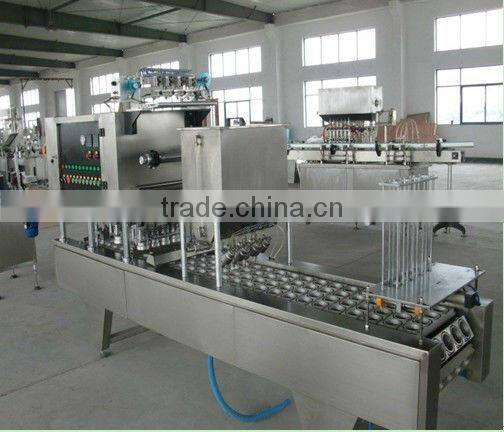

Cup Packing and Sealing Machine

Cup Packing and Sealing Machine

Brief introduction of Zhangjigang Mars packing  Machinery Co., Ltd

we have engaged in food&drinks packaging machinery for about 15 years.

we  are  subjected to various of  food packaging,such as:beverage,honey,soybean,juice,ice    cream,milk,pure water,sauce,chili ...more and more other like this kinds of paste and liquid.what you  can think out,we can do it!welcom to consult.

Function for Cup Packing and Sealing Machine

1.BF series plastic box(cup)filling capping machine adopt step-by-step continuous run way,

2.Automatic finish the feeding ,drop cups, filling, machine putting the film, hot sealing, output the cups.

3.With the features of structure reliable,good sealing strength, high automatic degree, automatic constant temperature .

4.Easy usage, easy maintenance, high produce efficiency. This machine can be used to many kinds of PP,PE,CPP material sealing.

Features

This machine widely used for beverage, drinking water, seasoning(spice),  dairy products,  bean products, aquatic products and brewing products plastic box(cup) packed capping, the capping of the plastic box(cup),neat sealing, impervious, gas-tight.

Technical parameters for Cup Packing and Sealing Machine :

Model:  BF-H3

voltage:  220V/50HZ

Power: 1.5kw

Output: 2400 cups per hour

Dimension: 2150*700* 1550mm

Filling volume adjust:

Controlled by the meeting valve:

1.filling the material into the tank firstly,till the material volume  to the closure position of the float ball,test pumping with manual filling switch,

2.if the filling is not sufficient,open the measuring adjustment valve lager,till the sufficient amount for filling cups.

Work principle:

1.The whole machine is made by the main drive,droping cup,feeding,filling suction membrane by mechanical hand,heat 2.sealing,coding,finished product conveying electrical control,ect.

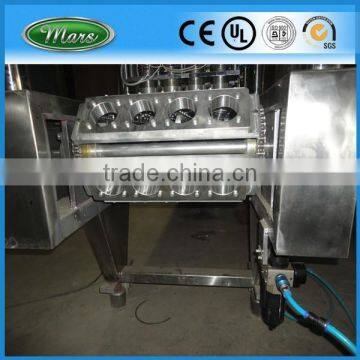

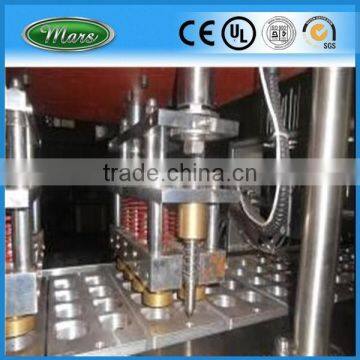

3.the template forward moving, sealing heads upper and lower movement and the signal transmission;it is completed respectively by the rod and chain drive.

4.the process of suction membrane by mechanical hand is completed respectively by two cylinders and a vacuum generator.

5.Through the PLC to control the opening and closing time of the three solenoid valves,and then control the cylinder.

6.PLC is controlled by 5 proximity switches and output signal.

7.in the PLC outputting ,filling and dropping and sealing linking to work,the various functions of the machine work independently This machine function including:

Auto-drop cups→auto-rinsing→filling(liquid)→suction membrane→sealing →output the cups

This machine can be used for:

beverage, drinking water, seasoning(spice),  dairy products,  bean products, aquatic products and brewing products plastic box(cup) packed capping, the capping of the plastic box(cup)
