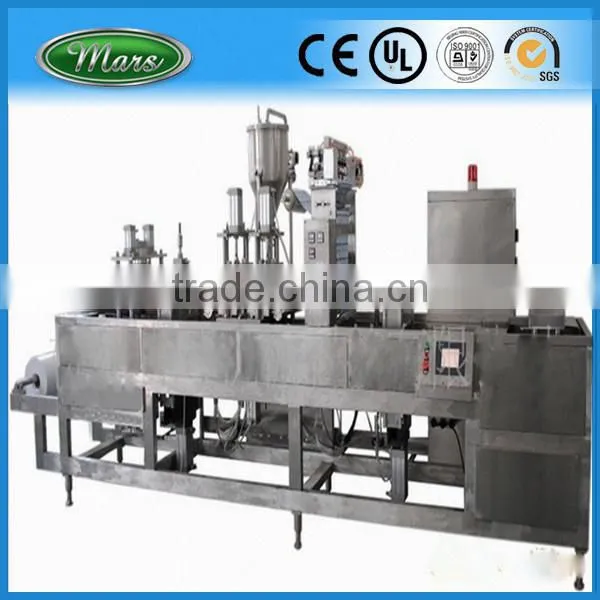

Three Colors Jelly Filling Sealing Machine
GDP-10 three colors jelly filling sealing machine(jelly packing machine).
Applicable products:jelly,milk, ice-cream jam juice.
GDP-10 Three colors jelly filling sealing machine(Jelly packing machine)
(Available Model: GDP-4,GDP-12 Three Color Auto jelly filling and sealing machine )
Applicable Products: Jelly, milk, ice-cream jam juice, mineral water and so on.
Features:
1.Pneumaticl cup falling.
2.Two-step piston filling device permits adjustment of filling quantity.
3.Two-step sealing make sure the film firm, and have a high percent of finished product.
4.Feeding materials from charging bucket automatically.
5.The photoelectric tracing device can be assure of the seal design correct.
6.Stainless steel sealing knife for rust-free performance.
7.Adopt imported refrigerating system.
8.Waste film can be collected automatically.
9.Independent temperature control on each mold. The lamp lights up if a malfunction occurs in the heating system.
10.According to the buyers demands, the imported components and equipped with PLC system can be added to the machine, and the date-printing device are also added.
11.According to the buyers demands, adding some materials, such as fruit flesh, calcium grain, solid particle to the cups.
Technology Parameter:
| Model | GDP-3 | GDP-4 | GDP-10 | GDP-12 |
| Packing Speed | 2800-3600Pcs/H | 4800-5800Pcs/H |
10000-12000 Pcs/H |
12000-14000Pcs/H |
| Width of Filim Sealing | 340mm | 340mm | 340mm | 340mm |
| Capacity of Filling | 100ml | 80ml | 25ml | 15ml |
| Power Supply | 3-phase,4-wires | |||
| Motor | 1.5kw | |||
| Heating Power | 4Kw | 4Kw | 6Kw | 10Kw |
| Air Pressure | 0.5Mpa-0.7Mpa | 0.5Mpa-0.7Mpa | 0.5Mpa-0.7Mpa | 0.5Mpa-0.7Mpa |
| Air Wastage | 0.6-1m3/Min | |||
| Overall Size | L15×W0.9×H1.7m | L15×W0.9×H1.7m | L13×W0.9×H1.7m | L13×W0.9×H1.7m |
| Speed Regulating Method | Frequency-inverted regulating | |||
| Weight | 4000Kg | |||
