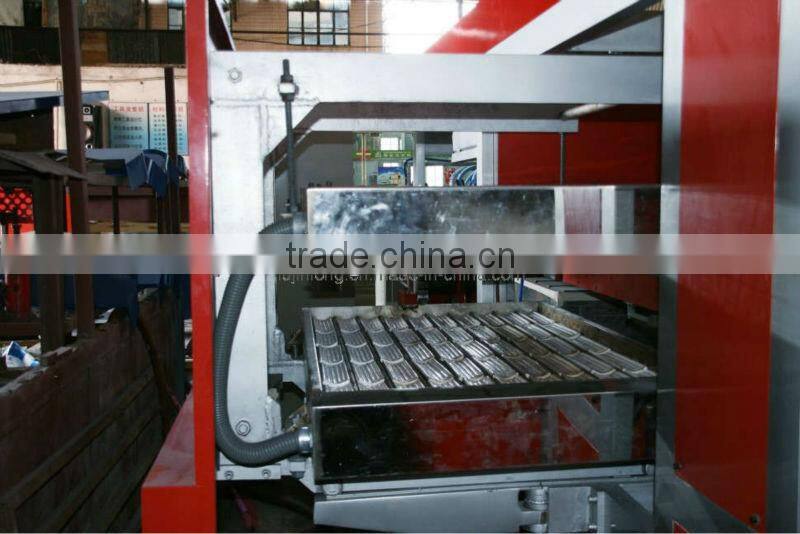

Cup Thermoforming Machine
Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.4) The up mould is fixed and the down mould movement is driven by twin cam. 5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.

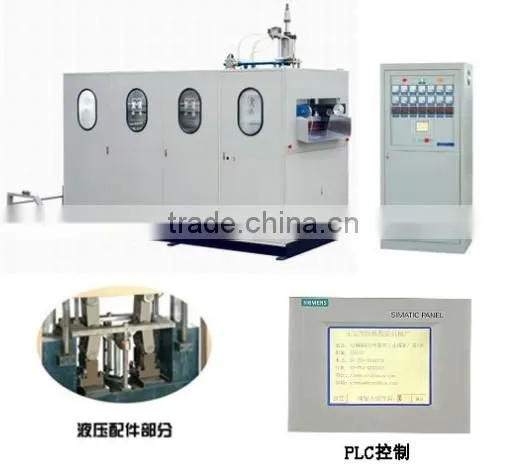

8) This machine adopt PLC and touch screen to control.
III. Main Technical Parameter for Cup Thermoforming Machine:
Model |
CT-F660 |
Mould Driving Method |
Cam |
Approximate Max. Forming Area |
660 x 320 mm |
Approx. Running Speed |
15-30 Stroke / min approx. during production |
Approx. Sheet width required for feeding. |
500 – 660 mm in rolls. |
Mode of cutting arrangement. |
In mould automatic |
Sheet thickness Range |
0.20 – 2.0 mm |
Material |
PP, PS, PET, PVC,PLA |
|
Max. Draw depth, i.e. cup length. |
130 mm (Could be special design) |
Main Motor Power |
15KW,6P |
Sheet Feeding Motor |
2.2KW |
Max. Sheet roll diameter. |
800 mm |
Heating arrangement |
Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
Multi cavity 1 – 3 row. |
Approx. Electrical Consumption |
45KW/hr |
Approximate Dimension |
L3100×W1500×H2500 (mm) |
Approximate Weight |
4000Kg |
Cup Thermoforming Machine
