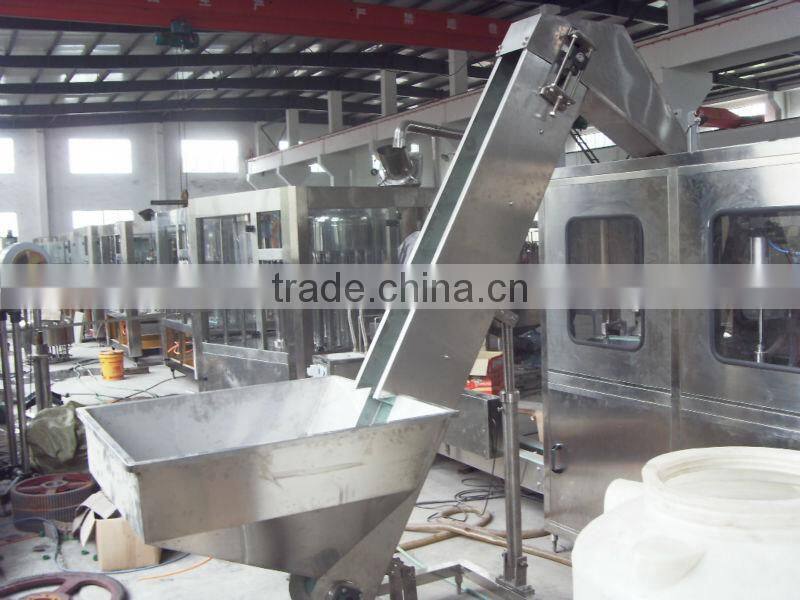

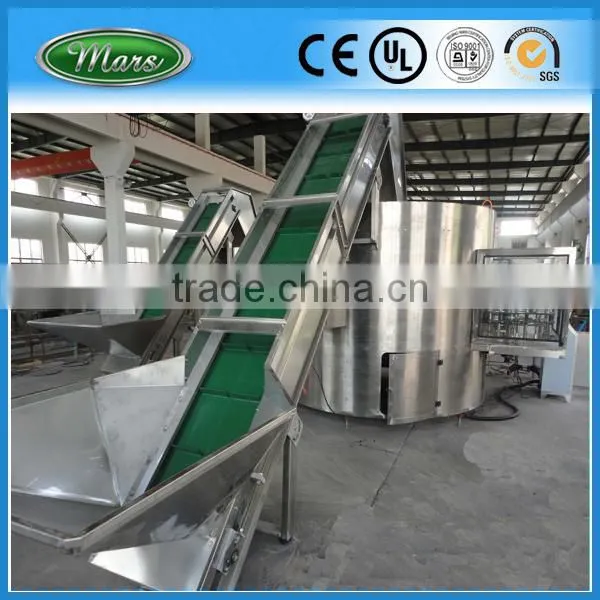

Climbing conveyor
Horizontal or Climbing Belt Conveyor : 1.Wide range of application 2.Large capacity and Width 3.Standard parts, reliable run
Introduction
Belt conveyor, also called continual conveyor, is a kind of machinery transporting materials in a certain line continuously. Its transmission line is generally constant, and able to take horizontal or tilting transmission. The machine has a great transmission capacity and long distance, it can also achieve some process operations simultaneously.
Main Specifications for Climbing Conveyor
Type | Belt Length (m) / Power (kw) | Speed (m/s) | Capacity (t/h) | ||
TD-B400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/3.0-7.5 | 1.25-2.0 | 30-60 |
TD-B500 | ≤12/3 | 12-20/3-5.5 | 20-30/5.5-7.5 | 1.25-2.0 | 40-80 |
TD-B650 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1.25-2.0 | 80-120 |
TD-B800 | ≤10/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1.25-2.0 | 120-200 |
TD-B1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1.25-2.0 | 200-320 |
TD-B1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.25-2.0 | 290-480 |
The belt conveyor manufactured by our company has advantages of big conveying capacity, simple structure, convenient maintenance and standardized parts; it is widely used in industries of mine, metallurgy and coal to convey bulky materials and finished products. According to different technical requirements, it can convey materials alone or coordinately.
Climbing Conveyor
