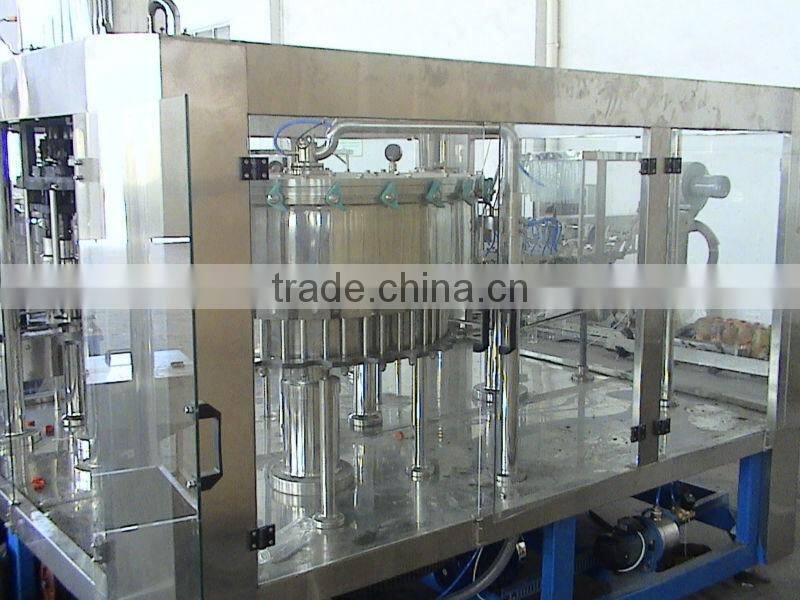

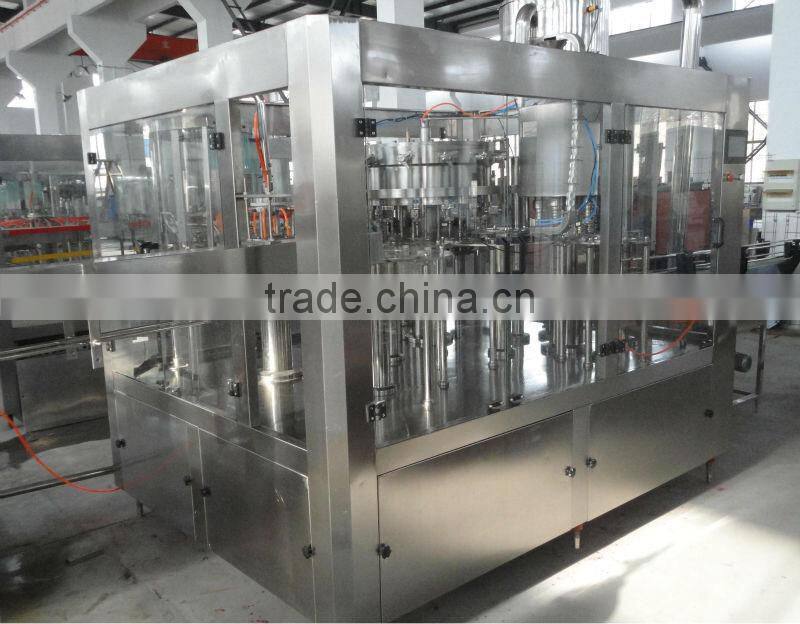

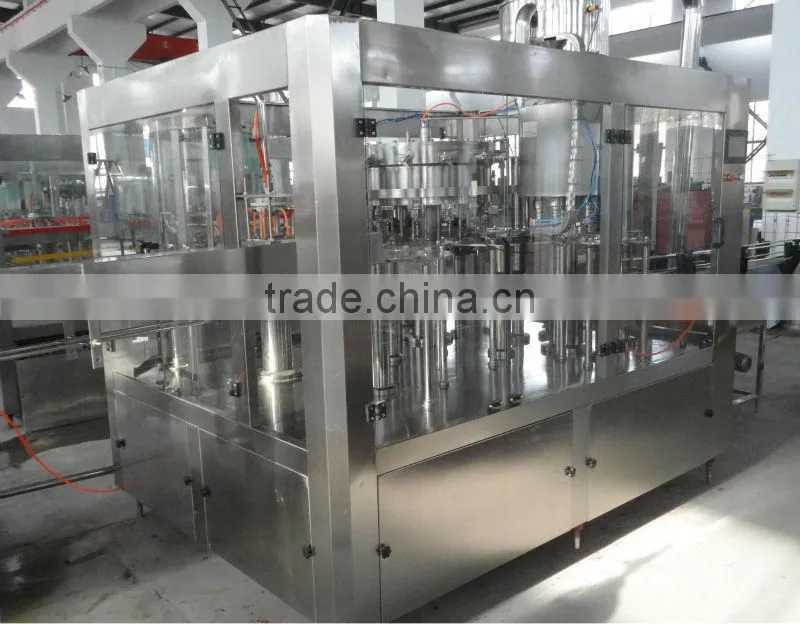

Soda Pet Bottle Filling Machine
1.It is suitable for packing Drink containing gas,soda water ect
2.PLC control
3.output:2000-30000b/h
Soda PET bottle filling Machine performance as following:

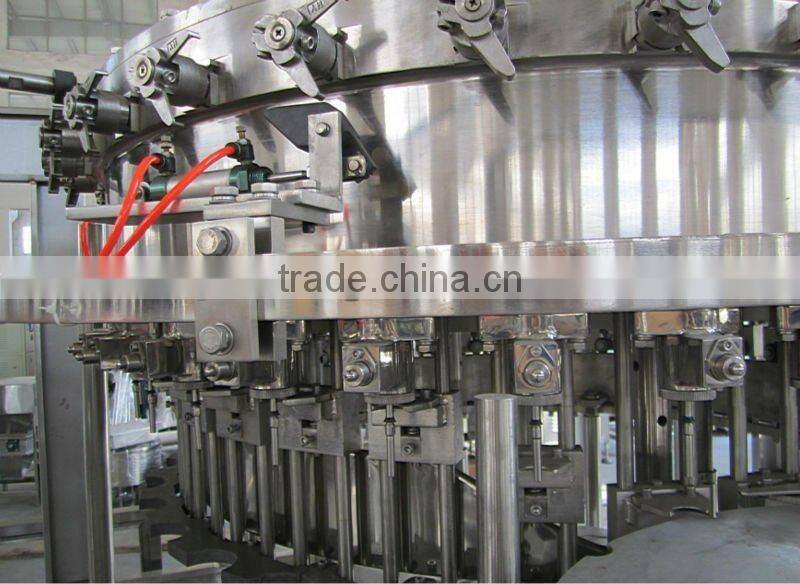

1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.
3. Soda PET bottle filling Machine Using programmable controller to realize fully automatic control from bottles entering to finishing packing.
4. Soda PET bottle filling Machine Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure beverage quality.
5. Soda PET bottle filling Machine Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
Soda PET bottle filling Machine technical parameter
| Model | DCGF16126 | DCGF18186 | DCGF24248 | DCGF32328 | DCGF404010 | DCGF505012 | DCGF606015 | DCGF808020 |
| Filler/Capper heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Bottle diameter(mm) | Diameter=50-100 H=170 330-1500ml | Diameter= 50-110 H= 160-340 | ||||||
| Production capacity (b/h) 350ml | 2000-3000 | 4000-5000 | 8000-9000 | 11000-12000 | 14000-15000 | 18000-19000 | 20000-24000 | 26000-32000 |
| Filling temperature(Celsius) | 0-5 | |||||||
| Filler type | Balanced pressure filler | |||||||
| Spraying pressure | 0.2-0.25 | 0.2-0.25 | ||||||
| Filling pressure | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Motor power | 2.2+0.55+0.12 | 2.2+0.55+0.18 | 3+0.55+0.18 | 5.5+0.55+0.18 | 7.5 | 11 | 15 | 19 |
| Overall dimension(L*W*H)mm | 2300*1600*2500 | 2600*1920*2550 | 3100*2200*2800 | 3850*3000*2850 | 4850*3800*2750 | 5750*3550*2750 | 6500*5500*2750 | 7680*6640*2650 |
| Weight (kg) | 2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 | 15000 |
