500ml Alcohol Bottle Filling Machine

Name: 500ml Alcohol Bottle Filling Machine
Brand: Mars
SKU: 141355606
Availability: InStock

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Alcohol

Packaging Type:

Bottles

Zhangjiagang Mars Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Alcohol

Packaging Type Bottles

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 3.8KW

Place of Origin Jiangsu, China

Brand Name Mars

Model Number JCGF18-18-6

Dimension(L*W*H) 2130*1700*2350mm

Weight 3.3T

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

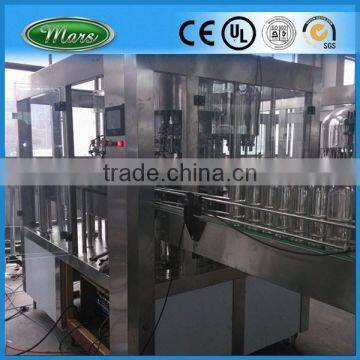

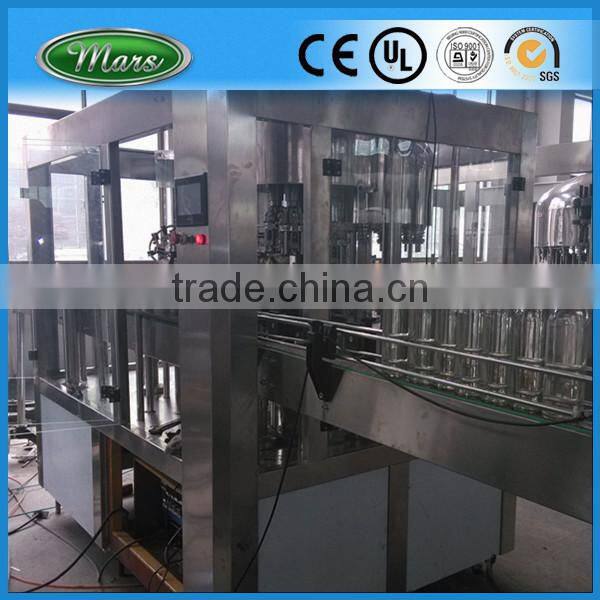

500ml Alcohol Bottle Filling Machine

This alcohol filling machine is quite easy to be operated and maintained with the adopting of PLC control of frequency conversion Timing.

All the parts of alcohol filling machine contact with liquid are made up of high quality stainless steel, both exterior and interior of the machine are polished for easily cleaning and good hygiene codition. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.
Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

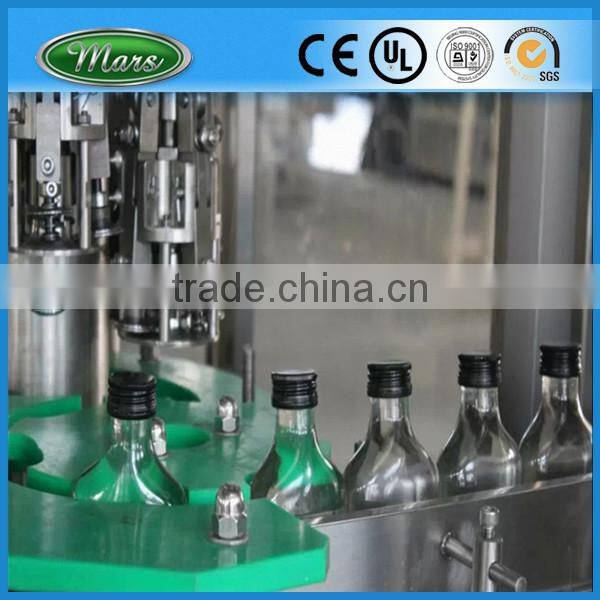

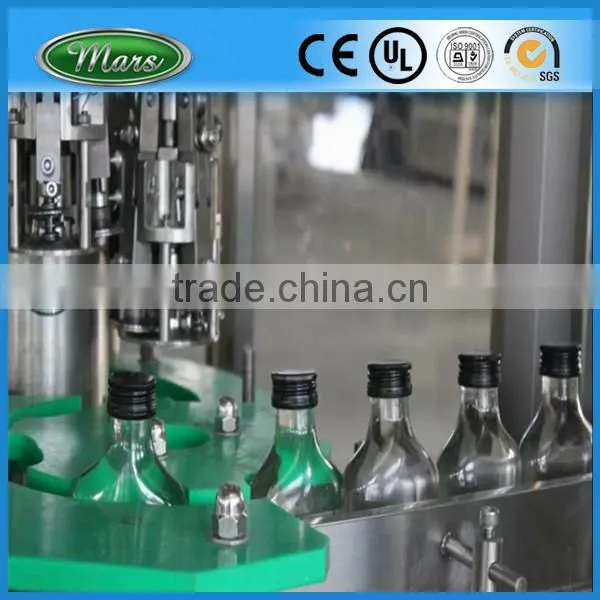

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

Adopting crowning the caps with magnetic force,which passes the torque with powerful and constant magnet,and the torque can be adjusted to meet the need of many kind of plastic cap
alcohol filling machine easy to be maintained and used with the adopting of concentrating or automatic lubrication system and the structure of full-open protection.
The advanced CIP series can clean and sterilize all the containers and insides of all pipes before and after the operation.
