Automatic Bottle Blowing Machine In Plastic / PET bottle
- 200 Set / Sets per Month
- Shanghai
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | Mars | Model Number: | BM-A2 | Voltage: | 380V |
Power(W): | 30KW | Dimension(L*W*H): | 2.5*2.0*2.0m | Weight: | 1900kg |
Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

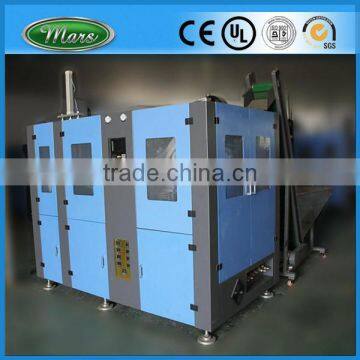

Automatic bottle blowing machine in plastic / PET bottle
Automatic preform input and ready bottle output system.
Machine adopt with the overall structure of super-standard anti-vibration design,hingh-speed operation state of the mahine will shanke down to a minimum,and ensure that the life of components using will not affected from machanical vibrtions.
Automatic bottle blowing machine in plastic / PET bottle adopt modular assembly methods,greatly decrease the local amendments due to technological improvements when the machien is on processing.
In order to ensure the rate of fenished products,the oven which used in measuring the performance of the mahine,sit in a very important position.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating,temperature control with automatic negative feedback,closed-loop regulation model.
Automation and control use of international high-end computer system,heating,collecting and measuring preform temperature with simulation input and output module.
Man-machine interface displays current production situation,available for switching on line,parameter modification and production statistics,with automatic alarm,automatic fault detection and diagnose.
Storing more than 7 kinds blowing specification,when changing different bottle and preform,we can directly got the ready specification from computer.
Adopt latest international air component,the high flow blowing and exhausting system,ensure machine high-speed operation.
In order to save air,we choose high pressure blowing exhaust recovery system,whch can save energy by 15-15%.
How to get your suitable machine or production line ?
• Find our products through Reliable Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, etc
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1.What kind of products will you produce ?
2. What is the capacity(per hour) you want ?
3. What kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details
4. Sole machine or whole production line
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
Automatic bottle blowing machine in plastic / PET bottle
Technical Parameter:
iterm | General Infomation | |
Container | Theoretical Output | 2000pcs/hr |
ntainer volume | 2L | |
Max.neck diameter | 45mm | |
ntainer diameter | 175mm | |
ntainer height | 350mm | |
Number of cavity | 2 Cav | |
Electrical System | Total Power | 30kw |
Use Power | 25kw | |
Air System | Working Pressure | 1.0Mpa |
Low Pressure Consuming | 1600L/min | |
Blow Pressure | ≤3.5Mpa | |
High Pressure Consuming | 2400L/min | |
Chiller Water | Opreating Pressure | 0.3-0.5Mpa |
Temperature | 10-12°C | |
Flow Rate | 45L/min | |
Machine | Machine Dimension | 2.5*2.0*2.0m |
Machine Weight | 1900kg | |
Feeding Machine Dimension | 2.0*1.0*2.0m | |
Feeding Machine Weight | 2000kgs |
