CIP Washing Line
Brief introduction
This product is used for dairy produce plant, beer plant, drink and food plant to clean material pipeline on the site. It is mostly made from SUS304. As centrifugal pump implements forcible circulation in material pipeline and equipment when transporting cleaning solution, it reaches to the objective of cleaning. Therefore, it needn’t to take apart in pipeline and equipment, which improves the use rate of equipment and reduces work strength. This equipment must be combined with the equipment, pipeline and cleaning head in plant while using.
Advantages:
1. Make production plan reasonable and improve production capacity.
2. Compared with hand washing, it doesn’t influence cleaning effect for the difference of operator but improve product’s quality.
3. It can prevent dangerous during work and save work strength.
4. It saves cleaning solution, steam, water and production cost.
5. It can increase parts’ service life.
working pressure |
0.3-0.7Mpa |
working temperature |
60-138°C in acid and alkaline tank, water tank, steam pipe 60-138°C |
material name |
acid and alkaline tank: 2% nitric acid and caustic soda liquid, steam pipe: steam |
centrifugal pump |
10 T/h |
maximal centrifugal pressure head |
35m |
motor power |
2.2kw |
whole volume |
acid and alkaline tank |
overall size (L×W×H) |
3.0*1.4*2.0m |

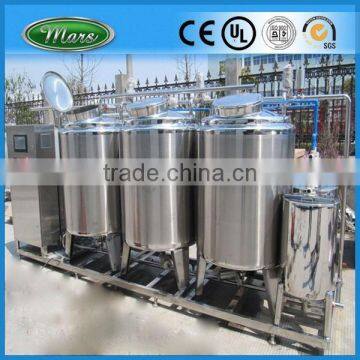

Product show
