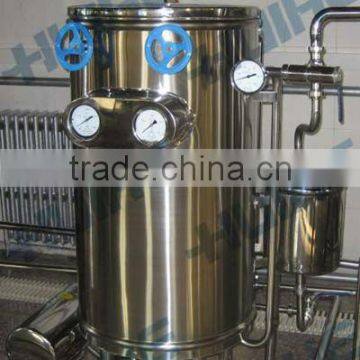

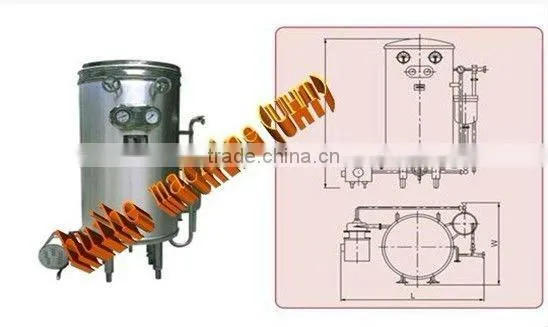

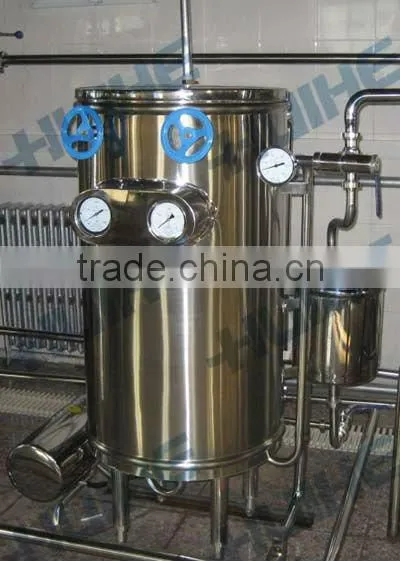

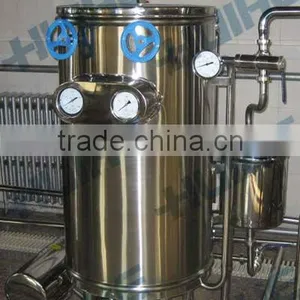

ultra high temperature flash sterilizer,UHT

Our Idea: Mutually Benificial Cooperation and  Win-win

Pipe coil type ultra-high temperature machine adopts the present most advance welding technology, selects the import high quality .

Pipe coil type ultra-high temperature machine adopts pipe construction, high efficiency, energy saving, and simple operation, Because of short heating time, and little lost in nutrition, so it is widely used in sterilizing the liquid such as fresh milk, soybean milk, juice, soy sauce, wine and ice cream.

Advantages

1. Continuous production makes short sterilization time;

2. Due to short heating time, quality products available;

3. Ultra high temperature makes ideal sterilization effect;

4. Linked with centrifugal pump and high-pressure homogenizer, application range is wide, and is suitable for high viscosity materials sterilization.

5. The heat exchanger in design can utilize waste heat, so that the steam consumption is small.


Technical parameter

According to the various technology request from customers for heating, sterilization, heat-preservation, coolness of various material, we can design several process combination to meet technology standard and make the equipment has all kinds of safeguard measures, the character of high-temperature alarm and reflux. Meantime, we can am high-accuracy automation control system according to the requirement of customers. Use Range: Dairy products, Fruit, Drink, Syrup, Sauce, Vinegar.

Main specifications and technical parameters

1, processing capacity: 1m3 / h

2, sterilization temperature: 115 ~ 135

3, using the steam pressure: <0.78Mpa

4, high-temperature heating time: 4 ~ 6S

5, feed temperature: <45 (plus cooling pipe)

6, a material temperature: <65

7, steam consumption: <0.15Kg / L materials

8, motor power: When using a centrifugal pump, 1.5KW

9, using two centrifugal pumps, when, 3KW

10, equipment, net weight: 270Kg

11, area: 0.9*0.9*1.6m (0.9m2)

1)     We adopt advanced stainless steel welding technology from abroad, selecting the fine polished stainless steel tube.

2)     It is suitable for the liquid material, such as fresh milk, fruit drink, wine, soybean milk and Chinese medicine, as well as the sticky material(for example, sweat condensed milk)upon completing with high-pressure homogenizer.

SUS304/SUS316L          high efficiency          energy saving             simple operation

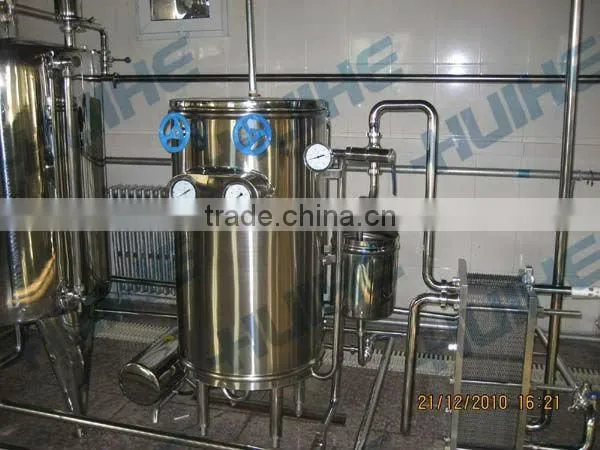

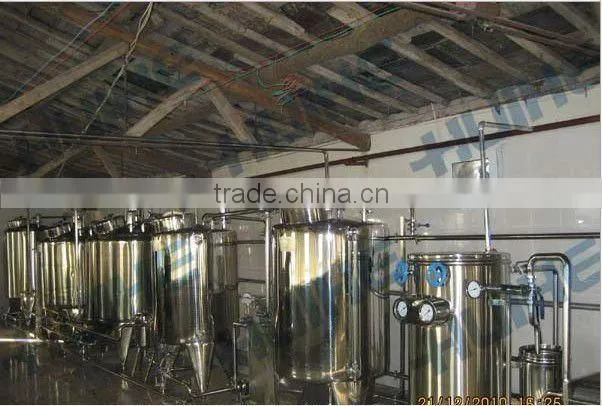

UHT Flash Sterilizer in milk production line

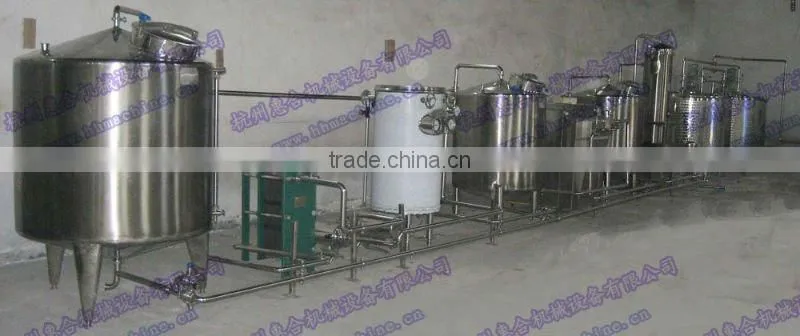

UHT Flash Sterilizer in soya milk production line

Dear sir or madam,

     In order to make sure the accurate specific of the machine you prefer, please provide the information below when make a inquiry.

1. the capacity of the machine/production line?

2. the material to be sterilized?

    The machine is steam heating , and any requirements please do not hesitate to tell me in the inquiry letter ,Thank you.

Regards,

Fay
