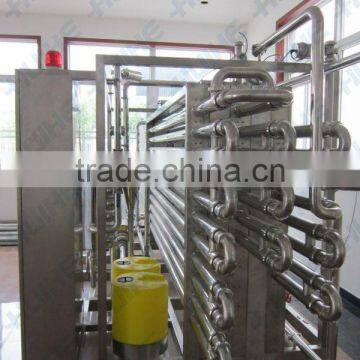

Asepsis Pipe Sterilizing Machine Tubular sterilization equipment

FOB Price

USD $2,360 - $16,500 / Unit

1 Unit(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port ningbo or shanghai port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	HH	Model Number	PLJ
Usage	Other, Fruit & Vegetable	Type	Ultra High Temperature
Voltage	made to order	Power(W)	15kw
Weight	270Kg	Dimension(LWH)	15015002500
Certification	CE	Warranty	12months
After-sales Service Provided	Overseas service center available

Product Description

1. For sterilizing of fresh milk, juice, beverage, liquor, soybean milk, etc
2. Stainless Steel.
3. High Efficiency

This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material. Our factory is a manufacturer who produced the first over high temperature sterilizing machine in China. At present, there are several thousand set which have been used in the whole country.

According to the various technology request from customers for heating, sterilization, heat-preservation, coolness of various material, we can design several process combination to meet technology standard and make the equipment has all kinds of safeguard measures, the character of high-temperature alarm and reflux. Meantime, we can am high-accuracy automation control system according to the requirement of customers. Use Range: Dairy products, Fruit, Drink, Syrup, Sauce, Vinegar.

Parameter:

Model	RP6L-10	RP6L-20	RP6L-40	RP6L-60
Operational Capacity (t/h)	0.5~ 1.0	1.5~ 2.0	3.0~ 4.0	5.0~ 6.0
Sterilizing Temperature (°C)	115 ~ 135	115 ~ 135	115 ~ 135	115 ~ 135
Steam Pressure Used(Mpa)	<0.78	<0.78	<0.78	<0.78
High Temperature Heated Time	4 ~ 6S	4 ~ 6S	4 ~ 6S	4 ~ 6S
Inlet Material Temperature (°C) (added cooling pipe)	<45	<45	<45	<45
Outlet Material Temperature (°C)	<65	<65	<65	<65
Steam Consumption (Kg/L)	<0.12	<0.15	<0.15	<0.20
Motor Power (kW)	1.5	2.2	3	4
Outside Size (mm)	9209201400	110011001700	120012001800	140014002000
Floor Area (m²⁾	0.8	1.0	1.5	2.0
Net Weight	280	380	550	700
