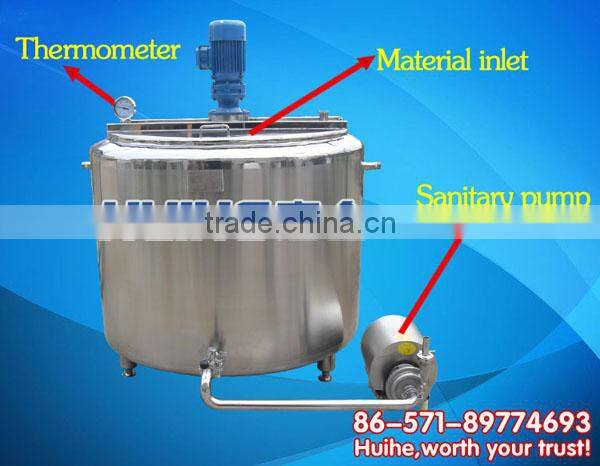

Cold and hot cylinder for paint/ storage
Stainless steel cold and hot cylinder/ ingredients tank widely used in food dairy products, beverage, wine, spices, grease, paint and other industries of material heating, stirring, mixing, cooling, heat preservation etc.
Cold and hot cylinder for paint/ storage characteristics
1, Energy saving, noise elimination, decay resistance, strong production capacity, easy clean
2, Heating area is large, jacketed hollow screw is installed inside the diversion bad, strengthened the heat transfer process, high thermal efficiency, uniform heating (cooling).
3, In accordance with the requirements for health level design, highly humanized design, easy to operate. Smooth transmission, low noise.
4, Appropriate diameter ratio design, on-demand customized mixing plant, energy saving, stirring, their effect is good.
5, Tim E inside body surface mirror polishing treatment (rough skin Ra mouth. 4I J M), prepared from yingkou, inner tank bottom and the simplified welds adopt trapped 5 run transition, light method is easy to clean, no dead Angle. To ensure the reliability of the production process, stability, in line with the "CGMP regulations."
Cold and hot cylinder for paint/ storage technical parameters
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
Body diameter(mm) |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
Body height(mm) |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
Motor power(KW) |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
Stirring speed(rpm) |
36r/min |
||||||||
Working pressure |
≤0.09Mpa |
||||||||
Working temperature |
<100°C |
||||||||
Accessories |
Thermometer,safety valve,pressure gauge |
||||||||
We have many kinds of stainless steel products for you to choose!
It's widely used in food dairy products, beverage, wine, spices, grease, paint and other industries of material heating, stirring, mixing, cooling, heat preservation etc.
We can product accord to your requirements!
