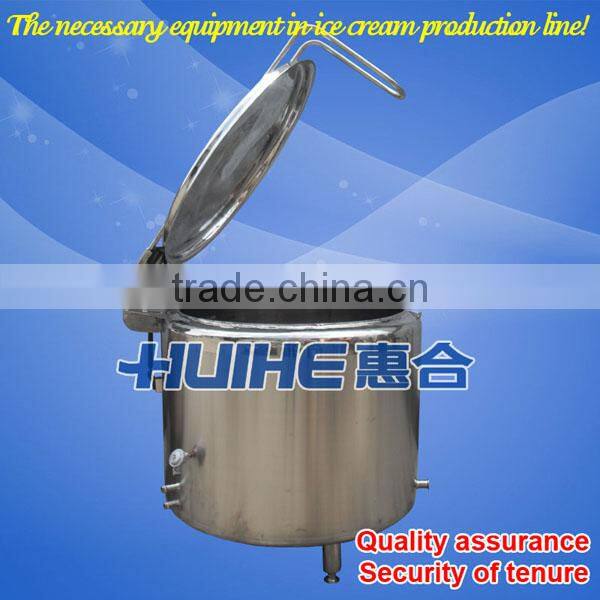

Cold and hot cylinder (steam heating)
Hangzhou HUIHE mechanical equipment co., LTD., the production of steam heating cold and hot cylinder using scope is very broad. In the food, dairy products, chemical, pharmaceutical, beverage and other industries widely used, especially in the beverage, dairy production, often with cold and hot cylinder to heating of the material, cooling, neutralization, reaction, mixing, etc.
Cold and hot cylinder (steam heating) structure
1, Used in barrel, jacket and outsourcing, heat preservation material filled with middle structure
2, Materials are sanitary stainless steel;
3, Highly humanized structure design and strong operability
4, The cylinder body wall transition section USES the circular arc transition, ensure health no dead Angle
Cold and hot cylinder (steam heating) characteristics
HUIHE mechanical production of steam heating, hot and cold cylinder is usually adopted a coil type, the coil is bubbled into steam heating, so very fast heating, heating area is large, heated evenly, and outside the coil tube wall can add asbestos insulation measures are taken.
Cold and hot cylinder (steam heating) technical parameters
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
Body diameter(mm) |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
Body height(mm) |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
Motor power(KW) |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
Stirring speed(rpm) |
36r/min |
||||||||
Working pressure |
≤0.09Mpa |
||||||||
Working temperature |
<100°C |
||||||||
Accessories |
Thermometer,safety valve,pressure gauge |
||||||||
We have many kinds of stainless steel products for you to choose!
It is widely used in food dairy products, beverage, wine, spices, grease, paint and other industries of heating, stirring mixing, cooling, heat preservation material.
We can design accord to your requirements!
