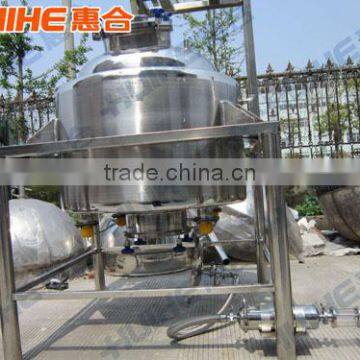

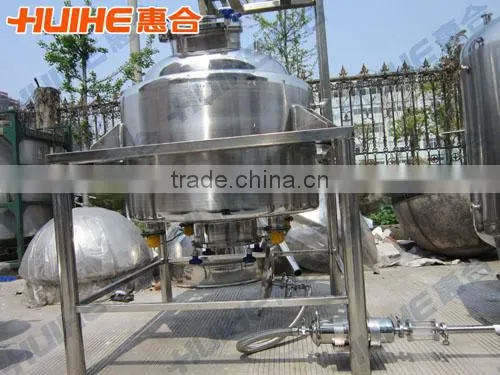

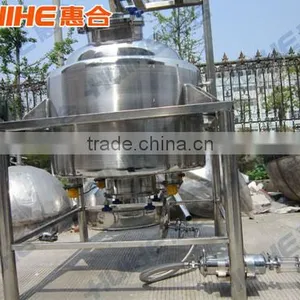

Multi-function Vertical Prick Type Extraction Tank
Multi-function vertical prick type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft. It has the advantages of high efficiency, easy to operate.
Usages of Multi-function Vertical Prick Type Extraction Tank
Characteristics of Multi-function Vertical Prick Type Extraction Tank
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. To improve the way of produced liquid and increase after mixing device can be applied to dynamic extraction system.
4. With high efficiency and convenient operation.
5. CIP cleaning system inside the tank comply with GMP standard
Technical Parameters of Multi-function Vertical Prick Type Extraction Tank
Style No | TQ-1000 | TQ-2000 | TQ-3000 | TQ-6000 | TQ-8000 | TQ-10000 |
Volume | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure(MPA) | 0.09 | |||||
Jacketed layer design pressure(MPA) | 0.3 | |||||
Feed orifices diameters(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (M2) | 3 | 4.7 | 6.8 | 10 | 12 | 15 |
Condensation area (M2) | 4 | 5.4 | 8 | 10 | 15 | 18 |
Cooling area(M2) | 1 | 1 | 1.5 | 2.2 | 2.2 | 2.2 |
Filter area(M2) | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.36 |
Slag discharge doordiameters(M2) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Gas consumption(kg/h) | 285 | 346 | 570 | 718 | 903 | 1140 |
Equipment weight(kg) | 1800 | 2050 | 2400 | 3025 | 4030 | 6500 |
Heating steam orifices | DN-50 | DN-50 | DN-60 | DN-60 | DN-80 | DN-80 |
Secondary orifices | DN-80 | DN-80 | DN-100 | DN-100 | DN-100 | DN-100 |
Cooling water orifices | DN-50 | DN-50 | DN-60 | DN-60 | DN-70 | DN-70 |
Motor power(KW) | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
Stirring speed(rpm) | 21 | 21 | 32 | 32 | 32 | 32 |
Our Services Why Choosing Our Multi-function Vertical Prick Type Extraction Tank |
1. Huihe machine have sales department, engineering department, after sales department, we are all service for you; 2. We are not competing for the price but the high quality and friendly service we competition 3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you; 4. The after sales colleague will service for you from place an order to the actual production; 5. 9 years of industry experience, industry leader; 6. Factory, office site visit. ![]() |
Packaging & Shipping Multi-function Vertical Prick Type Extraction Tank ’s Packing Before Delivery |
![]() |
Company Information Authentication certificate and strength show |
Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.
We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .
The equipments conform to the sanitary standards, thus effectively guarantee people's health.
Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc. Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc. Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
|
