TQ-T Straight Cut Multifunctional Extracting Tank
US$ 3,000 - 9,900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huihe
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Plate Heat ExchangerUS$ 2,450 - 8,600MOQ: 1 Piece -
1.8m2 Plate Heat ExchangerUS$ 2,000 - 20,000MOQ: 1 Piece
-
TQ-D-1.0 Multifunctional Extracting TanksUS$ 2,450 - 8,480MOQ: 1 Piece
-
Drug Extraction Tank (stainless Steel)US$ 8,400 - 21,500MOQ: 1 Unit
-
Multifunctional Pharmaceutical Extracting TanksUS$ 2,000 - 20,000MOQ: 1 Piece
Condition
New
Place of Origin
Zhejiang, China
Brand Name
Huihe
Model Number
TQ-T-0.1
Voltage
380V/3PH/50Hz or according
Power(W)
380V/3PH/50Hz or according
Weight
According to the requirement
Dimension(L*W*H)
by order
Processing Types
alcohol
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas
TQ-T Multifunctional Extracting Tank
1. sus304
2. 380V
3. extracting usage
4. wooden package
TQ-T multifunctional extracting tank can be used in Chinese medicine, food and chemical industries to normal pressure, micro-pressure, water frying, warm soaking, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle. The facilities have the advantages such as high efficiency and simple operating; the CIP cleaning system is in accordance with GMP standards. The facilities can be combines into dynamic extracting system.
Technical Parameters of Extracting Tank
Specification/Model |
TQ-Z-1.0 |
TQ-Z-2.0 |
TQ-Z-3.0 |
TQ-Z-6.0 |
TQ-Z-8.0 |
TQ-Z-10 |
Volume(L) |
1200 |
2300 |
3200 |
6300 |
8500 |
11000 |
Designed pressure of tank (Mpa) |
0.09 |
|||||
Designed pressure of jacket (Mpa) |
0.09~0.3 |
|||||
Pressure of compressed air(Mpa) |
0.6~0.7 |
|||||
Diameter of charging port(mm) |
400 |
400 |
400 |
450 |
500 |
500 |
Heating area |
3.0 |
4.7 |
6.5 |
8.5 |
10 |
12 |
Condensation area |
5 |
6 |
8 |
10 |
12 |
14 |
Cooling area |
1 |
1 |
1 |
2 |
2 |
3 |
Filter area |
3 |
3 |
3 |
5 |
5 |
6 |
Diameter of slag port(mm) |
800 |
800 |
800~1000 |
1000~1200 |
1200~1400 |
1400~1600 |
Energy consumption(Kg/h) |
245 |
325 |
345 |
645 |
720 |
850 |

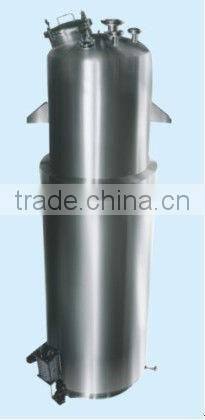

PICTURE1:THE TQ-M EXTRACTING TANK
PICTURE2:WELL PAKAGED
