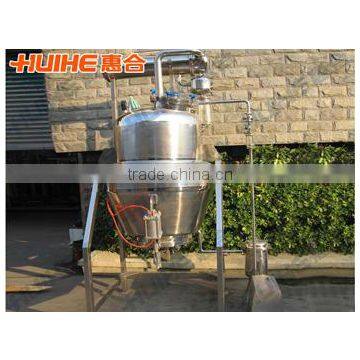

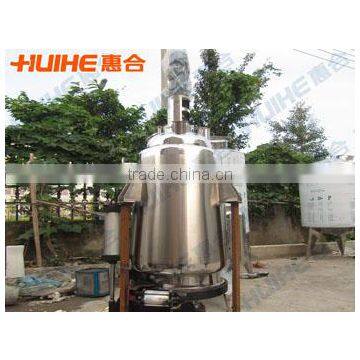

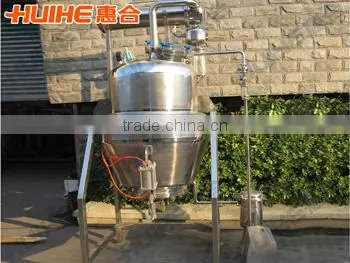

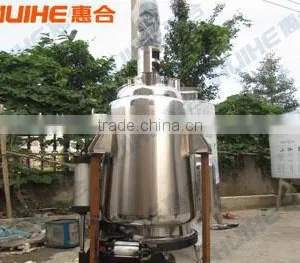

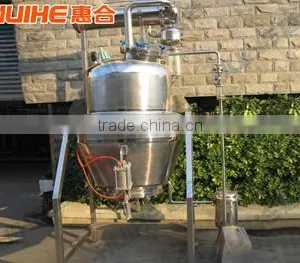

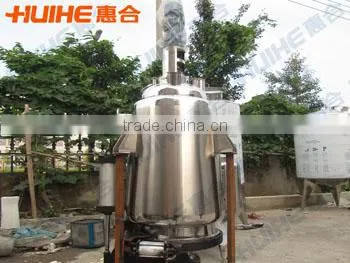

Dynamic Multifunctional Extracting Tank
Structure of Dynamic Multifunctional Extracting Tank
Characteristics of Dynamic Multifunctional Extracting Tank
1. Pneumatic type cover open and close is adopted. Two cylinders of large tension are allocated at the two sides of the extracting tank. When opening the cover, press the cover open button, the cylinder will drive the tank cover to slowly open and the residue will be gradually discharged to the collection car at the bottom of the tank. Just loosen the button, the tank cover will instantly stop. It has good safety and can also control the dropping of residue.
2. With various heating methods and extracting temperature functions, the equipment can rapidly heat the solvent and accurately control the extracting temperature. Furthermore, various extracting processes can be realized, such as: continuous counter-current filtration, continuous counter-current extraction, dynamic extraction, ordinary boiling extraction (the tank top is provided with two-stage condenser return flow). Various extracting technological processes can completely realize the automatic operation.
3. It is provided with automatic CIP in-process cleaning device, and sufficient cleaning balls and nozzles are installed inside the equipment to ensure the rapid and through cleaning of the extracting tank.
Technical Parameters of Extracting Tank
Style No |
TQ-1000 |
TQ-2000 |
TQ-3000 |
TQ-6000 |
TQ-8000 |
TQ-10000 |
Volume |
1200 |
2300 |
3200 |
6300 |
8500 |
11000 |
Tank design pressure(MPA) |
0.09 |
|||||
Jacketed layer design pressure(MPA) |
0.3 |
|||||
Feed orifices diameters(mm) |
400 |
400 |
400 |
500 |
500 |
500 |
Heating area (M2) |
3 |
4.7 |
6.8 |
10 |
12 |
15 |
Condensation area (M2) |
4 |
5.4 |
8 |
10 |
15 |
18 |
Cooling area(M2) |
1 |
1 |
1.5 |
2.2 |
2.2 |
2.2 |
Filter areaM2) |
0.25 |
0.25 |
0.25 |
0.3 |
0.3 |
0.36 |
Slag discharge door diameters(M2) |
800 |
800 |
800 |
1000 |
1000 |
1000
|
Gas consumption(kg/h) |
285 |
346 |
570 |
718 |
903 |
1140 |
Equipment weight(kg) |
1800 |
2050 |
2400 |
3025 |
4030 |
6500 |
Heating steam orifices |
DN-50 |
DN-50 |
DN-60 |
DN-60 |
DN-80 |
DN-80 |
Secondary orifices |
DN-80 |
DN-80 |
DN-100 |
DN-100 |
DN-100 |
DN-100 |
Cooling water orifices |
DN-50 |
DN-50 |
DN-60 |
DN-60 |
DN-70 |
DN-70 |
Motor power(KW) |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
Stirring speed(rpm) |
21 |
21 |
32 |
32 |
32 |
32 |
|
Our Services
Why Choosing Our Dynamic Multifuntional Extracting Tank
|
|
1. Huihe machine have sales department, engineering department, after sales department, we are all service for you; 2. We are not competing for the price but the high quality and friendly service we competition 3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you; 4. The after sales colleague will service for you from place an order to the actual production; 5. 9 years of industry experience, industry leader; 6. Factory, office site visit.
|
|
Packaging & Shipping
Dynamic Multifuntional Extracting Tank ’s Packing Before Delivery
|
|
|
Company Information
Authentication certificate and strength show
|
|
Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.
We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .
The equipments conform to the sanitary standards, thus effectively guarantee people's health.
Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc. Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.
Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
|
