Multifunctional Extracting Tank Pharmaceutical Machine

Multifunctional Extracting Tank Pharmaceutical Machine thumbnail-1
Multifunctional Extracting Tank Pharmaceutical Machine thumbnail-2
Multifunctional Extracting Tank Pharmaceutical Machine thumbnail-3
Multifunctional Extracting Tank Pharmaceutical Machine thumbnail-4
Multifunctional Extracting Tank Pharmaceutical Machine thumbnail-5
Multifunctional Extracting Tank Pharmaceutical Machine photo-1

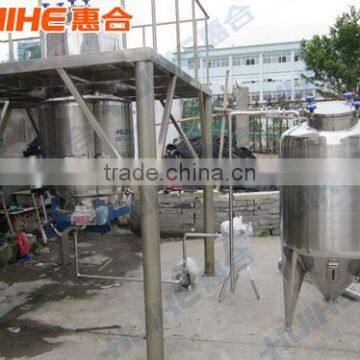

Multifunctional Extracting Tank Pharmaceutical Machine photo-2

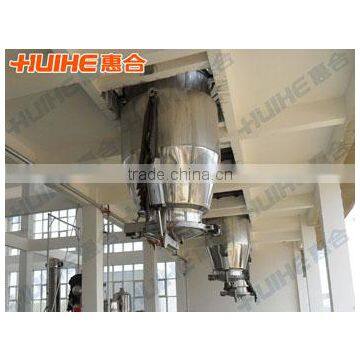

Multifunctional Extracting Tank Pharmaceutical Machine photo-3

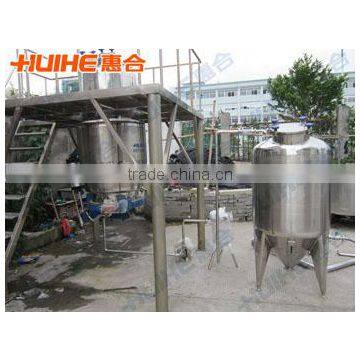

Multifunctional Extracting Tank Pharmaceutical Machine photo-4
Multifunctional Extracting Tank Pharmaceutical Machine photo-5
US$ 4,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Fruit Extract
Variety:
Other, Coconut Extract
Extraction Type:
Liquid-Solid Extraction
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Fruit Extract
Variety Other, Coconut Extract
Extraction Type Liquid-Solid Extraction
Place of Origin Zhejiang, China
Grade Pharmaceutical Grade
Brand Name HH
Model Number Natural Extract, TQ series

Multifunctional Extracting Tank

Multifunctional extracting tank is one of the extracting tank types. It is commonly used in medicine, biology, food, chemical leaching extraction equipment. It can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft.



Matching Facilities of Multifunctional Extracting Tank
    TQ-T multifunctional extracting tank is composed by defoaming machine, congealing machine, cooing machine, filter, oil water separating device and medicine pumps.
Usages of Multifunctional Extracting Tank

    This extraction equipment is widely used in China traditional drug, plants, animals, foodstuff and chemistry . It can also be used for colleges and universities, research institutes and enterprises and institutions in the laboratory research and test in the production line.

Characteristics of Multifunctional Extracting Tank

    1.  The welding machine type honeycomb jacket is adopted, which has such advantages as small volume and high heat exchange efficiency. It can save about 15% of steam used for heating solvent. The heat preservation jacket can be additionally made outside the honeycomb jacket.
    2.  The liquid discharge pipe on the tank cover at the bottom of the extracting tank is made of high quality flexible pipe, which is firmly connected, free of leakage, high temperature resistant(150℃), free of replacement and free of any maintenance with service life of over 5 years.

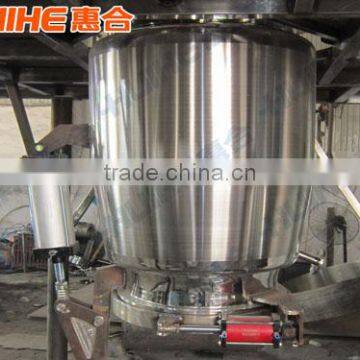

    3.  Pneumatic type cover open and close is adopted. Two cylinders of large tension are allocated at the two sides of the extracting tank. When opening the cover, press the cover open button, the cylinder will drive the tank cover to slowly open and the residue will be gradually discharged to the collection car at the bottom of the tank. Just loosen the button, the tank cover will instantly stop. It has good safety and can also control the dropping of residue.

Technical Parameters of Extracting Tank
Style No
TQ-1000
TQ-2000
TQ-3000
TQ-6000
TQ-8000
TQ-10000
Volume
1200
2300
3200
6300
8500
11000
Tank design pressure(MPA)
0.09
Jacketed layer design pressure(MPA)
0.3
Feed orifices diameters(mm)
400
400
400
500
500
500
Heating area (M2)
3
4.7
6.8
10
12
15
Condensation area (M2)
4
5.4
8
10
15
18
Cooling area(M2)
1
1
1.5
2.2
2.2
2.2
Filter area(M2)
0.25
0.25
0.25
0.3
0.3
0.36
Slag discharge door diameters(M2)
800
800
800
1000
1000
1000

Gas consumption(kg/h)
285
346
570
718
903
1140
Equipment weight(kg)
1800
2050
2400
3025
4030
6500
Heating steam orifices
DN-50
DN-50
DN-60
DN-60
DN-80
DN-80
Secondary orifices
DN-80
DN-80
DN-100
DN-100
DN-100
DN-100
Cooling water orifices
DN-50
DN-50
DN-60
DN-60
DN-70
DN-70
Motor power(KW)
2.2
4
5.5
5.5
7.5
7.5
Stirring speed(rpm)
21
21
32
32
32
32

Notes:
1,traditional Chinese medicine extraction tank need to clear the material in the model selection of the design characteristics, operating conditions and scope of form a complete set of components that can call in detail.
properties.

 Our Services
Why Choosing Our Multifunctional Extracting Tank

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

Multifunctional Extracting Tank Pharmaceutical Machine
 Packaging & Shipping
Multifunctional Extracting Tank ’s Packing Before Delivery
 Company Information
Authentication certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.



We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .



The equipments conform to the sanitary standards, thus effectively guarantee people's health.




Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

Multifunctional Extracting Tank Pharmaceutical Machine

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
