Stainless Steel Jacketed Kettle for Cooking Boiling

Stainless Steel Jacketed Kettle for Cooking Boiling thumbnail-1
Stainless Steel Jacketed Kettle for Cooking Boiling photo-1
US$ 1,000 - 8,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hh
Model Number:
1000L
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shagnhai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name hh
Model Number 1000L
Type Cooking Equipment
After-sales Service Provided Overseas third-party support available

PRODUTION INFOMATION





  Stianless Steel  Jacketed Kettle

1.   tilting jacketed cooking kettle take steam as the heating source, features excessive and evenly temperature distribution.efficient heating absorbsion, low boiling time and easy temperature control.

 2.       The cooking surface of this tilting jacketed cooking kettle selected corrosion resistant 304  stainless steel,pressure gauge, safety  valve, it is convenient to install and operate.

 Construction material:

  •      inner cooking body SUS304 , outer body and support: carbon steel
  •     all constructed in SUS304/SUS316
Structure of Jacketed Kettle



    Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add steam to heat.

Material
a) Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
b) The whole machine is made of stainless steel ( SUS304/SUS316L)



Usages of Jacketed Kettle



1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.



Characteristics of Jacketed Kettle



1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.

2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

 Stainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boiling

Technical parameters of Jacketed Kettle



Model
50
100
200
300
400
500
600
800
1000
Caliber(mm)
Φ600
Φ700
Φ800
Φ900
Φ1000
Φ1100
Φ1200
Φ1400
Φ1500
Depth of Pot(mm)
400
450
530
630
680
730
780
830
900
Heating area(m2)
0.45
0.58
1.12
1.42
1.75
2
2.3
3.2
3.9
Boiling time(min)
5
8
11
14
18
22
25
34
40
Interface size
Steam pipe
3/4”
1”
2”
Condensate pipe
3/4”
1”
Working pressure
≤0.09Mpa(can be adapted according to customers’ requirement)
Stirring speed
36 r/min(can be adapted according to customers’ requirement)
Stirring power(Kw)
0.55
0.55
0.75
1.1
1.1
1.5
1.5
2.2
2.2

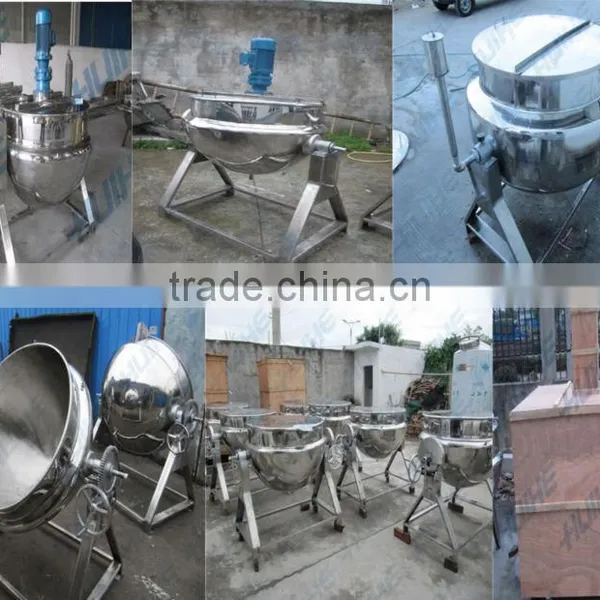

Stainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boilingStainless Steel Jacketed Kettle for cooking boiling
