Product information:

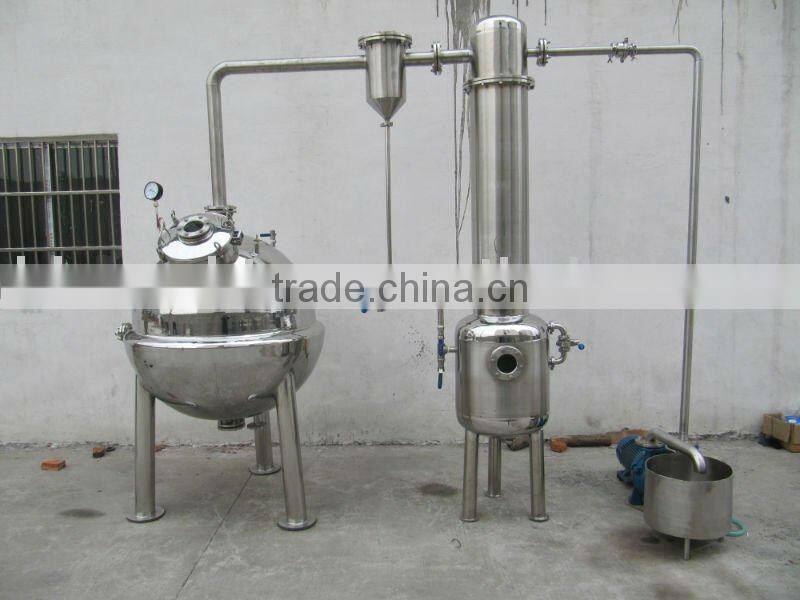

Triple-Effect Falling-Film Continuous Feeding Concentrator/evaporator
We integrated the highlight of imported concentration equipment with that of the counterparts, based on the characteristics of the material, research and develop SJM type three- effect (double effect, single effect) falling-film continuous feeding evaporator.
Application:
The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.
Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature evaporation. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, juice, fine chemical, light industry, PRO-environment etc.
The SJM evaporator series (three effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.
Characteristic:
A. Evaporation capacity: From 500Kg/h to 80T/h
B. Material of contact: According to detailed raw material.
C. The equipment composed of one-effect, two-effect, three-effect heater, one-effect, two-effect, three-effect separator, preheater, composite condenser, hot press pump, vacuum pump, product pump, surge tank, electric cabinet, worktable and all pipelines and valves.
D. Low steam consumption, 1kg steam evaporate 3.5kg water. Heat evenly and high heat transfer efficiency;
E. Low evaporate temperature. Partial of indirect steam re-inhaled into one-effect heater by jet-type hot press pump can make full use of the heat and evaporate temperature are relatively lower.
F The process is under vacuum situation, the temperature is relatively low, so it is not easy to scaling in the evaporator.
G It can be quipped with CIP System, it is easy to clean all the equipment and ensure no dead angle
Technical Pramaters:
Model | QN-300 | QN-500 | QN-700 | QN-1000 |
Evaporation KG/H | 70 | 120 | 145 | 195 |
Volume | 300L | 500L | 700L | 1000L |
Jacket pressure | 0.09Mpa | |||
Vacuum degree | 500-620mmHg | |||
Heating area | 1.3 | 1.6 | 2 | 2.8 |
Condensation area | 2.4 | 3 | 3.5 | 4 |
Weigh KG | 380 | 450 | 630 | 950 |
Length mm | 1900 | 2030 | 2100 | 2335 |
Width mm | 1100 | 1200 | 1300 | 1520 |
Height mm | 2300 | 2500 | 2600 | 2765 |
