4LD-2 tractor combine harvester for wheat

Specifications

1. wheat small combine harvester.
2. can be used for harvesting and farming
3. 50-90hp tractor,2200mm cutting width

Favorable Advantages

1. Optimized Threshing Mechanism: Bigger double rollers, better threshing results and separation, additional re-threshing devices.

2. Advanced Cleaning mechanism: Optimize double fish shaker, dependent end shaker angle and lower loss.

3. Wider conveyer feeding more smoothly.

4. Improved reel spring tooth, hydraulic control for laid crop.

5. Capacious Grain Tank: 1.3m³ of grain tank, dependent open and closed of gate and unload conveniently.



Total loss	≤3.0
Roughage content	≤2.0
Broken rate	≤2.0
Reliability	≥95%
Matched motor	55hp-65hp wheeled tractor
Feed	2.0kg/s
Harvesting Width	2200
Dimension(length× width× height)	6544×2625×3070mm
Grain tank	1.3m3
Productivity	0.33-0.67hec/h
Average oil consumption per hectare	11~18kg/hm2
Structure quality	1800kg

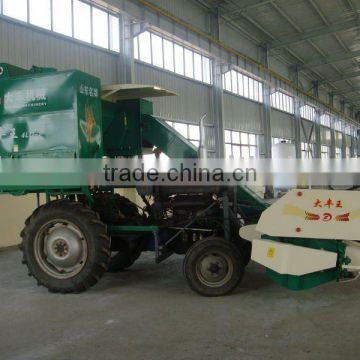

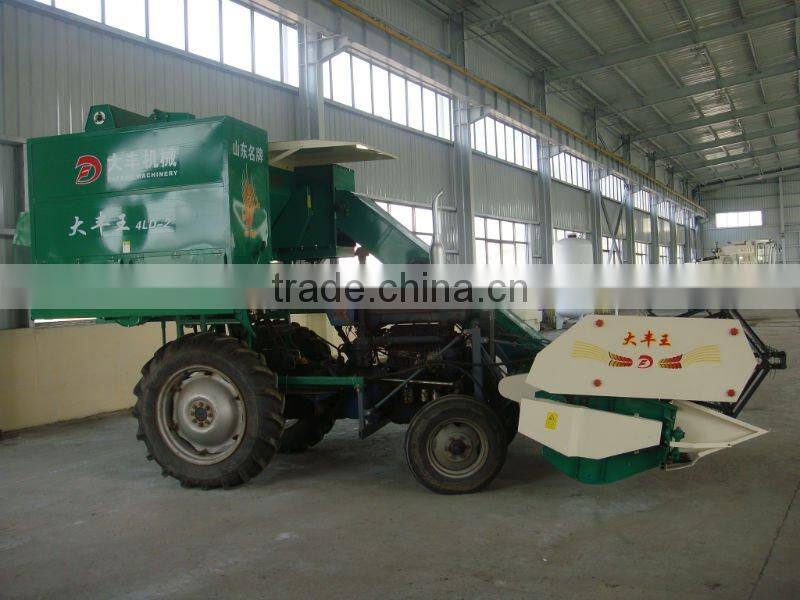

1.view

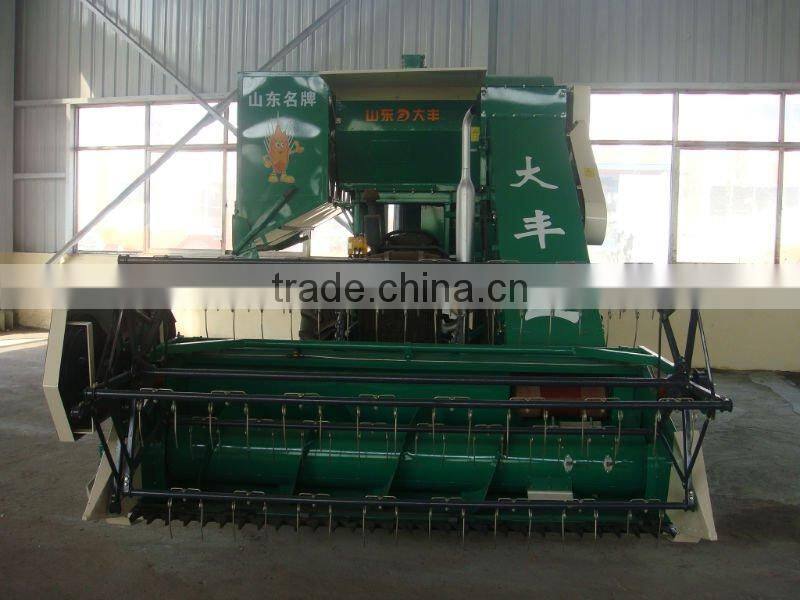

2.front angle

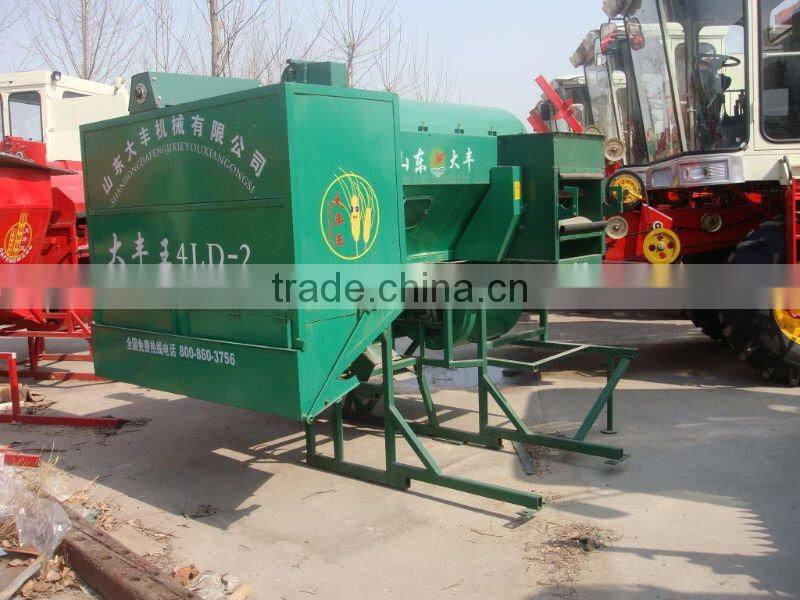

3.thresher
