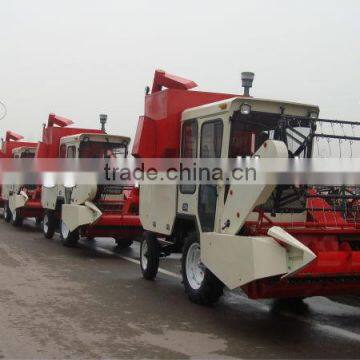

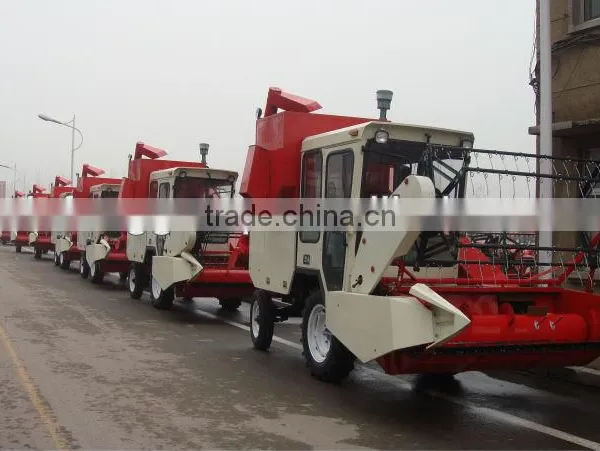

Wheat Combine Harvester Machine 4LZ-1.5

Main Performance

Loss Rate

≤1.2%

Grain Broken Rate

≤1.0%

Impurities Rate

≤2.0%

Work reliability

≥93

Technical specification sheet

Type

Wheel full feed self-propelled

Model

4LZ-1.5

Cutting Width

mm

1800

Feed

Kg/s

1.5

Running speed

Km/h

2.48-16

Diesel Engine

Model

4L68

Power

KW

40

Rotate Speed

r/min

2600

Average Oil Consumption per Hectare

Kg/hm²

≤27

Working Productivity

Mu/H

4-6 (0.27-0.4Hec/H)

Total Weight

kg

2800

Dimension

(L×W×H)

mm

5800

2400

3000

Ground Clearance

mm

310

Header

Reel Type

Spring-tined

Reel Diameter

Mm

Φ900

Reel Bat

Piece

5

Cross auger Type

Screw auger, eccentric extensible link

Cross Auger Diameter

mm

Φ500

Clearance between Auger and Bed Plate

mm

12-20

Cutter bar Stroked

mm

76.2

Cutter bar Type

Domestic strandard II

Conveyer

Type

Flat belt raked tine

Width

mm

400

Threshing Drum

Type

Transverse Axial Flow

Diameter

mm

Φ545 adjustable

Length

mm

1350

Re-sthreshing Drum

Type

Axial flow cutting plate

Diameter

mm

Φ190

Concave

Type

Grid based

Angle

(°)

236.8

Separation Area

m²

1.38

Re-threshing Concave

Type

Punch type

Separation Area

m²

0.45

Sieves

Type

Double sieves + fan + re-threshing

above sieve

m²

0.76

bottom sieve

m²

0.92

Fan

Type

Low-pressure, volute

Diameter

mm

Φ346.8

Elevator Auger Diameter×Thread Pitch

mm

Φ120×116

Unloading type

mechanical

Tank capacity

m3

1

Oil Tank Capacity

L

65

Operator

1 Person

Qty’/40HC

Sets

2
