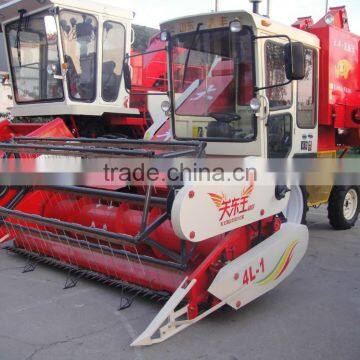

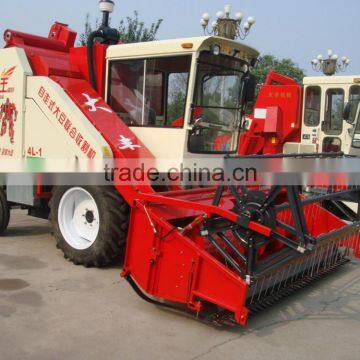

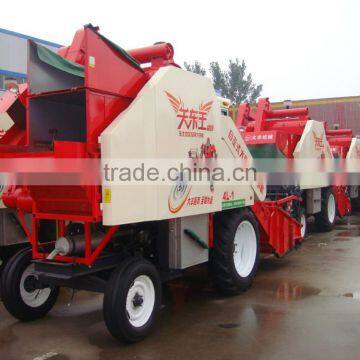

Soybean Combine Harvester
4L-1 wheel type self propelled soybean combine harvester
Technical specification sheet | |||
Type |
| Wheel full feed self-propelled | |
Model |
| 4L-1 | |
Cutting Width | mm | 2562 | |
Feed | Kg/s | 0.5-1.0 | |
Running speed | Km/h | 2.48-16 | |
Diesel Engine | Model |
| 4102 |
Power | KW | 48 | |
Rotate Speed | r/min | 2600 | |
Average Oil Consumption per Hectare | Kg/hm² | ≤19 | |
Working Productivity | Hm²/h | 5-10 | |
Total Weight | kg | 3050 | |
Dimension (L×W×H) | mm | 6210 | |
3180 | |||
2930 | |||
Ground Clearance | mm | 315 | |
Header | Reel Type |
| Spring-tined |
Reel Diameter | Mm | Φ900 | |
Reel Bat | Piece | 5 | |
Cross auger Type |
| Screw auger, eccentric extensible link | |
Cross Auger Diameter | mm | Φ500 | |
Clearance between Auger and Bed Plate | mm | 12-20 | |
Cutter bar Stroked | mm | 76.2 | |
Cutter bar Type |
| Domestic standard II | |
Conveyer | Type |
| Flat belt raked tine, forced feed |
Width | mm | 500 | |
Threshing Drum | Type |
| Axial flow rasp bar |
Diameter | mm | Φ480 adjustable | |
Length | mm | 1190 | |
Concave | Type |
| Grid based |
Angle | (°) | 212 | |
Separation Area | m² | 0.96 | |
Sieves | Type |
| Double sieves + fan + re-threshing |
above sieve | m² | 0.56 | |
bottom sieve | m² | 0.7 | |
Fan | Type |
| Retroverted straight-blade centrifugal |
Diameter | mm | Φ420 | |
Grain Auger Diameter × Thread Pitch | mm | Φ125×115 | |
Unloading type |
|
| Mechanical |
Tank capacity |
| m3 | 0.75 |
Chassis | Type |
| 4×2 wheeled |
Front-wheel tread | mm | 1300 adjustable | |
Trailing wheel tread | mm | 1270 adjustable | |
Gear box |
| 3×2+1 | |
Wheelbase | mm | 1985 | |
Front-wheel Model |
| 9.5-24 | |
Trailing Wheel Model |
| 6.0-16 | |
Tire Pressure | MPa | Trailing wheel 0.36 | |
Running speed | Km/H | 2.8-1.9 | |
Oil Tank Capacity | L | 47 | |
Operator |
| 1 Person | |
Qty’/40HC | Sets | 2 | |
