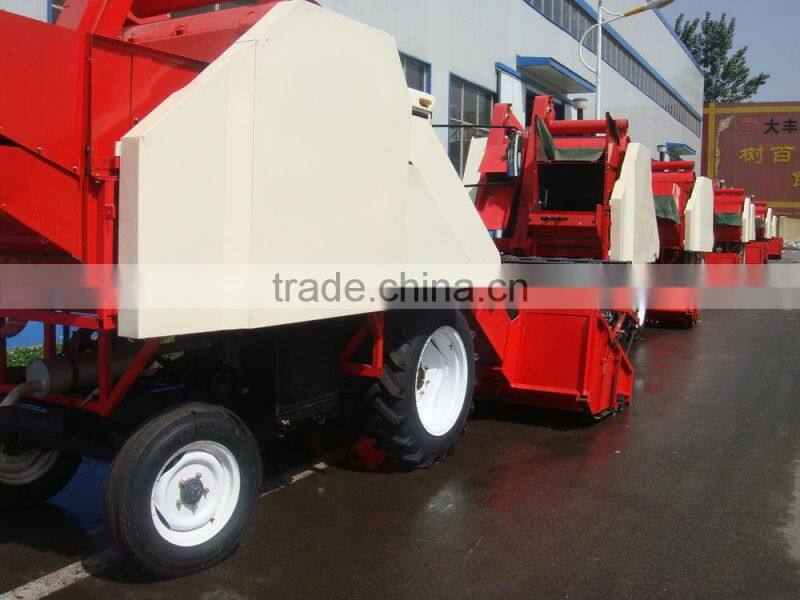

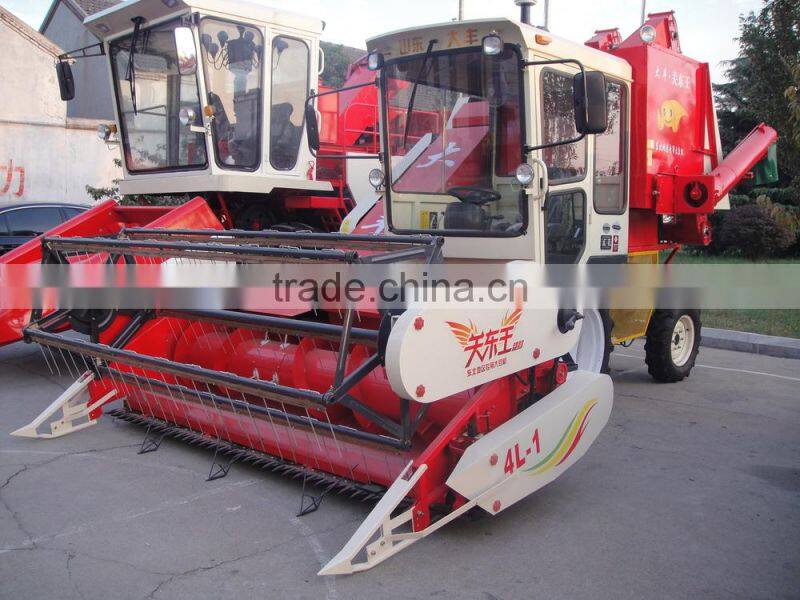

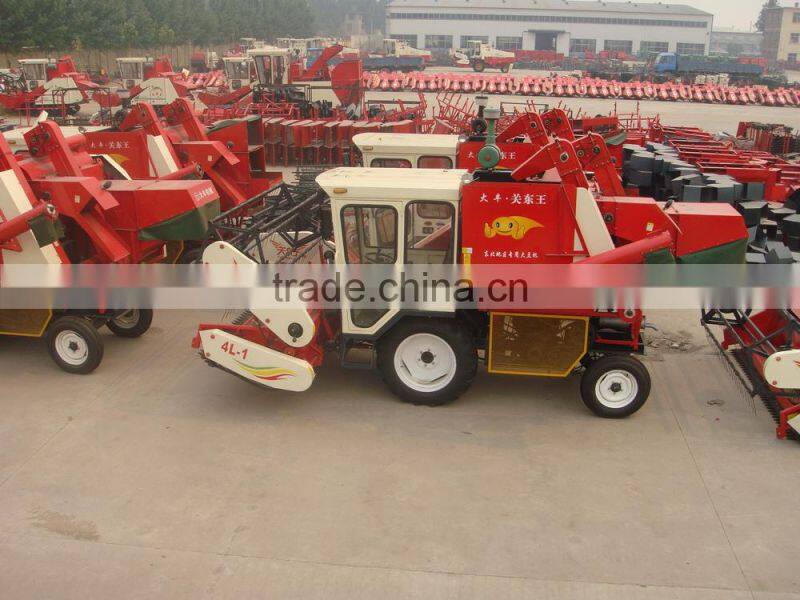

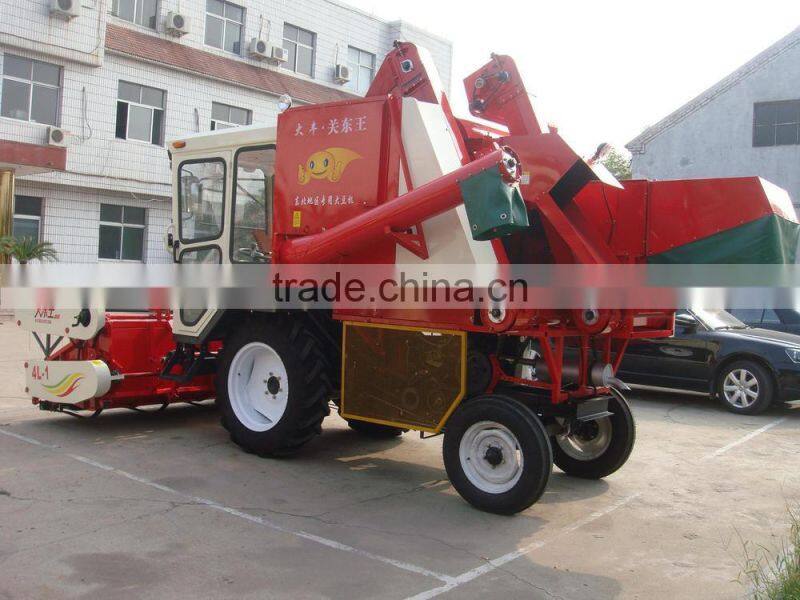

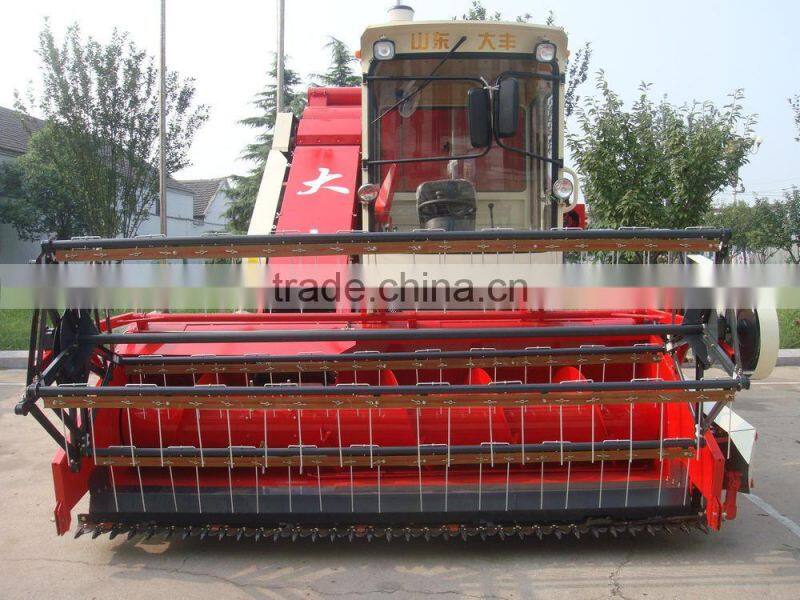

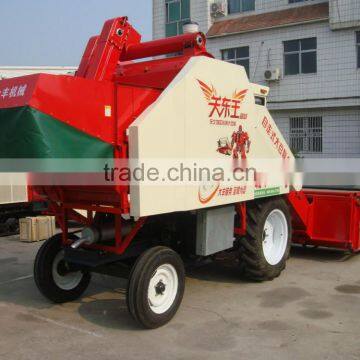

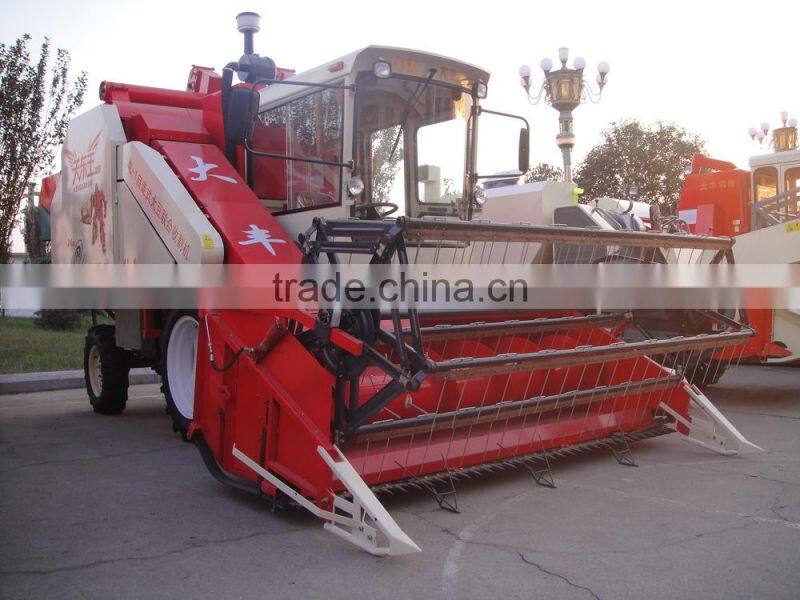

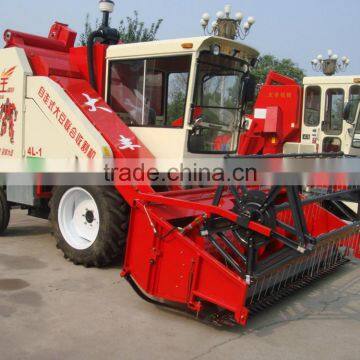

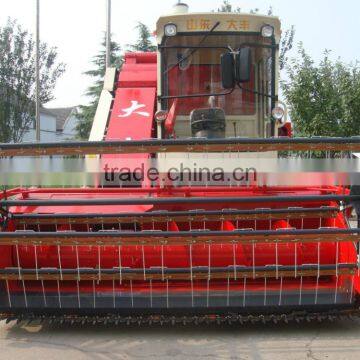

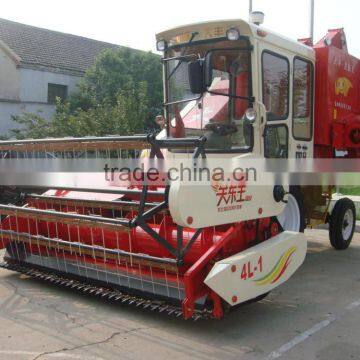

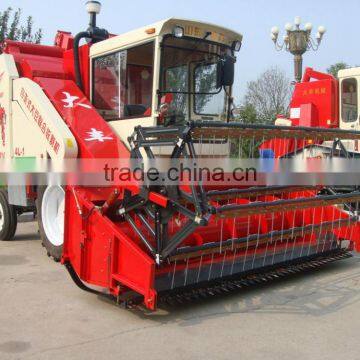

4L-1 soybean combine harvester wheel type self propelled model
Wheel Self-propelled soyabean Combine Harvester
Model: 4L-1
FOB Price: $10800.00/set
Qty’/40HQ: 2 sets
Delivery time: 21 days
Payment term: T/T or L/C
Advantage performance
1. Use of automatic formed floating cutter to ensure lowest harvesting height.
2. Application of double rollers
3. Use of re-threshing device obtains low loss rate and high cleanliness
4. Short time in the machine and shorter threshing roller, increase the quality, color and luster.
5. Stem and skin collected separately, more systematic
Technical specification
Main Performance | |
Loss Rate | ≤3.0% |
Grain Broken Rate | ≤5.0% |
Impurities Rate | ≤5.0% |
Work reliability | ≥90 |
Technical specification sheet | |||
Type |
| Wheel full feed self-propelled | |
Model |
| 4L-1 | |
Cutting Width | mm | 2562 | |
Feed | Kg/s | 0.5-1.0 | |
Running speed | Km/h | 2.48-16 | |
Diesel Engine | Model |
| 4102 |
Power | KW | 48 | |
Rotate Speed | r/min | 2600 | |
Average Oil Consumption per Hectare | Kg/hm² | ≤19 | |
Working Productivity | Hm²/h | 5-10 | |
Total Weight | kg | 3050 | |
Dimension (L×W×H) | mm | 6210 | |
3180 | |||
2930 | |||
Ground Clearance | mm | 315 | |
Header | Reel Type |
| Spring-tined |
Reel Diameter | Mm | Φ900 | |
Reel Bat | Piece | 5 | |
Cross auger Type |
| Screw auger, eccentric extensible link | |
Cross Auger Diameter | mm | Φ500 | |
Clearance between Auger and Bed Plate | mm | 12-20 | |
Cutter bar Stroked | mm | 76.2 | |
Cutter bar Type |
| Domestic standard II | |
Conveyer | Type |
| Flat belt raked tine, forced feed |
Width | mm | 500 | |
Threshing Drum | Type |
| Axial flow rasp bar |
Diameter | mm | Φ480 adjustable | |
Length | mm | 1190 | |
Concave | Type |
| Grid based |
Angle | (°) | 212 | |
Separation Area | m² | 0.96 | |
Sieves | Type |
| Double sieves + fan + re-threshing |
above sieve | m² | 0.56 | |
bottom sieve | m² | 0.7 | |
Fan | Type |
| Retroverted straight-blade centrifugal |
Diameter | mm | Φ420 | |
Grain Auger Diameter × Thread Pitch | mm | Φ125×115 | |
Unloading type |
|
| Mechanical |
Tank capacity |
| m3 | 0.75 |
Chassis | Type |
| 4×2 wheeled |
Front-wheel tread | mm | 1300 adjustable | |
Trailing wheel tread | mm | 1270 adjustable | |
Gear box |
| 3×2+1 | |
Wheelbase | mm | 1985 | |
Front-wheel Model |
| 9.5-24 | |
Trailing Wheel Model |
| 6.0-16 | |
Tire Pressure | MPa | Trailing wheel 0.36 | |
Running speed | Km/H | 2.8-1.9 | |
Oil Tank Capacity | L | 47 | |
Operator |
| 1 Person | |
Qty’/40HC | Sets | 2 | |
