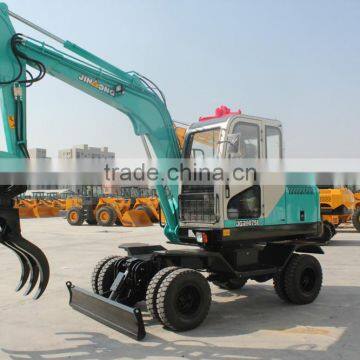

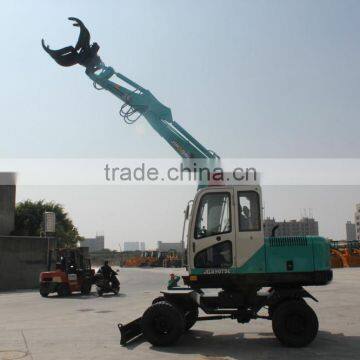

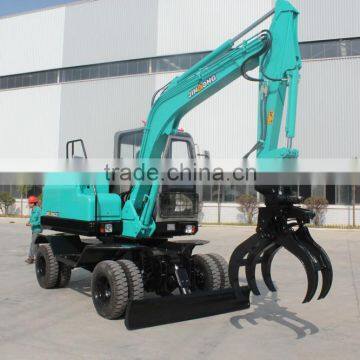

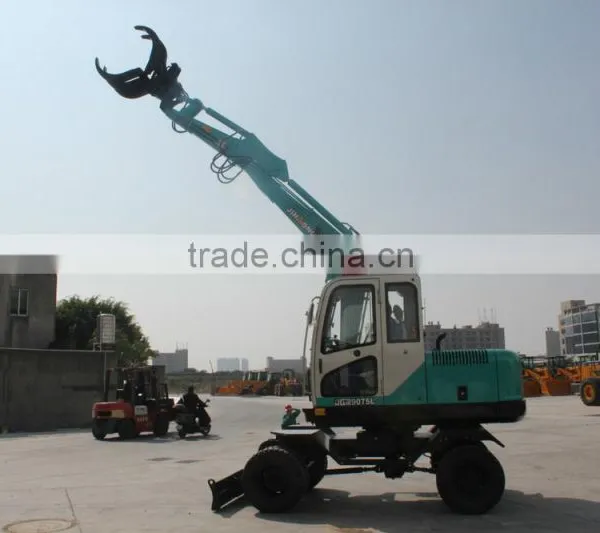

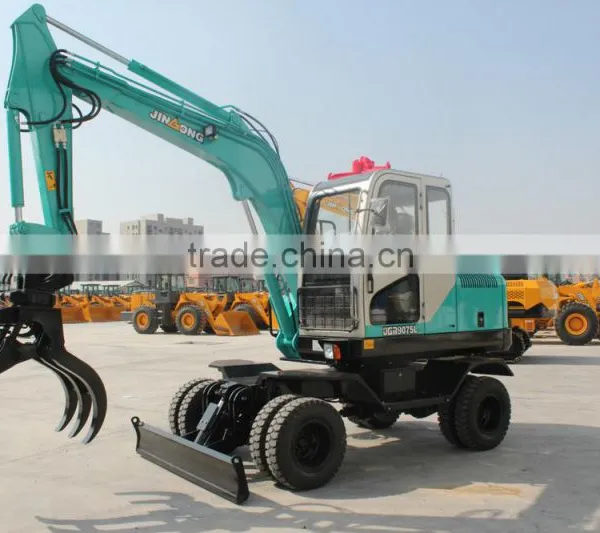

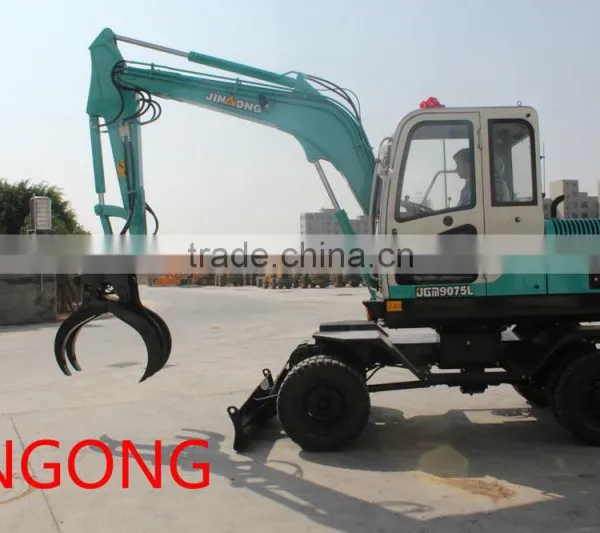

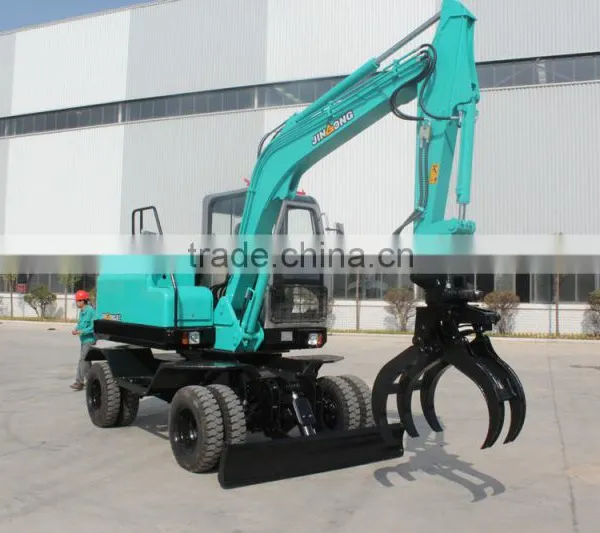

sugarcane loading machine JINGONG JGM9075L
The Performance Characteristics
The dynamic system of high efficiency and energy saving
A498BZG supercharged high-power engine designed for equip on JGM9075L sugarance excavator ,48kw power rating (64ps) at 2300rpm,3.17cc displacement,maximum torsion from 250Nm at 1600 rpm.Fuel consumption compared to save about 1 liter/hour,excellent performance ,reliable in quality.
Unique and excellent operating performance
Profeddionally set-up imported hydraulic main value,grasp action ,at the same time ralize rotary motion and movable arm,arm,grasp the clip rotary speed can reach 6RPM,atcual work efficiency about 45%.
Unique and beautiful appearance
Unique and beautiful metal design,durable environment friendly fashion,with the strength and unity of aeshetic harmony,make the majority of customers trust and favourite.
Model
operating weight |
7000kg |
|
Max.lifting weight |
500kg |
|
Rated lifting weight |
400kg |
|
the size of body | ||
A |
overrall length |
5980mm |
B |
The width of type |
2150mm |
C |
the height of Movable arm |
2790mm |
D |
the width of the turntable |
1900mm |
E |
the height of cab |
2970mm |
F |
Satisfying the height from the ground |
1050mm |
G |
Weight at the top of the height |
1950mm |
H |
Clearance from the ground |
300mm |
I |
tail end swing radius |
1730mm |
J |
wheel loader |
2380mm |
M |
track gauge |
1670mm |
|
width of dozerplate |
2140mm |
the range of Operating | ||
A |
ing height |
7240mm |
B |
max.dumping height |
4520mm |
C |
ing depth |
4110mm |
D |
ing radius |
7100mm |
E |
min.swing radius |
1730mm |
F |
max.dozer height |
515mm |
|
max.dozer depth |
120mm |
|
max.ground pressure
|
49kpa |
|
Max.traction force
|
51kn |
|
Climbing ability |
51% |
|
Rotary speed |
12r/min |
|
driving speed |
30km/h |
