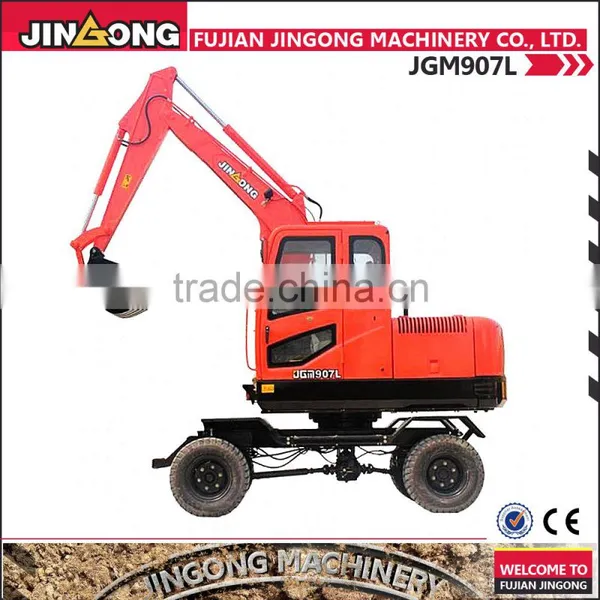

Chinese Supplier JGM907 Mini Wheel Excavator

Name: Chinese Supplier JGM907 Mini Wheel Excavator
Brand: jingong
SKU: 141345400
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

jingong

Model Number:

JGM907L

Fujian Jingong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name jingong

Model Number JGM907L

Condition New

Moving Type Wheel Excavator

Operating Weight 6500kg

Bucket capacity 0.3 m3, 0.3 m3

Maximum Digging Height 6510mm

Maximum Digging Depth 3480mm

Machine Weight 6500kg

Max Digging Radius 6370mm

Rated Speed 5.5km/h

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Chinese supplier JGM907 mini wheel excavator

Specification
Overall weight		6500kg
Bucket capacity		0.3 m³
Track width		400mm
Overall dimention mm
A	Overall length (during transportation)	5970
B	Tyre width	2140
C	Height of boom top	2790
D	Width of turntable	1900
E	Height of driver’s cabin top	2970
F	Ground clearance of balance weight	1050
G	Height of balance weight top	2000
H	Ground clearance	290
I	Tail end swing radius	1730
J	Wheel base	2380
M	Track gauge	1670
	Width of bulldozing plate	2140

Operating Parameters

C	Max. excavating height	6510 mm
D	Max. dumping height	4500 mm
B	Max. excavating depth	3480 mm
A	Max. excavating radius	6370 mm
E	Excavating radius at excavator standing plane	6150 mm
F	Min. swing diameter	2350 mm
H	The excavating height at min. swing height	3250 mm
	Max. bulldozing height	356 mm
	Max. bulldozing depth	125 mm
	Max. excavating force of bucket	45 KN
	Max. ground pressure	49 KPa
	Max. tractive force	51 KN
	Gradeability	27⁰
	Swing speed	9.8 r/mi
	Travel speed	30 km/h
