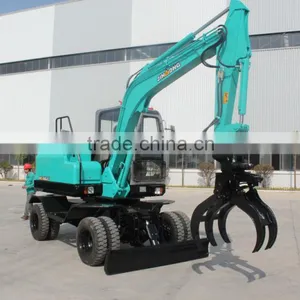

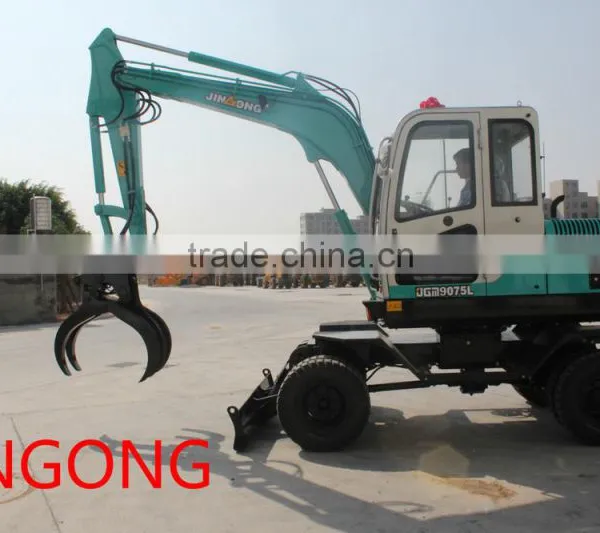

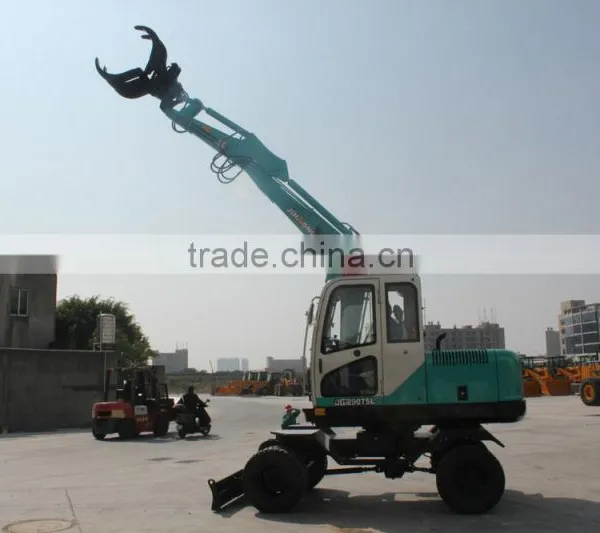

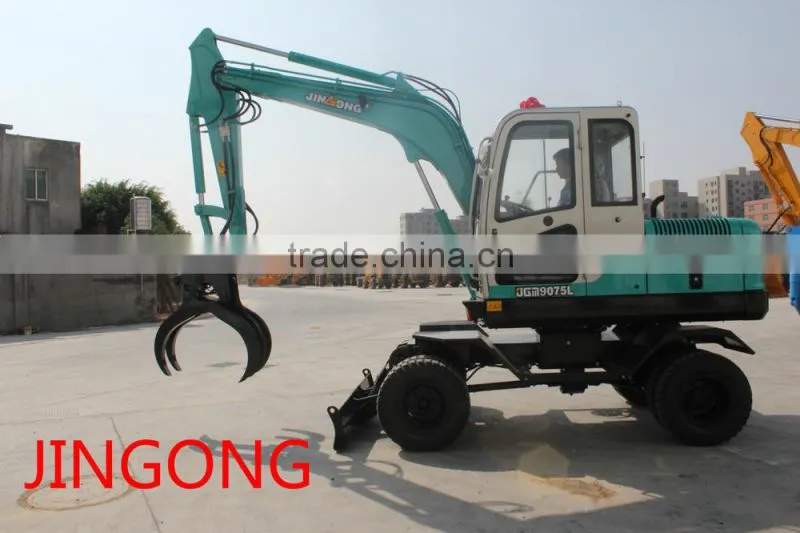

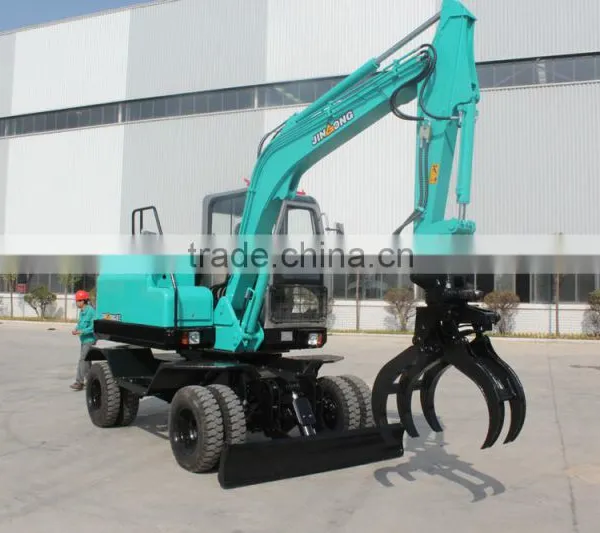

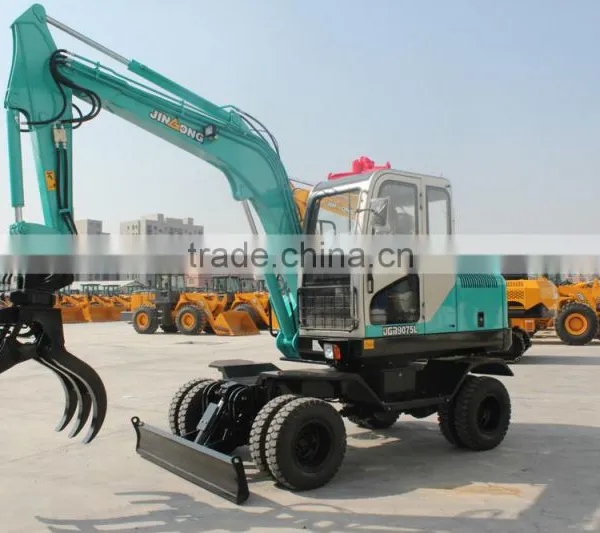

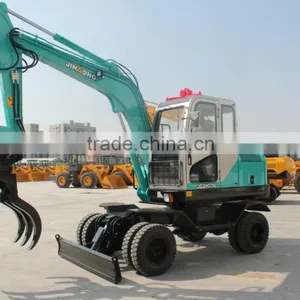

Multifunctional agriculture farming JINGONG JGM9075L wheel excavator
Highly Energy Efficient Power System
1.Engine
(1) The wheeled excavator is powered by a four-cylinder,four-troke,turbocharged engine.Characterized by high horsepower,low fuel onsumption and low displacement,the engine meets Euro II requirement and makes the construction machinery environmental friendly.
(2) An innovative engine cooling system design ensures uniform temperature distribution,allowing the wheeled excavator to work as usual under temperature conditons.
(3)As compared with common counterparts,the digger reduces fuel consumprion by 1L/h.
2. Drive System for the wheeled excavator
Drive axles supplied by a professional vehicle axle manufacter in China. Transmission gearboxes by the Changchun Gear Manufacturing Factory of FAW Car Co.,Ltd Upper and lower transfer cases provided a professional vehicle axle manufacturer in China.Drive system parts are manufactured by Chinese famous brand ,ensuring operation stability of the enrire engineering vehicle.
Safe and Comfortable Operation Environment
The earth moving machinery comes with a deluxe cab design.The shock absorptiom system effectively relieves operatior's fatigue. The large sized glass viewing window provides broader viewing angle.
Innovative and Aesthetical External Design
The wheeled excavator comes with an innovative and aesthetical metal structure design.It is thus highly durable and look fashion ,and is very popular among our customers.
Reliable and Durable Parts
strengthened structural parts and drive parts all undergo stress analysis and fatigue tests,so as to prevent breakage or failure during operation.This is one of the reassons why our wheel excavators have optimized lifespan.
Model | ||
operating weight |
7000kg |
|
Max.lifting weight |
500kg |
|
Rated lifting weight |
400kg |
|
the size of body | ||
A |
overrall length |
5980mm |
B |
The width of type |
2150mm |
C |
the height of Movable arm |
2790mm |
D |
the width of the turntable |
1900mm |
E |
the height of cab |
2970mm |
F |
Satisfying the height from the ground |
1050mm |
G |
Weight at the top of the height |
1950mm |
H |
Clearance from the ground |
300mm |
I |
tail end swing radius |
1730mm |
J |
wheel loader |
2380mm |
M |
track gauge |
1670mm |
|
width of dozerplate |
2140mm |
the range of Operating | ||
A |
ing height |
7240mm |
B |
max.dumping height |
4520mm |
C |
ing depth |
4110mm |
D |
ing radius |
7100mm |
E |
min.swing radius |
1730mm |
F |
max.dozer height |
515mm |
|
max.dozer depth |
120mm |
|
max.ground pressure
|
49kpa |
|
Max.traction force
|
51kn |
|
Climbing ability |
51% |
|
Rotary speed |
12r/min |
|
driving speed |
30km/h |
