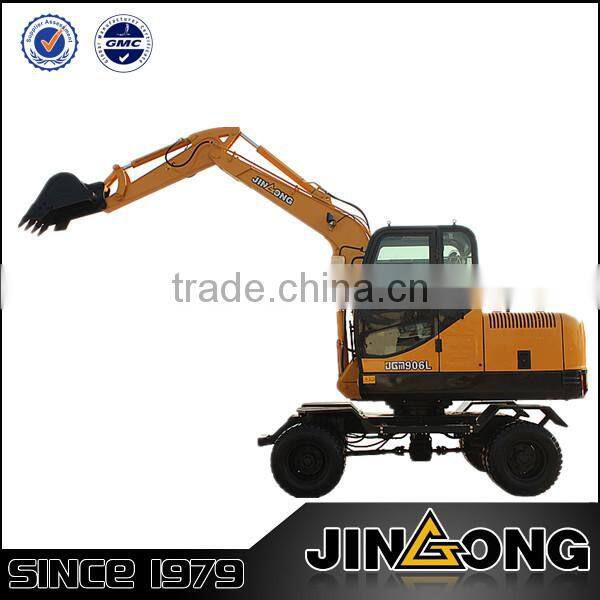

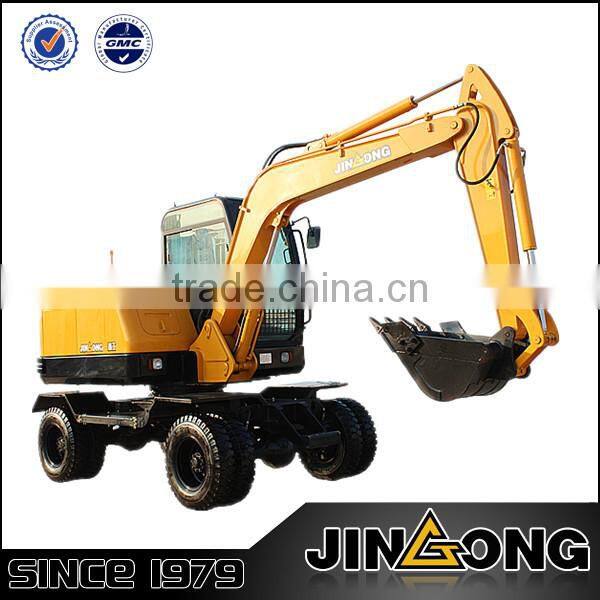

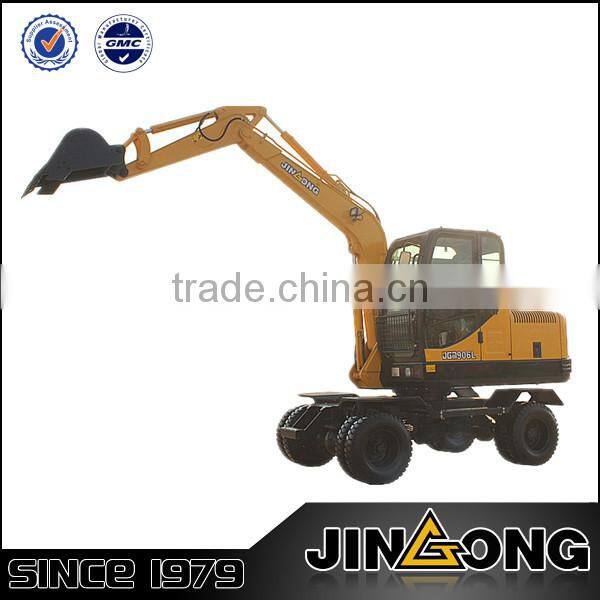

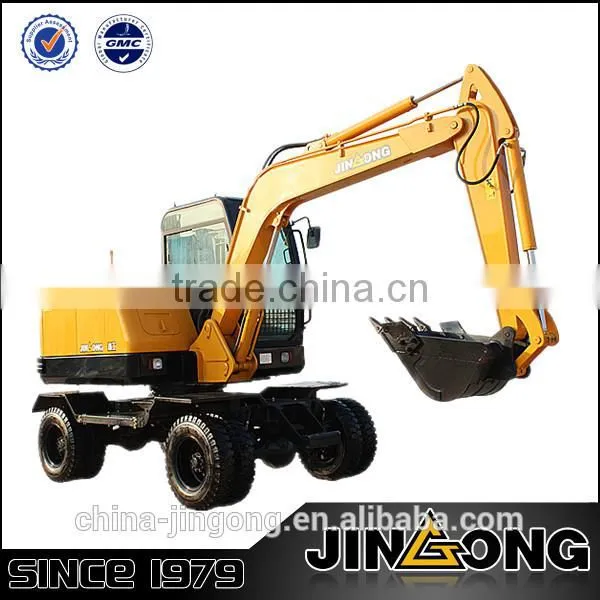

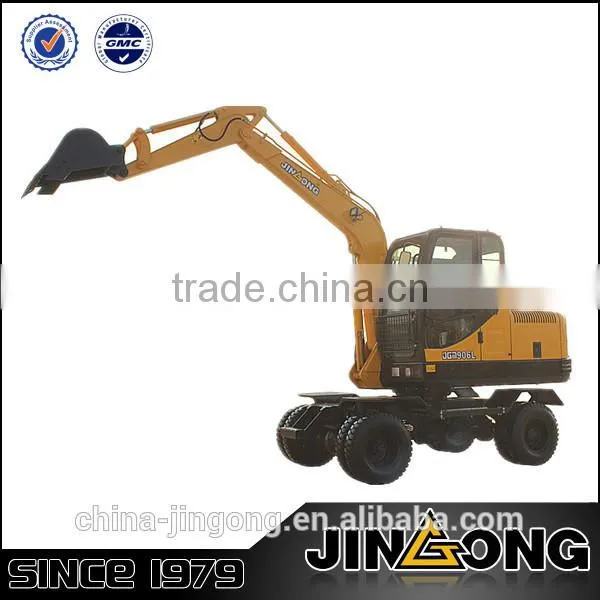

mini wheel excavator JGM907L with 0.25 cub meter bucket capacity
- 5000 Unit / Units per Month
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
- Good Condition HYUNDAI R220LC-9S Used Excavator 22ton Large Crawler Municipal Construction Excavators R 220 210 For Sale
- Used CAT 330D 320D2 crawler excavator CAT 320 CAT330D used excavators used cat 320D excavator
- Hot Selling Good Quality for the mini Used Excavator Doosan DH55 DX75 DX225 Second Hand Excavators/digger
- Cheap second-hand Japanese Carter 320d excavator second-hand Komatsu 20 ton excavator price PC200
- 0.8 ton mini excavator for sale
- Affordable and high-quality of the used CAT 330D 320D2 crawler excavator CAT 320 CAT330D excavators used cat 320D excavator
Product Details
Place of Origin: | Fujian, China | Brand Name: | Jingong | Model Number: | JGM907L |
Condition: | New | Moving Type: | Wheel Excavator | Operating Weight: | 6500kg |
Bucket capacity: | 0.25-0.3m3, 0.25-0.3m3 | Maximum Digging Height: | 6510mm | Maximum Digging Depth: | 3480mm |
Machine Weight: | 6500kg | Max Digging Radius: | 6370mm | Certification: | ISO9000, CE Mark |
Product Description
JGM907L Wheel Excavator
Specification | ||
Overall weight | 6500kg | |
Bucket capacity | 0.3 m3 | |
Track width | 400mm | |
Overall dimention mm | ||
A | Overall length (during transportation) | 5970 |
B | Tyre width | 2140 |
C | Height of boom top | 2790 |
D | Width of turntable | 1900 |
E | Height of driver’s cabin top | 2970 |
F | Ground clearance of balance weight | 1050 |
G | Height of balance weight top | 2000 |
H | Ground clearance | 290 |
I | Tail end swing radius | 1730 |
J | Wheel base | 2380 |
M | Track gauge | 1670 |
| Width of bulldozing plate | 2140 |
Operating Parameters
C | Max. excavating height | 6510 mm |
D | Max. dumping height | 4500 mm |
B | Max. excavating depth | 3480 mm |
A | Max. excavating radius | 6370 mm |
E | Excavating radius at excavator standing plane | 6150 mm |
F | Min. swing diameter | 2350 mm |
H | The excavating height at min. swing height | 3250 mm |
| Max. bulldozing height | 356 mm |
| Max. bulldozing depth | 125 mm |
| Max. excavating force of bucket | 45 KN |
| Max. ground pressure | 49 KPa |
| Max. tractive force | 51 KN |
| Gradeability | 270 |
| Swing speed | 9.8 r/mi |
| Travel speed | 30 km/h |
Engine
Model | Zhejiang Xinchai A498BZG |
Type | 4 cylinders, 4 stroke, direct injectino, turbo charged intercooler, water-cooling |
Cylinder number | cylinder bore x stock 98mmx105mm |
Displacement | 3.17cc |
Rated power | 48KW(60PS) at 2300rpm |
Max. Torque | 250Nm at 1600rpm |
Hydraulic system
Max. flowing | 115 L/min |
Max. working pressure | 20 Mpa |
Swing | 20 Mpa |
Pilot | 2.9 Mpa |
Swing speed | 9.8 r/min |
...
