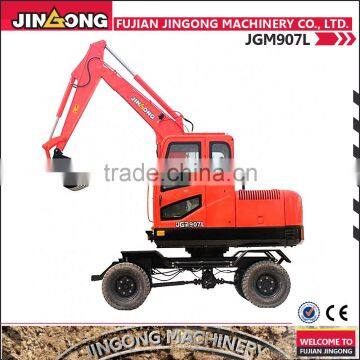

china new hydraulic excavator 7ton JGM907 amphibious excavator for sale
| Specification | ||
Overall weight | 6500kg | |
Bucket capacity | 0.3 m3 | |
Track width | 400mm | |
Overall dimention mm | ||
A | Overall length (during transportation) | 5970 |
B | Tyre width | 2140 |
C | Height of boom top | 2790 |
D | Width of turntable | 1900 |
E | Height of driver’s cabin top | 2970 |
F | Ground clearance of balance weight | 1050 |
G | Height of balance weight top | 2000 |
H | Ground clearance | 290 |
I | Tail end swing radius | 1730 |
J | Wheel base | 2380 |
M | Track gauge | 1670 |
| Width of bulldozing plate | 2140 |
Operating Parameters
C | Max. excavating height | 6510 mm |
D | Max. dumping height | 4500 mm |
B | Max. excavating depth | 3480 mm |
A | Max. excavating radius | 6370 mm |
E | Excavating radius at excavator standing plane | 6150 mm |
F | Min. swing diameter | 2350 mm |
H | The excavating height at min. swing height | 3250 mm |
| Max. bulldozing height | 356 mm |
| Max. bulldozing depth | 125 mm |
| Max. excavating force of bucket | 45 KN |
| Max. ground pressure | 49 KPa |
| Max. tractive force | 51 KN |
| Gradeability | 270 |
| Swing speed | 9.8 r/mi |
| Travel speed | 30 km/h
|
