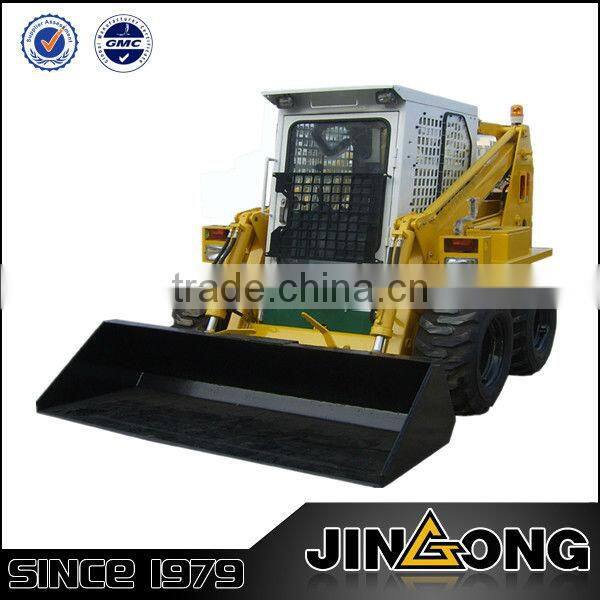

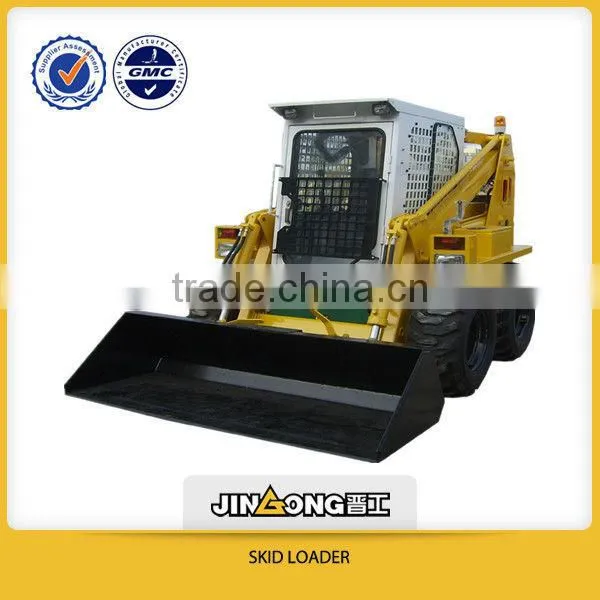

China Bobcat loader, JGM JC80 Skid steer loader with CE and EPA and GOST Series
Specifications |
|
Rated operating capacity(kg) |
1000 |
Tipping load(kg) |
2000 |
Bucket capacity(m3) |
0.5 |
Operationg weight(kg) |
3400 |
Max. travel speed(km/h) |
12 |
Hydraulic pump flow(L/min) |
75 |
Fuel tank capacity(L) |
80 |
Tires |
12/16.5NHS |
Overall dimensions(mm) |
3345×1850×2040 |
Dimensions |
|
Height at maximum extension(mm) |
3780 |
Height to bucket hinge pin(mm) |
3450 |
Width with bucket(mm) |
1900 |
Track width(mm) |
1500 |
Wheelbase(mm) |
1020 |
Ground clearance(mm) |
260 |
Dump angle |
45° |
Dumping height(mm) |
2900 |
Rollback at ground |
26° |
Angle of departure |
20° |
Engine |
|
Maker/Model |
Weichai Deutz |
Net power |
80hp/2500rpm |
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) |
4.2 |
Standard |
|
Deluxe enclosed operator cab |
|
Hydraulic joystick controls |
|
Standard bucket |
|
Prehest starting assist system for extreme cold weather |
|
Auxiliary hydraulic couplers |
|
Optional |
|
Cab fitted with a heater as standard |
|
Air conditioner |
|
2-speed transmission system |
|
|
Attachments:
|
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More |
....
