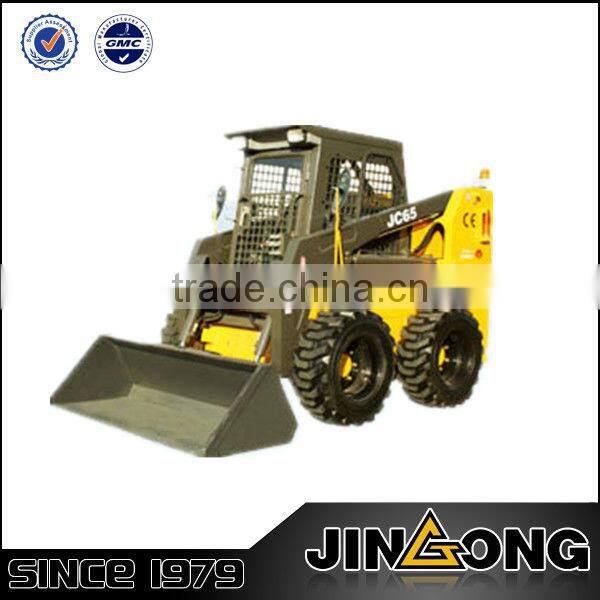

Engine Power 65hp JGM Skid Steer Loader JC65 With CE and EPA and GOST Series

Specifications

Rated operating capacity(kg)

900

Tipping load(kg)

1800

Bucket capacity(m³)

0.5

Operationg weight(kg)

3200

Max. travel speed(km/h)

12

Hydraulic pump flow(L/min)

75

Fuel tank capacity(L)

80

Tires

12/16.5NHS

Overall dimensions(mm)

3440×1820×1700

Dimensions

Height at maximum extension(mm)

3690

Height to bucket hinge pin(mm)

2920

Width with bucket(mm)

1820

Track width(mm)

1500

Wheelbase(mm)

1185

Ground clearance(mm)

260

Dump angle

40°

Dumping height(mm)

2450

Maximum reach(mm)

710

Rollback at ground

26°

Angle of departure

20°

Engine

Maker/Model

Imported UK Perkins

Net power

65hp/2500rpm

Type

4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine

Displacement(L)

3.33

Standard

Standard bucket

Enclosed operator cab

Hydraulic joystick controls

Prehest starting assist system for extreme cold weather

Auxiliary hydraulic couplers

Optional

Cab fitted with a heater as standard

Air conditioner
