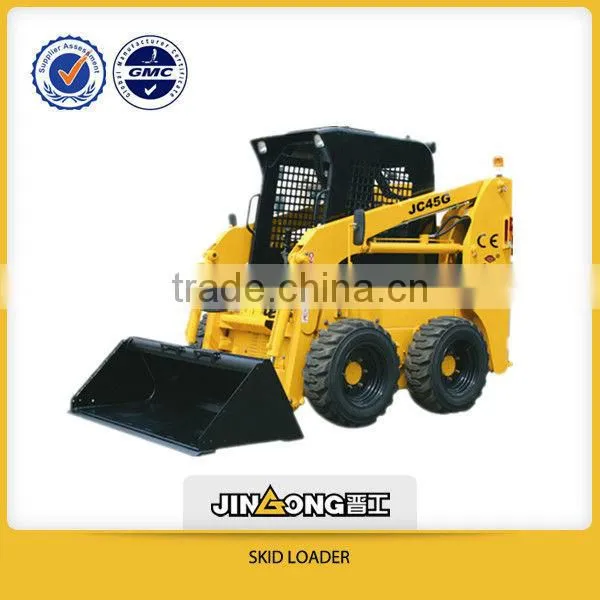

Skid Steer Loader JC45 With Lawn Mower, Break Hammer

Specifications

Rated operating capacity(kg)

700

Tipping load(kg)

1400

Bucket capacity(m³)

0.36-0.45

Operationg weight(kg)

2600

Max. travel speed(km/h)

12

Hydraulic pump flow(L/min)

62.5

Fuel tank capacity(L)

50

Tires

10.0/75-15.3

Overall dimensions(mm)

3200×1740×2030

Dimensions

Height at maximum extension(mm)

3670

Height to bucket hinge pin(mm)

2900

Width with bucket(mm)

1740

Track width(mm)

1450

Wheelbase(mm)

991

Ground clearance(mm)

185

Dump angle

40°

Dumping height(mm)

2310

Maximum reach(mm)

710

Engine

Maker/Model

XINCHAI 490BPG

Net power

50hp/2650rpm

Type

4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine

Displacement(L)

2.54

Standard

Open-type operator cab

Hand control system(Mechanical type)

Standard bucket

Auxiliary hydraulic couplers

Optional

Enclosed operator cab with A/C

Cab fitted with a heater as standard

Hydraulic joystick controls

Attachments:

Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More
