Gold Mining Equipment & Wheel Loader With 3 Cubit Meter Bucket JGM751FT16
- xiamen
- T/T
You May Like
-
4WD Hydraulic Forklift Loader With CE Approved 16ton Fork Truck Mining Machine
-
Hydraulic Forklift Loader JGM751FT16 Capacity Heavy Equipment
-
Fuel Tank Efficient Stone Fork Loader Load JGM751FT16T Can Machine
-
Tractor Shovel Loader Front End Loader JGM751FT16 for Sale
-
Shovel Loader JGM751FT16 for Sales
-
Minng Wheel Loader 3 Ton Mini Farm Tractor Loader JGM751FT16
Product Details
| Place of Origin | Fujian, China | Brand Name | JINGONG | |
| Model Number | JGM751 | After-sales Service Provided | Overseas third-party support available |
Product Description

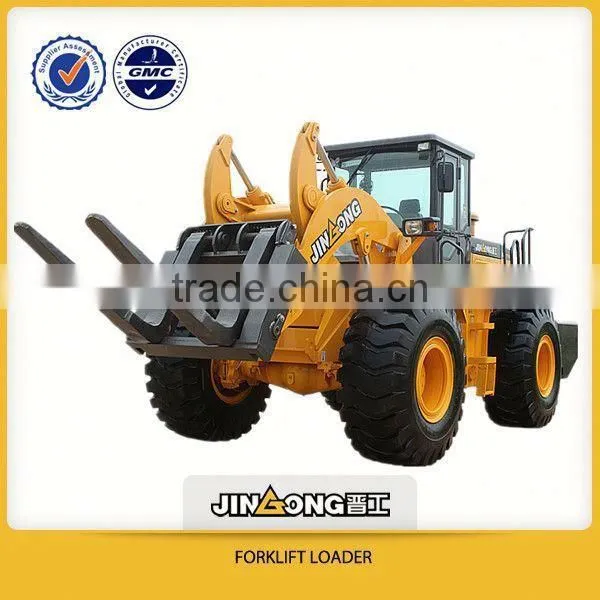

fork loader (JGM 751 )can pick up 16ton marble
Specification:
Main Specification Data | |
Weight | 18500kg |
Rated load | 14000kg |
Rated power | 162kw |
Standard Fork | 1500x200x105mm |
Max-tractive force | 140KN |
Max-breakout force | 140KN |
Max-climbing angle | 26o |
Max height of fork when upgrading | 3300mm |
Max height of fork frame when upgrading | 4470mm |
Max front overhang distance | 1830mm |
Overall dimension (LxWxH) | 7900x2880x3240mm |
Engine | |
Model | Hangfa WD615.61A |
Type | Inline diesel engine with turbo charged direct-injection and dry cylinder liner |
Qty of cylinders-bore x stroke | 6-126X130mm |
Max torque | 860N.m |
Rated power | 162kw |
Rated speed | 2200r/min |
Fuel consumption per hour | ≤225g/kw.h |
Transmission System | |
Torque converter | Single-phase 4-element twin-turbine hydraulic torque converter |
Torque converter coefficient | 4.2 |
Transmission | Planet hydraulic shift |
Gear shift | 2 forward, 1 reverse |
Speed | Forward I: 0-13.5km/h |
Forward II: 0-38km/h | |
Reverse: 0-18km/h | |
Front &Rear Driving Axle | |
Main driving | First gear reduction of helical bevel gear |
Wheel reduction | Planet gear transmission of spur gear |
Driving type | 4 WD |
Wheel base | 3220mm |
Wheel tread | 2880mm |
Tyre type | 23.5-25(24PR) |
Front tyre pressure | 0.475Mpa |
Rear tyre pressure | 0.475Mpa |
Steering System | |
Type | Full hydraulic power steering |
Steering angle | 35o each side |
Min-turning radius | Rear outer wheel center:6750mm |
Body width (tyre peripheral dimensions) | 2880mm |
Hydraulic System | |
System working pressure | 16Mpa |
Boom lifting time | ≤6.1s |
total | ≤12s |
Brake System | |
Service brake | Air over hydraulic disc brake |
Parking brake | Flexible shaft controlled two-shoe internal expansion brake |
Fill capacity | |
Fuel | 220L |
Hydraulic oil | 270L |
Features:
l Four-element dual-turbine torque converter and continuously variable transmission enable powerful traction and stable starting;
l Four-wheel driving, articulated steering, big-diameter engineering tires, featuring super off-road performance and flexible steering ability, big ground clearance of chassis, being suitable for various complicated working conditions;
l Power gearshift, that is highly flexible, easy and convenient;
l Disc brake ensures safe and reliable operation;
l Z-bar linkage mechanism, offer big lifting force in the range from ground to 1.5m high;
lThe cab featuring spacious view and noise reduction vibration isolation; good operating environment
Standard equipment:
·China Hangfa WD615.61A(61561AG223)
·Twin-turbine torque converter
·Planetary power shift transmission
·Jingong driving axle
·Duplex valve: boom &bucket
·Lifting cylinder and tilt cylinder
·Standard boom &bucket
·Deluxe ergonomic seat
·Press disc brake as service brake
·Maintenance-free battery 2*12v
·Front tire 23.5-25(20PR),rear tire 23.5-25(16PR)
Optional equipment:
·Diesel Engine: Weichai WD10G220E1; Shangchai C6121ZG:162KW/2200rpm;
Shangchai 6135k-9b:154.5KW/2200rpm
·Guizhou tire;
·Warm air blower, air conditioner(cooling and heating)
·Protect chain
