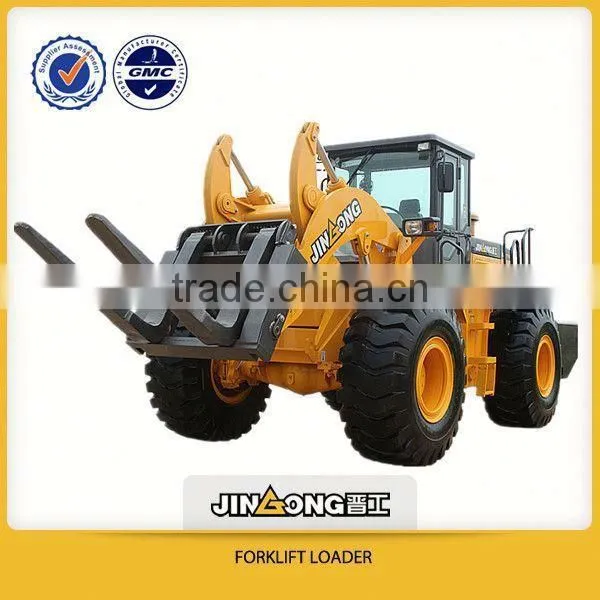

4WD Hydraulic Forklift Loader with CE approved 16ton fork truck mining machine

Name: 4WD Hydraulic Forklift Loader with CE approved 16ton fork truck mining machine
Brand: JINGONG
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 10000 Unit / Units per Month
Port xiamen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Fujian, China	Brand Name:	JINGONG	Model Number:	JGM751
After-sales Service Provided:	Overseas third-party support available

Product Description

fork loader (JGM 751 )can pick up 16ton marble

Specification:

Main Specification Data
Weight	18500kg
Rated load	14000kg
Rated power	162kw
Standard Fork	1500x200x105mm
Max-tractive force	140KN
Max-breakout force	140KN
Max-climbing angle	26^o
Max height of fork when upgrading	3300mm
Max height of fork frame when upgrading	4470mm
Max front overhang distance	1830mm
Overall dimension (LxWxH)	7900x2880x3240mm
Engine
Model	Hangfa WD615.61A
Type	Inline diesel engine with turbo charged direct-injection and dry cylinder liner
Qty of cylinders-bore x stroke	6-126X130mm
Max torque	860N.m
Rated power	162kw
Rated speed	2200r/min
Fuel consumption per hour	≤225g/kw.h
Transmission System
Torque converter	Single-phase 4-element twin-turbine hydraulic torque converter
Torque converter coefficient	4.2
Transmission	Planet hydraulic shift
Gear shift	2 forward, 1 reverse
Speed	Forward I: 0-13.5km/h
	Forward II: 0-38km/h
	Reverse: 0-18km/h
Front &Rear Driving Axle
Main driving	First gear reduction of helical bevel gear
Wheel reduction	Planet gear transmission of spur gear
Driving type	4 WD
Wheel base	3220mm
Wheel tread	2880mm
Tyre type	23.5-25(24PR)
Front tyre pressure	0.475Mpa
Rear tyre pressure	0.475Mpa
Steering System
Type	Full hydraulic power steering
Steering angle	35^o each side
Min-turning radius	Rear outer wheel center:6750mm
Body width (tyre peripheral dimensions)	2880mm
Hydraulic System
System working pressure	16Mpa
Boom lifting time	≤6.1s
total	≤12s
Brake System
Service brake	Air over hydraulic disc brake
Parking brake	Flexible shaft controlled two-shoe internal expansion brake
Fill capacity
Fuel	220L
Hydraulic oil	270L

Features:

l Four-element dual-turbine torque converter and continuously variable transmission enable powerful traction and stable starting;

l Four-wheel driving, articulated steering, big-diameter engineering tires, featuring super off-road performance and flexible steering ability, big ground clearance of chassis, being suitable for various complicated working conditions;

l Power gearshift, that is highly flexible, easy and convenient;

l Disc brake ensures safe and reliable operation;

l Z-bar linkage mechanism, offer big lifting force in the range from ground to 1.5m high;

lThe cab featuring spacious view and noise reduction vibration isolation; good operating environment

Standard equipment:

·China Hangfa WD615.61A(61561AG223)
·Twin-turbine torque converter
·Planetary power shift transmission
·Jingong driving axle
·Duplex valve: boom &bucket
·Lifting cylinder and tilt cylinder
·Standard boom &bucket
·Deluxe ergonomic seat
·Press disc brake as service brake
·Maintenance-free battery 2*12v
·Front tire 23.5-25(20PR),rear tire 23.5-25(16PR)

Optional equipment:

·Diesel Engine: Weichai WD10G220E1; Shangchai C6121ZG:162KW/2200rpm;

Shangchai 6135k-9b:154.5KW/2200rpm

·Guizhou tire;

·Warm air blower, air conditioner(cooling and heating)

·Protect chain
