Product Details
Place of Origin: | Fujian, China | Brand Name: | JINGONG | Model Number: | JGM751FT16 |
After-sales Service Provided: | Overseas third-party support available |
Product Description

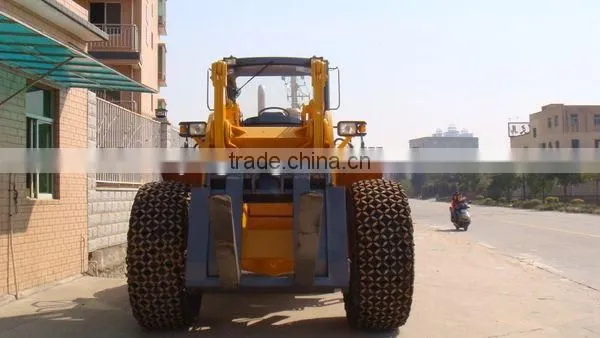

Fuel tank efficient stone fork loader load JGM751FT16T can machine
Main Specification Data | |
Weight | 18500kg |
Rated load | 14000kg |
Rated power | 162kw |
Standard Fork | 1500x200x105mm |
Max-tractive force | 140KN |
Max-breakout force | 140KN |
Max-climbing angle | 26o |
Max height of fork when upgrading | 3300mm |
Max height of fork frame when upgrading | 4470mm |
Max front overhang distance | 1830mm |
Overall dimension (LxWxH) | 7900x2880x3240mm |
Engine | |
Model | Hangfa WD615.61A |
Type | Inline diesel engine with turbo charged direct-injection and dry cylinder liner |
Qty of cylinders-bore x stroke | 6-126X130mm |
Max torque | 860N.m |
Rated power | 162kw |
Rated speed | 2200r/min |
Fuel consumption per hour | ≤225g/kw.h |
Transmission System | |
Torque converter | Single-phase 4-element twin-turbine hydraulic torque converter |
Torque converter coefficient | 4.2 |
Transmission | Planet hydraulic shift |
Gear shift | 2 forward, 1 reverse |
Speed | Forward I: 0-13.5km/h |
Forward II: 0-38km/h | |
Reverse: 0-18km/h | |
Front &Rear Driving Axle | |
Main driving | First gear reduction of helical bevel gear |
Wheel reduction | Planet gear transmission of spur gear |
Driving type | 4 WD |
Wheel base | 3220mm |
Wheel tread | 2880mm |
Tyre type | 23.5-25(24PR) |
Front tyre pressure | 0.475Mpa |
Rear tyre pressure | 0.475Mpa |
Steering System | |
Type | Full hydraulic power steering |
Steering angle | 35o each side |
Min-turning radius | Rear outer wheel center:6750mm |
Body width (tyre peripheral dimensions) | 2880mm |
Hydraulic System | |
System working pressure | 16Mpa |
Boom lifting time | ≤6.1s |
total | ≤12s |
Brake System | |
Service brake | Air over hydraulic disc brake |
Parking brake | Flexible shaft controlled two-shoe internal expansion brake |
Fill capacity | |
Fuel | 220L |
Hydraulic oil | 270L |
Features:
l Four-element dual-turbine torque converter and continuously variable transmission enable powerful traction and stable starting;
l Four-wheel driving, articulated steering, big-diameter engineering tires, featuring super off-road performance and flexible steering ability, big ground clearance of chassis, being suitable for various complicated working conditions;
l Power gearshift, that is highly flexible, easy and convenient;
l Disc brake ensures safe and reliable operation;
l Z-bar linkage mechanism, offer big lifting force in the range from ground to 1.5m high;
lThe cab featuring spacious view and noise reduction vibration isolation; good operating environment
Standard equipment:
·China Hangfa WD615.61A(61561AG223)
·Twin-turbine torque converter
·Planetary power shift transmission
·Jingong driving axle
·Duplex valve: boom &bucket
·Lifting cylinder and tilt cylinder
·Standard boom &bucket
·Deluxe ergonomic seat
·Press disc brake as service brake
·Maintenance-free battery 2*12v
·Front tire 23.5-25(20PR),rear tire 23.5-25(16PR)
Optional equipment:
·Diesel Engine: Weichai WD10G220E1; Shangchai C6121ZG:162KW/2200rpm;
Shangchai 6135k-9b:154.5KW/2200rpm
·Guizhou tire;
·Warm air blower, air conditioner(cooling and heating)

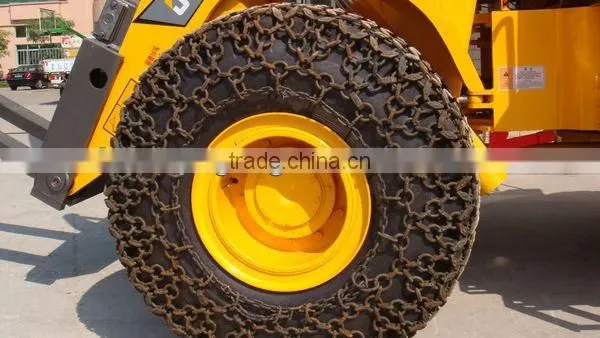

·Protect chain
What about your products quality?
A: Win with reliability! We are top 10 of China Construction machinery manufacturers for wheel loader, top 1 of China
construction machinery manufacturers for forklift loader .From numerous comparison and feedbacks from clients,
quality is more better than some factories.
How to guarantee customers get the goods smoothy after they pay?
A:Don’t worry, dear.we joined the trade assurance.you can place the order by trade assurance.the deposit will given
to Alibaba.If we don’t delivery products on time, the deposit will return to you.
What’s the delivery time?
Generally,for the standard orders,the delivery time is within 15 working days after receiving your advance payment.
Which payment terms can we accept?
Normally we can work on T/T term or L/C term, sometime DP term.
On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against
the copy of original B/L for old client.
On L/C term, a 100% irrevocable L/C without “soft clauses” can be accepted. Please seek the advice from the individual
sales manager whom you work with.
Which INCORTERMS 2010 terms can we work?
JINGONG is a professional and sophisticated international player, can handle all INCORTERMS 2010 terms, and we
normally work on FOB, CFR, CIF, CIP, DAP.
How long will our price be valid?
We are a friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only
adjust our price based on two situations:
The rate of USD: RMB varies significantly according to the international currency exchange rates.
Manufacturers adjusted the machine price, because of the increasing labor cost, and raw material cost.
What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania
and Europe, either by container or RoRo/Bulk shipment.
For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc, we can ship generator set
and engines by road or railway.
For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
After—sales services
1. Spare parts: JINGONG is dedicated to provide our clients with spare parts with highest quality, exact fitness and
appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services. Please
submit your spare request to us, and list products name, model, equipment serial number, description of required parts.
We guarantee that your request will be handled quickly and appropriately.
2. Training: JINGONG offer perfect facilities and comfortable environment and can provide training services to different
users. The training sessions include product training , operating training , maintenance know-how, technical know-how
training , standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs.
Training programs can be conducted in our factory field, or at the client’s site.
3. Technical Advice: JINGONG can also help clients coordinate with trained service personnel to provide you detailed and
extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly
prolonged and sustained with high capatity.
...
