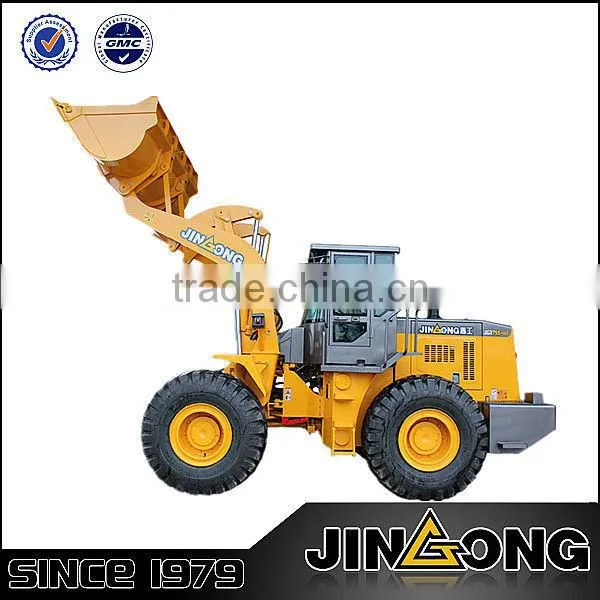

Help CenterWheel Loader Weighing System JGM755k
Related Products
-
Construction Machine ZL50 5ton Wheel Loader JGM755K With 2.7cub Bucket CapacityNegotiableMOQ: 1 Set -
Compact Loader JINGONG LW800K Wheel Loader AxleUS$ 40,000 - 43,000MOQ: 1 Set
-
JinGong 5ton Wheel Loader Mining Machinery CX BackhoeNegotiableMOQ: 1 Set
-
Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High QualityNegotiableMOQ: 1 Set
-
Small JGM758 Wheel Loader,5 T Loader,skip LoaderNegotiableMOQ: 1 Unit
bucket type |
excavating |
|
rated load |
5T |
|
bucket capacity |
2.8m3 |
|
dump clearance@full lift & 45 discharge |
3230mm |
|
reach @full lift & 45 discharge |
1200mm |
|
overall length |
7310mm |
|
overall height |
3240mm |
|
overall width |
2990mm |
|
width over tires |
2840mm |
|
loader clearance radius (bucket in carry position) |
6650mm |
|
operation weight |
16.2T |
|
vehicle speed |
forward 1 |
0~11.5 Km/h |
forward 2 |
0~36 Km/h |
|
reverse |
0~16 Km/h |
|
time of raise |
6.1sec |
|
hydraulic cycle time |
12sec |
|
wheel loader
Standard equipment:
1)Weichai WD615.67G3-28 diesel engine 12sec
2) Dual-turbine hydraulic torque converterhydraulic cycle time
3) Planetary power shift transmission
4) Jingong driving axle
5) Duplex valve: lift arm and bucket
6) Lift cylinder and tilt cylinder
7) Standard lift arm, standard bucket
8) Comfortable seat
9) Disc-type parking brake
10) Battery 2x12V
11) Big counterweight, standard tyres 23.5-25(16PR)
wheel loader weighing system JGM755k
Machine Details:
...
