Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High Quality

Fujian Jingong Machinery Co., Ltd.
Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High Quality thumbnail-1
Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High Quality thumbnail-2
Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High Quality photo-1

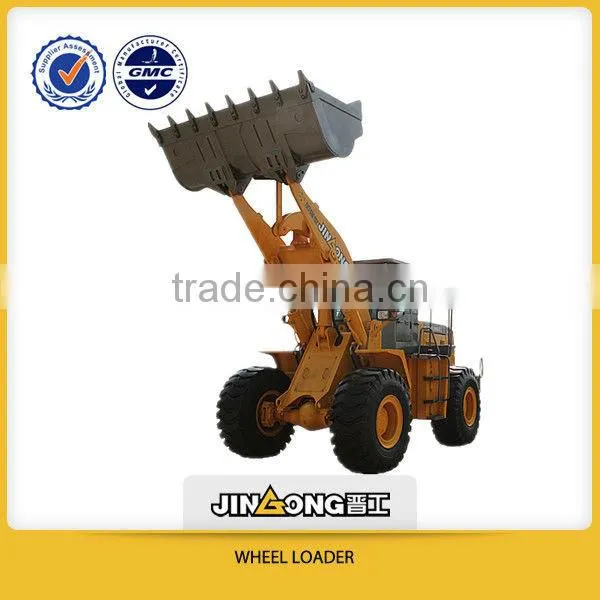

Jinggong Best Product JGM758 Wheel Loader 5 T Loader Skip Loader High Quality photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
JinGong
Model Number:
JGM758
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name JinGong
Model Number JGM758
Place of Origin Fujian, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7782*2990*3410mm
Rated Load 5t
Certification ISO

High-end Front Loader





Performance Features
1. The JGM758 high-end front loader is matched with the WG180 electric control transmission gearbox adopting the German ZF technology. Manufactured by the Hangzhou Advance Gearbox Group, the electric control transmission gearbox employs the flexible and handy electronically controlled hydraulic shift with 4 forward gears and three reverse gears.
2. The front axle is the Meritor C216S drive axle and the rear axle is the C216NZFB swing axle. Both the front and rear axles have large bearing capacity.
3. This type of high-end front loader is equipped with the powerful C6121 turbocharged engine from the Shanghai Diesel Engine.
4. The pilot operation is convenient and efficient, ensuring reliable performance.
5. The forced KD switch of the product boosts the working efficiency.
6. The hydraulic oil cooler makes the product more suitable for working in harsh environment.
7. Owing to the full hydraulic coaxial flow amplifying steering system, the steering operation is more handy, flexible and reliable.

Selectable Unit
1. Dongkang 6CTA8.3 Engine
2. Automatic Centralized Lubrication
3. Automatic Weighing Device
4. Automatic Flat Device for Bucket and the Boom Arm Lifting Limit Device
5. High Dumping Bucket, Extra Large Coal Bucket, Rock Bucket and Others

Specification

ItemParameterUnit
Operating Weight17300kg
Rated Load5000kg
Bucket Capacity2.7m³
Dumping Height3100mm
Dumping Reach1220mm
Max. Traction Force≥150KN
Max. Breakout Force≥170KN
Overall Dimension (L×W×H)7782×2990×3410mm
Boom Lifting Time≤6.3s
Total Cycling Time≤12s
Wheel Base3230mm
Min. Turning Radius (Outer Edge of Bucket)7050mm
Rated Power162kW
Travelling SpeedGear I (Forward/Reverse)0-7/7km/h
Gear II (Forward/Reverse)0-11/11km/h
Gear III (Forward/Reverse)0-23/23km/h
Gear IV (Forward)0-38km/h
Fuel Tank Capacity230L
Hydraulic Oil Tank Capacity270L


Specification of High Dumping Product

ItemStandard BucketCoal BucketExtra Large BucketUnit
Bucket Capacity2.73.64.5m³
Rated Load500050005000kg
Operating Weight175901794818062kg
Dumping Height352033903300mm
Dumping Reach143014901575mm
Overall Length832582658385mm
Min. Turning Radius (Outer Edge of Bucket)716071307190mm
Note: The structure and parameters of the high-end front loader are subject to change due to the technical progress without prior notice. If some information of actual product is at variance with the above description, the actual product shall prevail.

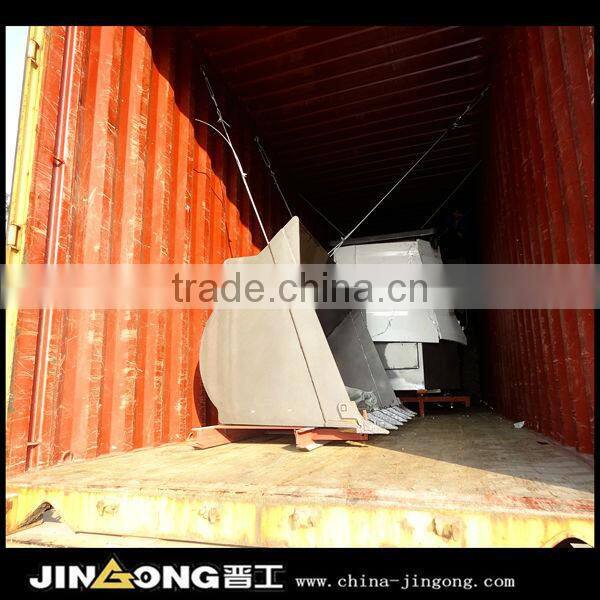

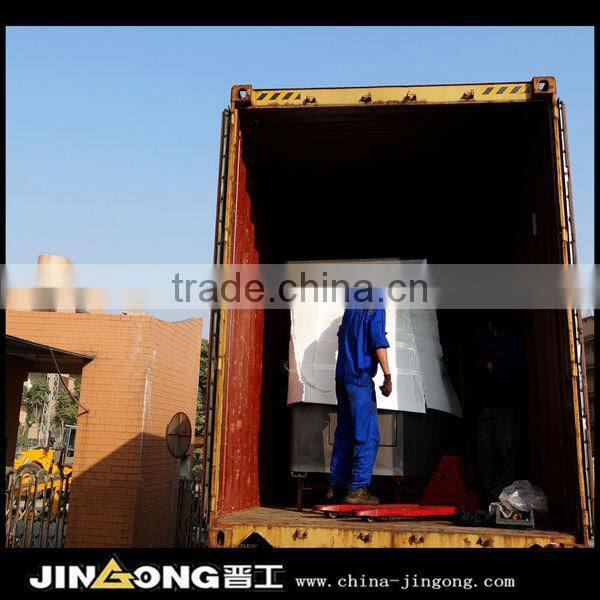

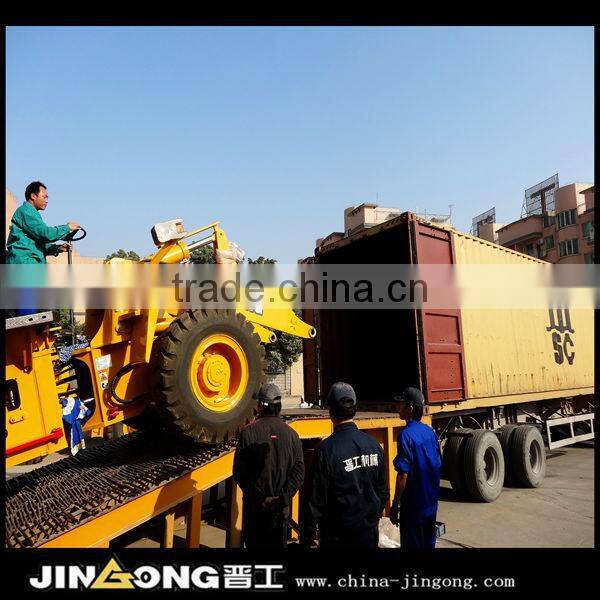

PACKAGE PHOTOES
