Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Small JGM758 Wheel Loader,5 T Loader,skip Loader

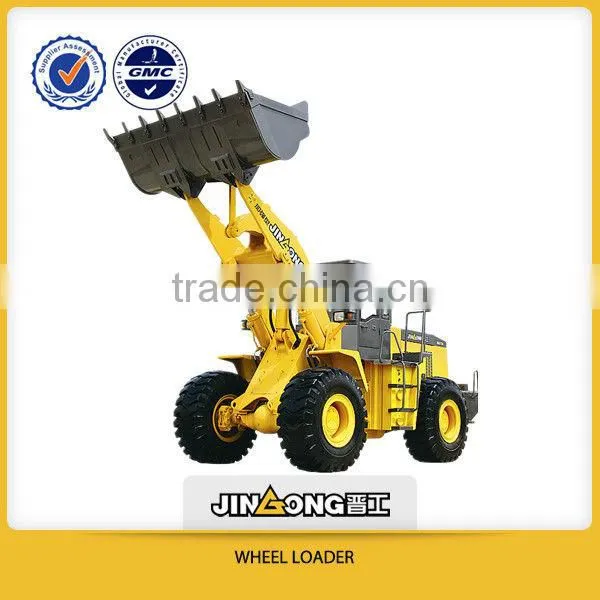

Small JGM758 Wheel Loader,5 T Loader,skip Loader

Name: Small JGM758 Wheel Loader,5 T Loader,skip Loader
Brand: JinGong
SKU: 141344572
Availability: InStock

Small JGM758 Wheel Loader,5 T Loader,skip Loader thumbnail-1

Small JGM758 Wheel Loader,5 T Loader,skip Loader photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

JinGong

Model Number:

JGM758

Contact Supplier Request Quote Chat Now

Fujian Jingong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name JinGong

Model Number JGM758

Place of Origin Fujian, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7782*2990*3410mm

Rated Load 5t

Certification ISO

High-end Front Loader

Performance Features
1. The JGM758 high-end front loader is matched with the WG180 electric control transmission gearbox adopting the German ZF technology. Manufactured by the Hangzhou Advance Gearbox Group, the electric control transmission gearbox employs the flexible and handy electronically controlled hydraulic shift with 4 forward gears and three reverse gears.
2. The front axle is the Meritor C216S drive axle and the rear axle is the C216NZFB swing axle. Both the front and rear axles have large bearing capacity.
3. This type of high-end front loader is equipped with the powerful C6121 turbocharged engine from the Shanghai Diesel Engine.
4. The pilot operation is convenient and efficient, ensuring reliable performance.
5. The forced KD switch of the product boosts the working efficiency.
6. The hydraulic oil cooler makes the product more suitable for working in harsh environment.
7. Owing to the full hydraulic coaxial flow amplifying steering system, the steering operation is more handy, flexible and reliable.

Selectable Unit
1. Dongkang 6CTA8.3 Engine
2. Automatic Centralized Lubrication
3. Automatic Weighing Device
4. Automatic Flat Device for Bucket and the Boom Arm Lifting Limit Device
5. High Dumping Bucket, Extra Large Coal Bucket, Rock Bucket and Others

Specification

Item		Parameter	Unit
Operating Weight		17300	kg
Rated Load		5000	kg
Bucket Capacity		2.7	m³
Dumping Height		3100	mm
Dumping Reach		1220	mm
Max. Traction Force		≥150	KN
Max. Breakout Force		≥170	KN
Overall Dimension (L×W×H)		7782×2990×3410	mm
Boom Lifting Time		≤6.3	s
Total Cycling Time		≤12	s
Wheel Base		3230	mm
Min. Turning Radius (Outer Edge of Bucket)		7050	mm
Rated Power		162	kW
Travelling Speed	Gear I (Forward/Reverse)	0-7/7	km/h
	Gear II (Forward/Reverse)	0-11/11	km/h
	Gear III (Forward/Reverse)	0-23/23	km/h
	Gear IV (Forward)	0-38	km/h
Fuel Tank Capacity		230	L
Hydraulic Oil Tank Capacity		270	L

Specification of High Dumping Product

Item	Standard Bucket	Coal Bucket	Extra Large Bucket	Unit
Bucket Capacity	2.7	3.6	4.5	m³
Rated Load	5000	5000	5000	kg
Operating Weight	17590	17948	18062	kg
Dumping Height	3520	3390	3300	mm
Dumping Reach	1430	1490	1575	mm
Overall Length	8325	8265	8385	mm
Min. Turning Radius (Outer Edge of Bucket)	7160	7130	7190	mm
Note: The structure and parameters of the high-end front loader are subject to change due to the technical progress without prior notice. If some information of actual product is at variance with the above description, the actual product shall prevail.
