best quality gold jig separator

            best quality gold jig separator

  Product  Introduction

      Jigging belongs to the deep groove separation operation, it uses water as separation medium, the proportion of the difference, using the selected minerals in the gangue sorting, jigging machine belongs to the diaphragm, stroke and frequency according to the selected mineral proportion, can be adjusted flexibly, widely used in tungsten, tin, gold sand, hematite, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metal gravity separation. The jig has many models. AM30 jigger jigging machine belongs to large particles.

Working of  principle

       The ore after crushing to the jig feed size range, and then through the feeding device evenly into the jig feed chute, the jig work nowadays pendulum rod in the eccentric linkage mechanism under the action of swinging up and down, through adjusting eccentricity of eccentric shaft to adjust the swing distance under the moving rod, by adjusting the motor speed to adjust the jig at times.
    The pendulum to do regular driving and moving under the upper and lower vertebral eardrum motion swing up and down, and thus the law of jig and the flow fluctuation, due to fluctuating curves generated an eccentric link mechanism for sine wave curve
     The sine wave curve in pulsating flow force is formed in the vertical alternating jig, jig sorting groove of the minerals in the vertical alternating medium flow effect into to re stratification.
     The settling velocity of mineral particles in the flow of the larger density quickly, located in the lower part of the space material layer, and mineral particles of low density in the current settlement speed is slow, in the upper space material has, because of the density difference, low density material is hard to permeate material layer of high density into the lower space
     Therefore, it will enter into the jig material can be divided into two layers of material, heavy mineral concentrate through the screen into the tank, light minerals into the tailings discharged. The material to into the jig, after sorting, and then discharged, formed a continuous jigging process.

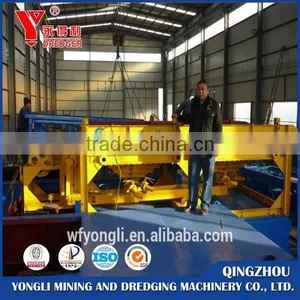

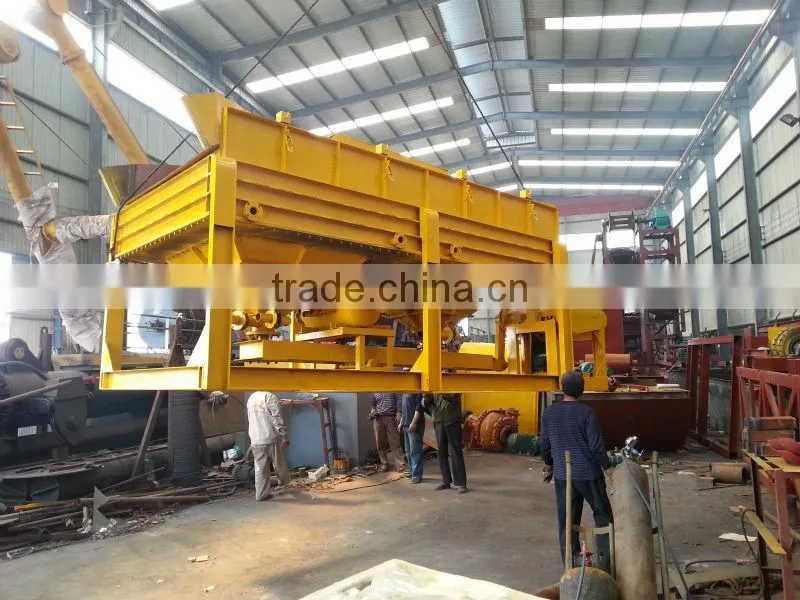

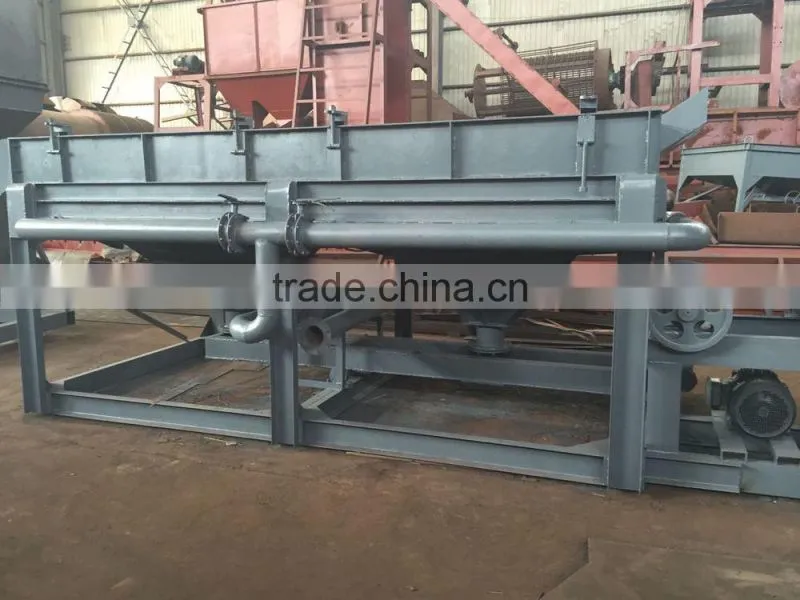

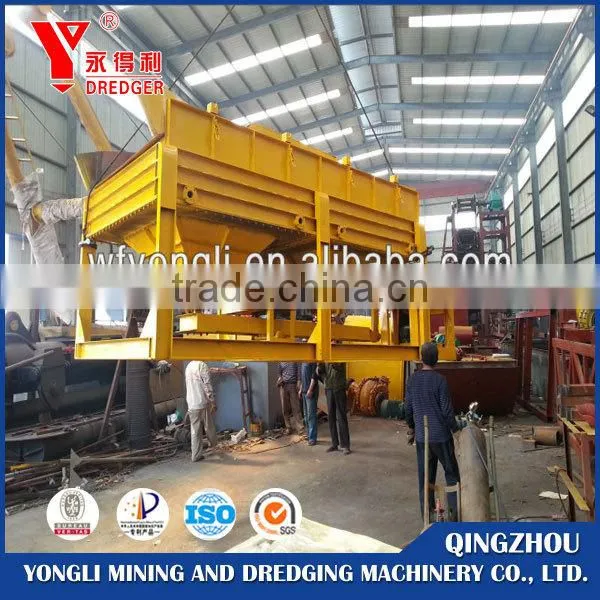

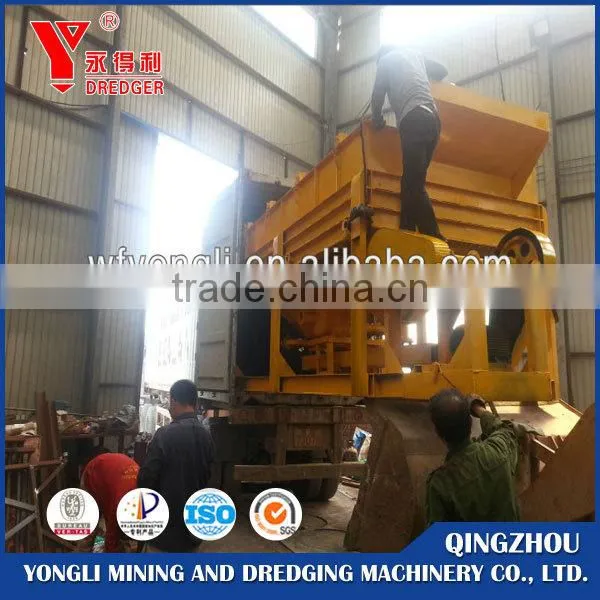

 Product  display

  Specification for our pulse type jig machine

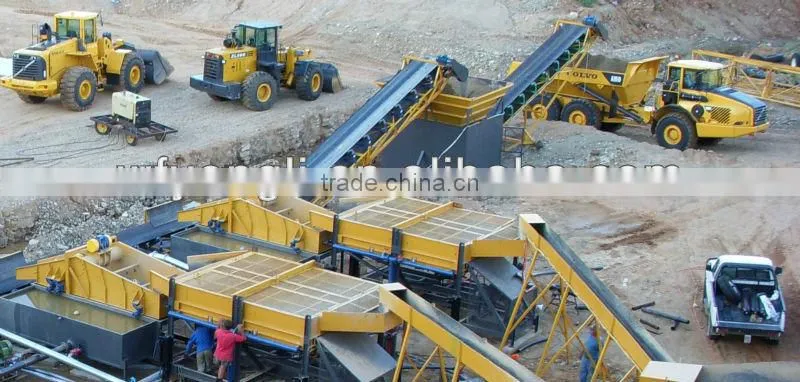

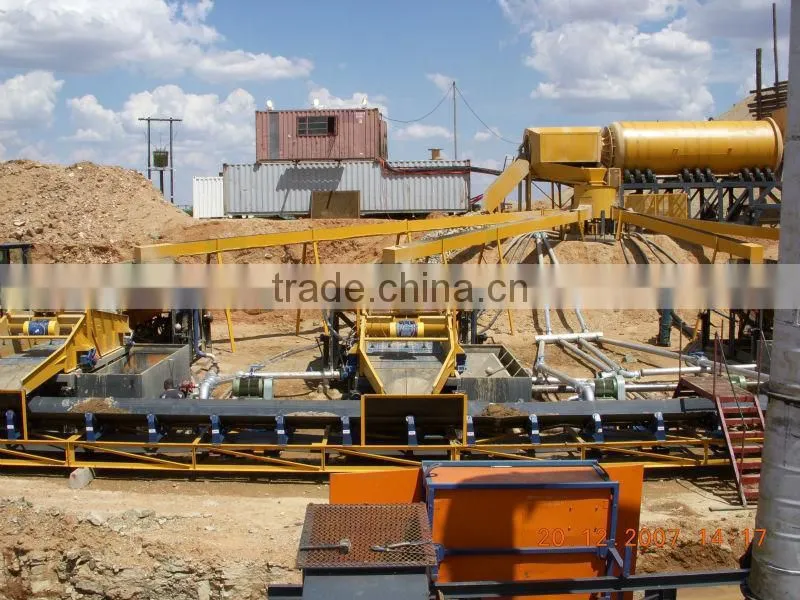

Application of our pulse type jig machine

            We have all kinnds of product except for jigging  machine,For example:Bucket type sand dredger,Cutter suction dredger,Gold and diamond washing plant .

          Please let us know if you need what kind of products ,We will be the best quality service to cooperate with you .
