dry-land gold washing machine
1. Self-introduction of Qingzhou Yongli Mining and Dredging Machinery Co.,Ltd
- Qingzhou Yongli Mining and Dredging Machinery Co.,Ltd ,established in 1996, is a professional manufacturer of sand dredger, sand sieving/washing machine and gold mining equipments.
- Our gold panning device has been exported to Cameroon, Mali, Ghana, Malaysia ,South Africa , Central Africa, Bolivia, Congo and other countries in the world and won high praise of our customers.
- We began to manufacture gold panning device in 2006 and has been dedicated in improving the quality and product line all the time
- Our main gold panning device are: Pulsating/Instigating sluice box, gold Jig, Centrifugal concentrator, Shaking table and so on.
2. Introduction of our gold panning device

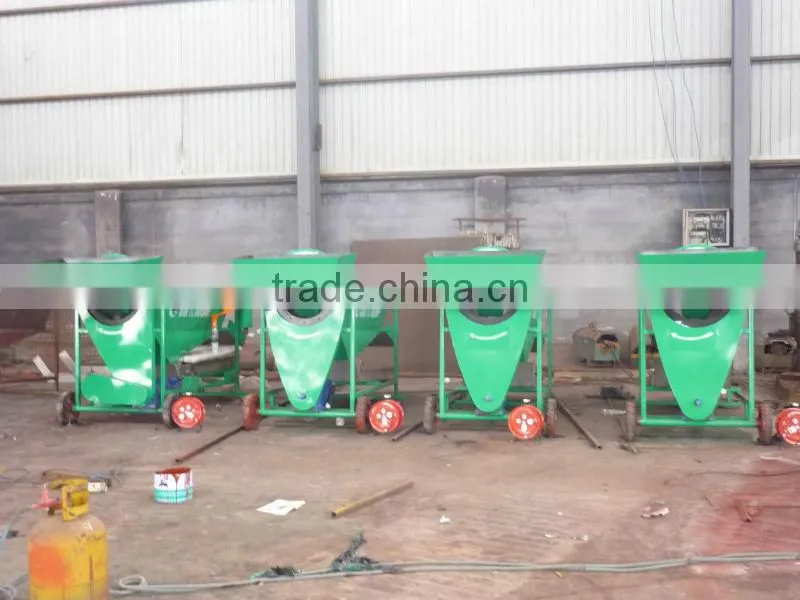

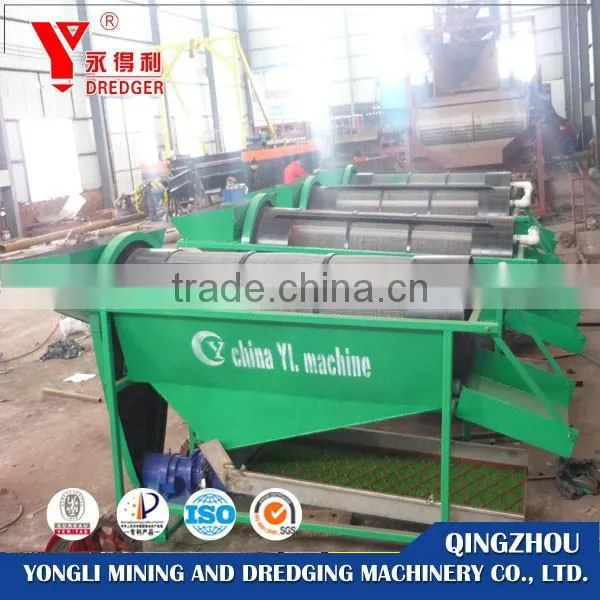

This type of gold panning device is of simple structure but easy to operate. It could be fed by manpower or small excavator. The small screen which is driven by electric motor could separate the stones,gravels and other unwanted things. The sand will go to the sluice chute(with gold carpet) for gold separation.
Our gold panning device is very popular for Africa family miners. It is cheap, easy to move and operate.
3. Main parameter for the gold panning device dry-land gold washing machine
Model |
Dimension(m) |
Feeding Material Size(mm) |
Capacity(T/h) |
Water Flow(m³/h) |
Electric Motor |
Net Weight(Kg) |
|
Type |
Power |
||||||
YLLS-2 |
L2.3*W0.9*H1.5 |
<200mm |
2 |
20 |
Y90S-4-1.3 |
1.3kw |
300 |
YLLS-4 |
L2.5*W1.0*H1.7 |
<300mm |
4 |
25 |
Y90L-4-1.7 |
1.7kw |
350 |

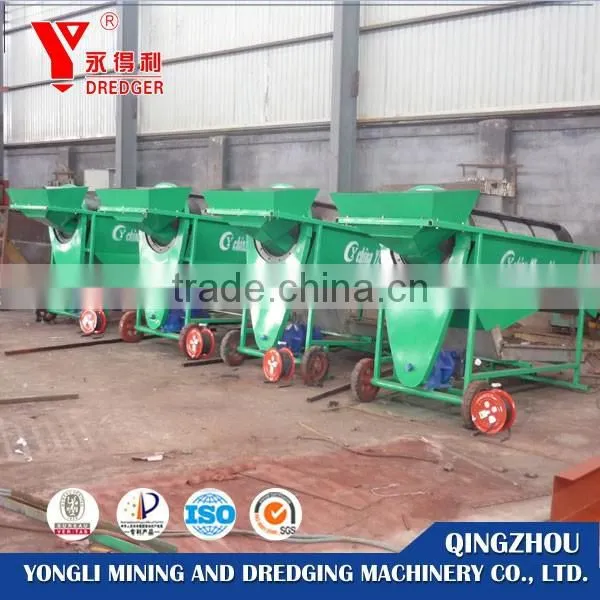

There are four wheels on the small gold panning device which makes it easy to move to different mining areas.
There is water injection pipe in the middle of the round screen. The water could prevent the screen mesh to be stuck by the sand or stones.
4. Our other gold panning device
Pulsating sluice box
Please contact us for the most suitable mining solution for you.
