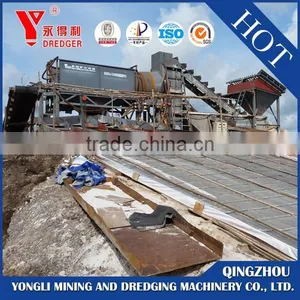

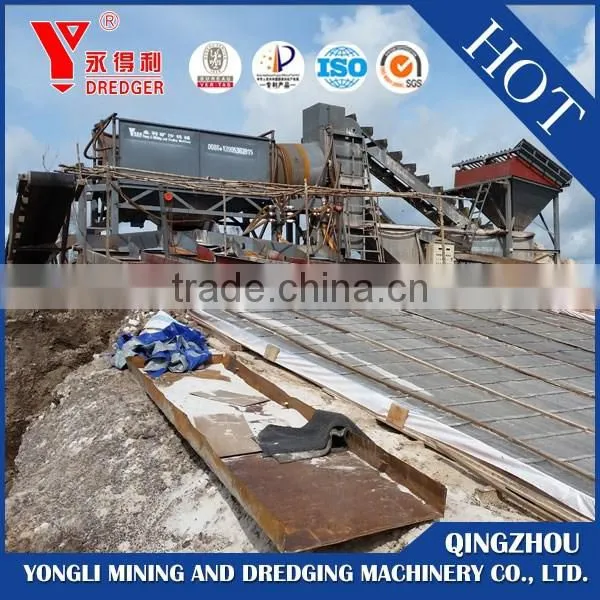

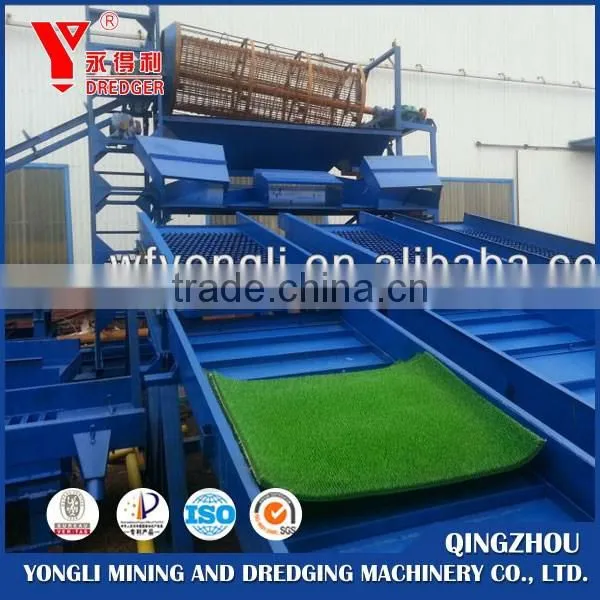

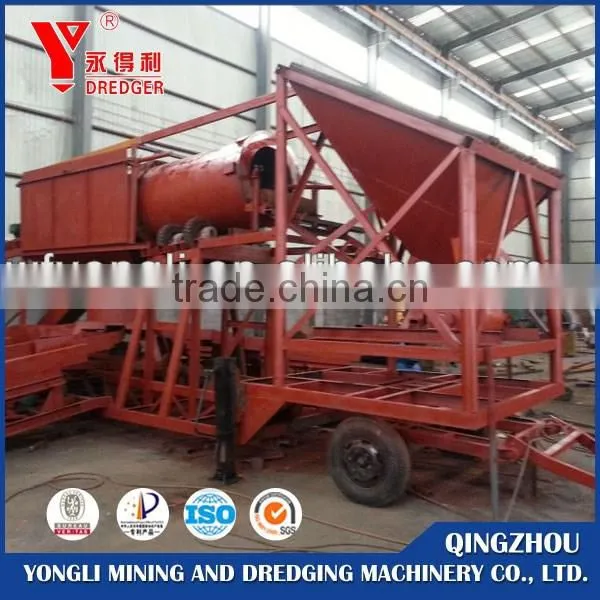

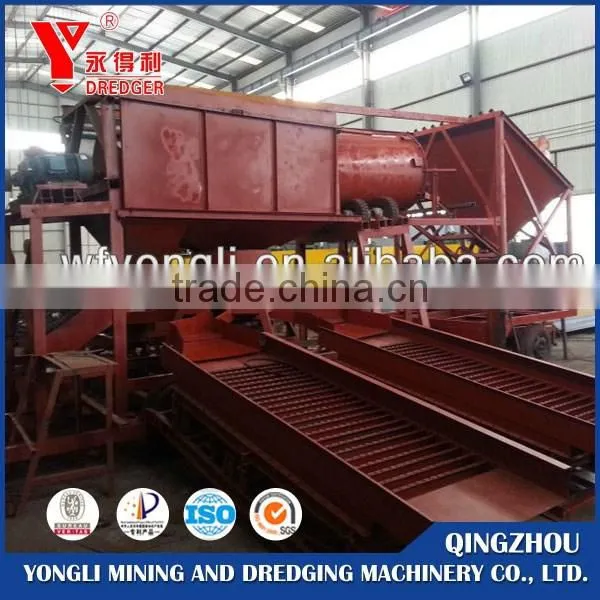

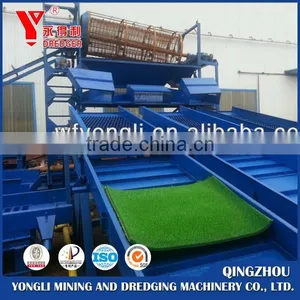

High Efficiency Land Gold Panning/Fossick Equipment
1.SPECIFICATIONS
Item |
Specification |
Trommel Screen | |
Size |
Inner Diameter 1.1m, |
Outer Dimater1.4m | |
Length 5m | |
Trommel |
Length2m Diameter1.1m |
Screen |
Length 2.9mInner |
Diameter1.2 | |
Outer Dimeter1.5m | |
RPH |
18—20r/h |
Gearbox |
Type 400 |
Power |
18.5KW |
Hopper | |
Size |
2800mm×2800mm |
Hopper Steel Plate Thickness |
6mm |
Hopper Support Frame |
114 Round Steel Pipe |
Pulsating Sluice Box | |
Size |
3300mm×1300mm |
Power |
1.1kw |
Capacity |
25-30ton/h |
Ratio of Sands |
30% |
Gearbox |
Type 200 |
Particle Size |
<8mm |
Water Supply System | |
Pump |
150-125-315 |
Flow |
200m³/h |
Head |
32m |
Power |
30kw |
Diving Pump |
4Kw |
Conveyor Belt | |
Size |
Length10m Width6m |
Power |
7.5kw |
Gearbox |
Type 350 |
Diesel Generator |
Diesel Engine |
Generator |
75kw |
2.PRODUCT FEATURES
1.Could be used to gold mine mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball mill grinding, and diamond and zirconium in raw ore.
2.Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated, or the effectiveness will be affected.
3.This set of mining equipments are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separation.
Qingzhou Yongli Mining and Dredging Machinery Co.Ltd, located in Qingzhou city--one of the Nine Ancient Cities in China ,is leading company of China mining equipment .We are the professional manufacture who has been dedicated in R&D ,designing ,producing assembling and testing service.
In 1999, we developed the iron sand dredging machine .
In 2006,we started to manufacture cutter suction dredger .
In 2008,we based on nine terrains in Africa,Southeast Asia and China domestic.The zirconium ,diamond ,gold mining machinery (pulsating sluice box ,centrifugal concentrator ,jigger,shaking table) were developed adopting foreign technology ,and won high praise of customers throughout the world .
At present,we have 8 years experience of export . we are always dedicated to supply our clients with best products and service.
1. Yongli company signs a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide training of operation and maintenance for customers as agreed in the contract.
6. We supply high quality accessories in low price.
